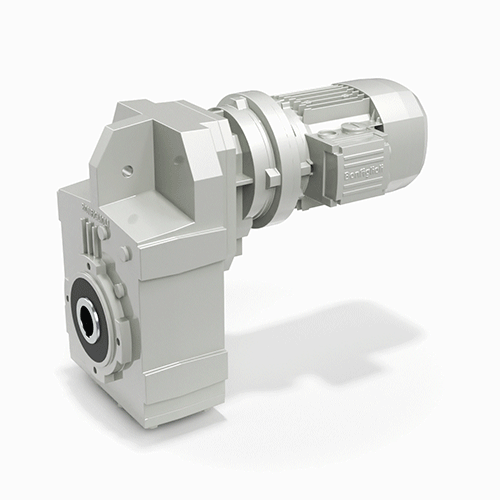

Плоский цилиндрический мотор-редуктор серии F (BONFIGLIOLI)

bonfiglioli f

Общая информация

ООО "Приводные Решения" поставляют на российский рынок
соосно-цилиндрические мотор-редукторы BONFIGLIOLI серии F.
К особенностям данной серии можно отнести:
*плоский корпус редуктора
*возможность установки паралельных цилиндрических выходных валов
*возможность насадить редуктор на вал
*высокий КПД
*низкий уровень шума
*шестерни изготовлены из закаленной или цементированной стали
*редукторы типоразмеров 10, 20, 25 имеют неокрашенные алюминиевые корпуса;
редукторы больших типоразмеров имеют прочный корпус из чугуна, окрашенный порошковой эпоксидной краской

По желанию заказчика редукторы комплектуются следующими типами электродвигателей:
однофазные
трехфазные
электродвигатели со встроенным тормозом
На редукторы серии F можно устанавливать моторы от 0,09 кВт до 55 кВт.

Расшифровка обозначения

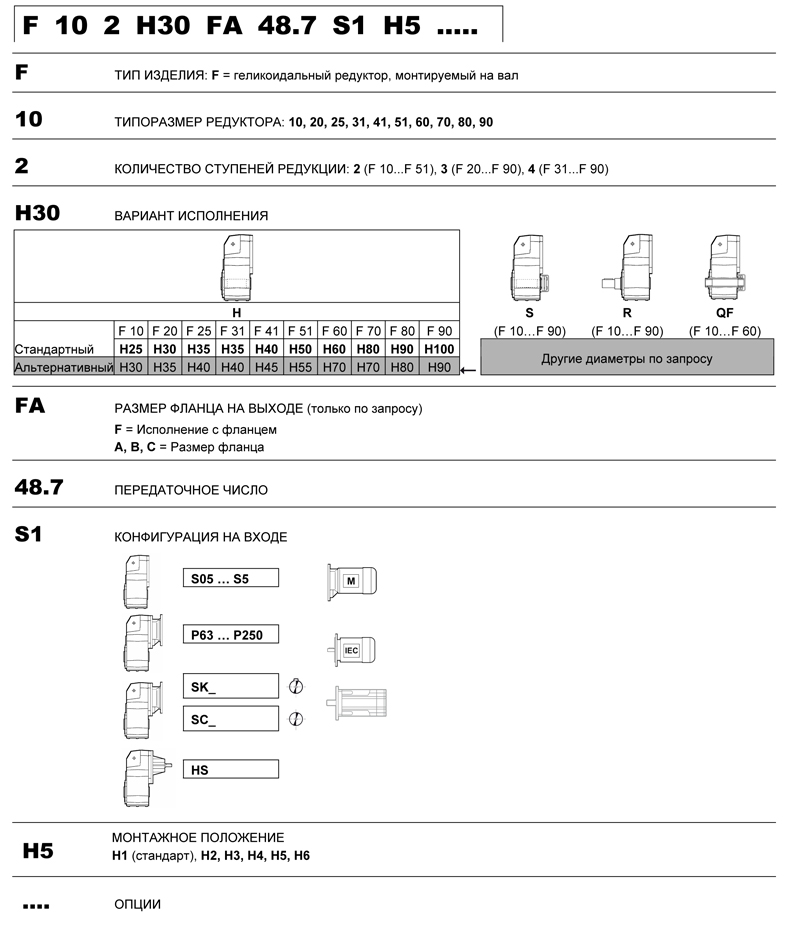

Мотор-редуктор F10 2 H30 FA 48.7 S1 H5...

oboznachenie bonfiglioli f

Таблица максимально-допустимого
момента для редукторов F

Модель	Крутящий момент,Hм	Диаметр выходного вала, мм
F10	140	25
F20	250	30
F25	400	35
F30	550	35
F40	950	40
F50	1600	50
F60	2900	60
F70	5000	80
F80	8000	90
F90	14000	100

Габаритные размеры и масса

*в таблицах указана масса редукторной части, без массы электродвигателя

Тех. Характеристики

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,09	0.40	1945	2.6	2188	35000		F 704 2188 P63 BN63A6
0,09	0.50	1526	3.4	1717	35000		F 704_1717 P63 BN63A6
0,09	0.62	1254	0.9	1411	8500	F 414_1411 S05 M05A6	F 414_1411 P63 BN63A6
0,09	0.73	1079	1.0	1213	8500	F 414_1213 S05 M05A6	F414_1213 P63 BN63A6
0,09	0.81	971	1.1	1092	8500	F 414_1092 S05 M05A6	F 414_1092 P63 BN63A6
0,09	0.90	874	1.3	982.4	8500	F 414_982.4 S05 M05A6	F 414_982.4 P63 BN63A6
0,09	0.98	801	1.4	900.5	8500	F 414_900.5 S05 M05A6	F 414_900.5 P63 BN63A6
0,09	1.1	724	1.5	813.8	8500	F 414 813.8 S05 M05A6	F 414_813.8 P63 BN63A6
0,09	1.2	678	0.9	762.3	6500	F314_762.3 S05 M05A6	F 314_762.3 P63 BN63A6
0,09	1.2	658	1.7	739.4	8500	F 414_739.4 S05 M05A6	F 414_739.4 P63 BN63A6
0,09	1.3	610	1.0	685.6	6500	F 314_685.6 S05 M05A6	F 314_685.6 P63 BN63A6
0,09	1.3	614	1.8	690.1	8500	F 414 690.1 S05 M05A6	F 414_690.1 P63 BN63A6
0,09	1.4	551	1.1	619.9	6500	F 314_619.9 S05 M05A6	F 314_619.9 P63 BN63A6
0,09	1.5	515	1.2	578.6	6500	F 314_578.6 S05 M05A6	F 314_578.6 P63 BN63A6
0,09	1.6	489	2.2	549.8	8500	F 414_549.8 S05 M05A6	F 414_549.8 P63 BN63A6
0,09	1.7	469	0.9	527.3	6500	F 254 527.3 S05 M05A6	F 254_527.3 P63 BN63A6
0,09	1.7	469	1.3	527.8	6500	F 314_527.8 S05 M05A6	F 314_527.8 P63 BN63A6
0,09	1.9	414	1.0	466.0	6500	F 254_466.0 S05 M05A6	F 254_466.0 P63 BN63A6
0,09	1.9	411	1.5	462.6	6500	F 314 462.6 S05 M05A6	F 314 462.6 P63 BN63A6
0,09	2.0	387	1.0	434.9	6500	F 254_434.9 S05 M05A6	F 254_434.9 P63 BN63A6
0,09	2.0	386	2.9	433.7	8500	F 414_433.7 S05 M05A6	F 414_433.7 P63 BN63A6
0,09	2.1	372	1.6	418.9	6500	F 314_418.9 S05 M05A6	F 314_418.9 P63 BN63A6
0,09	2.2	350	1.1	393.9	6500	F 254_393.9 S05 M05A6	F 254_393.9 P63 BN63A6
0,09	2.4	340	1.8	374.4	6500		F 313_374.4 P63 BN63A6
0,09	2.6	302	2.0	332.8	6500		F 313_332.8 P63 BN63A6
0,09	2.6	313	3.5	344.8	8500		F 413_344.8 P63 BN63A6
0,09	2.8	288	0.9	316.9	4000	F 203_316.9 S05 M05A6	F 203_316.9 P63 BN63A6
0,09	3.0	267	2.2	293.8	6500		F 313_293.8 P63 BN63A6
0,09	3.1	259	1.0	285 2	4000	F 203_285.2 S05 M05A6	F 203_285.2 P63 BN63A6
0,09	3.4	232	1.1	255.3	4000	F 203_255.3 S05 M05A6	F 203_255.3 P63 BN63A6
0,09	3.5	230	2.6	253.6	6500		F 313_253.6 P63 BN63A6
0,09	3.9	207	2.9	228.2	6500		F 313_228.2 P63 BN63A6
0,09	4.2	190	1.3	209.3	4000	F 203_209.3 S05 M05A6	F 203_209.3 P63 BN63A6
0,09	4.4	184	3.3	202.3	6500		F 313 202.3 P63 BN63A6
0,09	4.8	168	1.5	184.9	4000	F 203_184.9 S05 M05A6	F 203_184.9 P63 BN63A6
0,09	5.1	157	1.6	172.6	4000	F 203_172.6 S05 M05A6	F 203_172.6 P63 BN63A6
0,09	5.6	142	1.8	156.3	4000	F 203_156.3 S05 M05A6	F 203_156.3 P63 BN63A6
0,09	6.7	123	2.0	132.2	4000	F 202_132.2 S05 M05A6	F 202_132.2 P63 BN63A6
0,09	6.9	118	1.2	127.1	2800	F 102_127.1 S05 M05A6	F 102_127.1 P63 BN63A6
0,09	7.7	106	2.4	114.3	4000	F 202_114.3 S05 M05A6	F 202_114.3 P63 BN63A6
0,09	8.3	98	1.4	106.0	2800	F 102_106.0 S05 M05A6	F 102_106.0 P63 BN63A6
0,09	8.7	94	2.6	101.6	4000	F 202_101.6 S05 M05A6	F 202_101.6 P63 BN63A6
0,09	9.6	85	1.6	91.5	2800	F 102_91.5 S05 M05A6	F 102_91.5 P63 BN63A6
0,09	9.7	84	3.0	90.4	4000	F 202_90.4 S05 M05A6	F 202_90.4 P63 BN63A6
0,09	10.8	75	1.9	81.3	2800	F 102_81.3 S05 M05A6	F 102_81.3 P63 BN63A6
0,09	11.5	71	3.5	76.8	4000	F 202_76.8 S05 M05A6	F 202_76.8 P63 BN63A6
0,09	12.4	66	2.1	71.1	2800	F 102_71.1 S05 M05A6	F 102_71.1 P63 BN63A6
0,09	14.0	58	2.4	63.0	2800	F 102_63.0 S05 M05A6	F 102_63.0 P63 BN63A6
0,09	15.5	53	2.7	56.7	2800	F 102_56.7 S05 M05A6	F 102_56.7 P63 BN63A6
0,09	18.1	45	3.1	48.7	2800	F 102_48.7 S05 M05A6	F 102_48.7 P63 BN63A6
0,09	19.7	41	3.4	44.7	2800	F 102 44.7 S05 M05A6	F 102_44.7 P63 BN63A6
0,09	22.2	37	3.8	39.6	2800	F 102_39.6 S05 M05A6	F 102_39.6 P63 BN63A6
0,09	24.9	33	4.3	35.3	2800	F 102_35.3 S05 M05A6	F 102_35.3 P63 BN63A6
0,09	26.7	31	4.6	33.0	2800	F 102 33.0 S05 M05A6	F 102_33.0 P63 BN63A6
0,09	29.7	28	5.1	29.6	2800	F 102_29.6 S05 M05A6	F 102_29.6 P63 BN63A6
0,09	34	24	5.9	25.8	2800	F 102_25.8 S05 M05A6	F 102_25.8 P63 BN63A6
0,09	39	21	6.6	22.8	2800	F 102_22.8 S05 M05A6	F 102_22.8 P63 BN63A6
0,09	46	18	7.8	19.3	2800	F 102_19.3 S05 M05A6	F 102_19.3 P63 BN63A6
0,09	52	16	8.9	17.0	2800	F 102_17.0 S05 M05A6	F 102_17.0 P63 BN63A6
0,09	60	14	10.1	14.6	2700	F 102_14.6 S05 M05A6	F 102_14.6 P63 BN63A6
0,09	68	12	10.3	13.0	2600	F 102_13.0 S05 M05A6	F 102_13.0 P63 BN63A6
0,09	76	11	10.3	11.5	2500	F 102_11.5 S05 M05A6	F 102_11.5 P63 BN63A6
0,09	90	9	11.8	9.8	2370	F 102_9.8 S05 M05A6	F 102_9.8 P63 BN63A6
0,09	103	8	11.8	8.6	2270	F 102_8.6 S05 M05A6	F 102_8.6 P63 BN63A6
0,09	119	7	13.2	7.4	2160	F 102_7.4 S05 M05A6	F 102_7.4 P63 BN63A6

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,12	0.40	2623	1.9	2188	35000		F 704_2188 P63 BN63B6
0,12	0.51	2058	2.5	1717	35000		F 704_1717 P63 BN63B6
0,12	0.60	1742	2.9	2188	35000		F 704_2188 P63 BN63A4
0,12	0.65	1607	3.1	2019	35000		F 704_2019 P63 BN63A4
0,12	0.76	1368	2.1	1141	20000		F 604_1141 P63 BN63B6
0,12	0.89	1178	0.9	982.4	8500	F 414_982.4 S05 M05B6	F 414_982.4 P63 BN63B6
0,12	0.96	1090	1.0	1411	8500	F 414_1411 S05 M05A4	F 414_1411 P63 BN63A4
0,12	1.1	938	1.2	1213	8500	F 414_1213 S05 M05A4	F 414_1213 P63 BN63A4
0,12	1.2	844	1.3	1092	8500	F 414_1092 S05 M05A4	F 414_1092 P63 BN63A4
0,12	1.4	759	1.4	982.4	8500	F 414_982.4 S05 M05A4	F 414_982.4 P63 BN63A4
0,12	1.5	696	1.6	900.5	8500	F 414_900.5 S05 M05A4	F 414_900.5 P63 BN63A4
0,12	1.6	643	0.9	831.6	6500	F 314_831.6 S05 M05A4	F 314_831.6 P63 BN63A4
0,12	1.7	629	1.7	813.8	8500	F 414_813.8 S05 M05A4	F 414_813.8 P63 BN63A4
0,12	1.8	589	1.0	762.3	6500	F 314_762.3 S05 M05A4	F 314_762.3 P63 BN63A4
0,12	1.8	571	1.9	739.4	8500	F 414_739.4 S05 M05A4	F 414_739.4 P63 BN63A4
0,12	2.0	530	1.1	685.6	6500	F 314_685.6 S05 M05A4	F 314_685.6 P63 BN63A4
0,12	2.0	533	2.1	690.1	8500	F 414_690.1 S05 M05A4	F 414_690.1 P63 BN63A4
0,12	2.2	479	1.3	619.9	6500	F 314_619.9 S05 M05A4	F 314_619.9 P63 BN63A4
0,12	2.3	456	0.9	589.7	6500	F 254_589.7 S05 M05A4	F 254_589.7 P63 BN63A4
0,12	2.3	447	1.3	578.6	6500	F 314_578.6 S05 M05A4	F 314_578.6 P63 BN63A4
0,12	2.5	425	2.6	549.8	8500	F 414_549.8 S05 M05A4	F 414_549.8 P63 BN63A4
0,12	2.6	408	1.0	527.3	6500	F 254_527.3 S05 M05A4	F 254_527.3 P63 BN63A4
0,12	2.6	408	1.5	527.8	6500	F 314_527.8 S05 M05A4	F 314_527.8 P63 BN63A4
0,12	2.9	360	1.1	466.0	6500	F 254_466.0 S05 M05A4	F 254_466.0 P63 BN63A4
0,12	2.9	358	1.7	462.6	6500	F 314_462.6 S05 M05A4	F 314_462.6 P63 BN63A4
0,12	3.1	336	1.2	434.9	6500	F 254_434.9 S05 M05A4	F 254_434,9 P63 BN63A4
0,12	3.1	335	3.3	433.7	8500	F 414_433.7 S05 M05A4	F 414_433.7 P63 BN63A4
0,12	3.2	324	1.9	418.9	6500	F 314_418.9 S05 M05A4	F 314_418.9 P63 BN63A4
0,12	3.4	304	1.3	393.9	6500	F 254_393.9 S05 M05A4	F 254_393.9 P63 BN63A4
0,12	3.6	296	2.0	374.4	6500		F 313_374.4 P63 BN63A4
0,12	4.1	263	1.5	333.1	6500	F 253_333.1 S05 M05A4	F 253_333.1 P63 BN63A4
0,12	4.1	263	2.3	332 8	6500		F 313_332.8 P63 BN63A4
0,12	4.3	250	1.0	316.9	4000	F 203_316.9 S05 M05A4	F 203_316.9 P63 BN63A4
0,12	4.6	232	2.6	293.8	6500		F 313_293.8 P63 BN63A4
0,12	4.7	225	1.1	285.2	4000	F 203_285.2 S05 M05A4	F 203_285.2 P63 BN63A4
0,12	4.7	228	1.8	288.1	6500	F 253_288.1 S05 M05A4	F 253_288.1 P63 BN63A4
0,12	5.3	202	1.2	255.3	4000	F 203_255.3 S05 M05A4	F 203_255.3 P63 BN63A4
0,12	5.3	202	2.0	256.1	6500	F 253_256.1 S05 M05A4	F 253_256.1 P63 BN63A4
0,12	5.3	200	3.0	253.6	6500		F 313_253.6 P63 BN63A4
0,12	5.9	180	2.2	227.8	6500	F 253_227.8 S05 M05A4	F 253_227.8 P63 BN63A4
0,12	5.9	180	3.3	228.2	6500		F 313_228.2 P63 BN63A4
0,12	6.5	165	1.5	209.3	4000	F 203_209.3 S05 M05A4	F 203_209.3 P63 BN63A4
0,12	7.0	153	2.6	193.6	6500	F 253_193.6 S05 M05A4	F 253_193.6 P63 BN63A4
0,12	7.3	146	1.7	184.9	4000	F 203_184.9 S05 M05A4	F 203_184.9 P63 BN63A4
0,12	7.7	138	2.9	174.2	6500	F 253_174.2 S05 M05A4	F 253_174.2 P63 BN63A4
0,12	7.8	136	1.8	172.6	4000	F 203_172.6 S05 M05A4	F 203_172.6 P63 BN63A4
0,12	8.6	123	2.0	156.3	4000	F 203_156.3 S05 M05A4	F 203_156.3 P63 BN63A4
0,12	8.7	123	3.2	155.9	6500	F 253_155.9 S05 M05A4	F 253_155.9 P63 BN63A4
0,12	9.4	113	3.5	143.0	6500	F 253_143.0 S05 M05A4	F 253_143.0 P63 BN63A4
0,12	10.2	107	2.3	132.2	4000	F 202_132.2 S05 M05A4	F 202_132.2 P63 BN63A4
0,12	10.6	103	1.4	127.1	2800	F 102_127.1 S05 M05A4	F 102_127.1 P63 BN63A4
0,12	11.8	92	2.7	114.3	4000	F 202_114.3 S05 M05A4	F 202_114.3 P63 BN63A4
0,12	12.7	86	1.6	106.0	2800	F 102_106.0 S05 M05A4	F 102_106.0 P63 BN63A4
0,12	13.3	82	3.0	101.6	4000	F 202_101.6 S05 M05A4	F 202_101.6 P63 BN63A4
0,12	14.8	74	1.9	91.5	2800	F 102_91.5 S05 M05A4	F 102_91.5 P63 BN63A4
0,12	14.9	73	3.4	90.4	4000	F 202_90.4 S05 M05A4	F 202_90.4 P63 BN63A4
0,12	16.6	66	2.1	81.3	2800	F 102_81.3 S05 M05A4	F 102_81.3 P63 BN63A4
0,12	19.0	57	2.4	71.1	2800	F 102_71.1 S05 M05A4	F 102_71.1 P63 BN63A4
0,12	21.4	51	2.8	63.0	2800	F 102_63.0 S05 M05A4	F 102_63.0 P63 BN63A4
0,12	23.8	46	3.1	56.7	2800	F 102_56.7 S05 M05A4	F 102_56.7 P63 BN63A4
0,12	27.7	39	3.6	48.7	2800	F 102_48.7 S05 M05A4	F 102_48.7 P63 BN63A4
0,12	30	36	3.9	44.7	2800	F 102_44.7 S05 M05A4	F 102_44.7 P63 BN63A4
0,12	34	32	4.4	39.6	2800	F 102_39.6 S05 M05A4	F 102_39.6 P63 BN63A4
0,12	38	29	4.9	35.3	2800	F 102_35.3 S05 M05A4	F 102_35.3 P63 BN63A4
0,12	41	27	5.3	33.0	2800	F 102_33.0 S05 M05A4	F 102_33.0 P63 BN63A4
0,12	46	24	5.9	29.6	2800	F 102_29.6 S05 M05A4	F 102_29.6 P63 BN63A4
0,12	52	21	6.7	25.8	2800	F 102_25.8 S05 M05A4	F 102_25.8 P63 BN63A4
0,12	59	18	7.6	22.8	2700	F 102_22.8 S05 M05A4	F 102_22.8 P63 BN63A4
0,12	70	16	8.7	19.3	2560	F 102_19.3 S05 M05A4	F 102_19.3 P63 BN63A4
0,12	80	14	9.3	17.0	2450	F 102_17.0 S05 M05A4	F 102_17.0 P63 BN63A4
0,12	92	12	10.1	14.6	2340	F 102_14.6 S05 M05A4	F 102_14.6 P63 BN63A4
0,12	104	11	9.9	13.0	2250	F 102_13.0 S05 M05A4	F 102_13.0 P63 BN63A4
0,12	117	9	10.3	11.5	2160	F 102_11.5 S05 M05A4	F 102_11.5 P63 BN63A4
0,12	138	8	11.3	9.8	2050	F 102_9.8 S05 M05A4	F 102_9.8 P63 BN63A4
0,12	157	7	11.8	8.6	1970	F 102_8.6 S05 M05A4	F 102_8.6 P63 BN63A4
0,12	182	6	12.7	7.4	1870	F 102_7.4 S05 M05A4	F 102_7.4 P63 BN63A4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,18	0.41	3804	1.3	2188	35000	F 704_2188 S1 M1SC6	F 704_2188 P71 BN71A6
0,18	0.45	3511	1.4	2019	35000	F 704_2019 S1 M1SC6	F 704_2019 P71 BN71A6
0,18	0.45	3455	2.3	1987	45000	F 804_1987 S1 M1SC6	F 804_1987 P71 BN71A6
0,18	0.49	3189	2.5	1834	45000	F 804_1834 S1 M1SC6	F 804_1834 P71 BN71A6
0,18	0.52	2985	1.7	1717	35000	F 704_1717 S1 M1SC6	F 704_1717 P71 BN71A6
0,18	0.53	2972	2.7	1709	45000	F 804_1709 S1 M1SC6	F 804_1709 P71 BN71A6
0,18	0.57	2756	1.8	1585	35000	F 704_1585 S1 M1SC6	F 704_1585 P71 BN71A6
0,18	0.57	2744	2.9	1578	45000	F 804_1578 S1 M1SC6	F 804_1578 P71 BN71A6
0,18	0.61	2576	1.9	1481	35000	F 704_1481 S1 M1SC6	F 704_1481 P71 BN71A6
0,18	0.65	2406	3.3	1384	45000	F 804_1384 S1 M1SC6	F 804_1384 P71 BN71A6
0,18	0.66	2378	2.1	1368	35000	F 704_1368 S1 M1SC6	F 704_1368 P71 BN71A6
0,18	0.76	2055	2.4	1182	35000	F 704_1182 S1 M1SC6	F 704_1182 P71 BN71A6
0,18	0.77	2030	0.9	1168	12000	F 514_1168 S1 M1SC6	F 514_1168 P71 BN71A6
0,18	0.79	1985	1.5	1141	20000	F 604_1141 S1 M1SC6	F 604_1141 P71 BN71A6
0,18	0.83	1897	2.6	1091	35000	F 704_1091 S1 M1SC6	F 704_1091 P71 BN71A6
0,18	0.84	1861	1.0	1070	12000	F 514_1070 S1 M1SC6	F 514_1070 P71 BN71A6
0,18	0.85	1832	1.6	1054	20000	F 604_1054 S1 M1SC6	F 604_1054 P71 BN71A6
0,18	0.92	1703	1.1	979.4	12000	F 514_979.4 S1 M1SC6	F 514_979.4 P71 BN71A6
0,18	0.92	1694	3.0	974.4	35000	F 704_974.4 S1 M1SC6	F 704_974.4 P71 BN71A6
0,18	0.94	1667	1.7	958.9	20000	F 604_958.9 S1 M1SC6	F 604_958.9 P71 BN71A6
0,18	1.0	1540	1.2	885.5	12000	F 514_885.5 S1 M1SC6	F 514_885.5 P71 BN71A6
0,18	1.0	1539	1.9	885.1	20000	F 604_885.1 S1 M1SC6	F 604_885.1 P71 BN71A6
0,18	1.0	1564	3.2	899.4	35000	F 704_899.4 S1 M1SC6	F 704_899.4 P71 BN71A6
0,18	1.1	1437	1.3	826.4	12000	F 514_826.4 S1 M1SC6	F 514_826.4 P71 BN71A6
0,18	1.1	1430	3.5	822.2	35000	F 704_822.2 S1 M1SC6	F 704_822.2 P71 BN71A6
0,18	1.2	1286	0.9	739.4	8500	F 414_739.4 S1 M1SC6	F 414_739.4 P71 BN71A6
0,18	1.2	1286	0.9	739.4	8500	F 414_739.4 S1 M1SC6	F 414_739.4 P71 BN71A6
0,18	1.3	1200	0.9	690.1	8500	F 414_690.1 S1 M1SC6	F 414_690.1 P71 BN71A6
0,18	1.3	1200	0.9	690.1	8500	F 414_690.1 S1 M1SC6	F 414_690.1 P71 BN71A6
0,18	1.3	1165	0.9	982.4	8500	F 414_982.4 S05 M05B4	F 414_982.4 P63 BN63B4
0,18	1.5	1068	1.0	900.5	8500	F 414_900.5 S05 M05B4	F 414_900.5 P63 BN63B4
0,18	1.6	965	1.1	813.8	8500	F 414_813.8 S05 M05B4	F 414_813.8 P63 BN63B4
0,18	1.8	877	1.3	739.4	8500	F 414_739.4 S05 M05B4	F 414_739.4 P63 BN63B4
0,18	1.9	818	1.3	690.1	8500	F 414_690.1 S05 M05B4	F 414_690.1 P63 BN63B4
0,18	2.3	686	0.9	578.6	6500	F 314_578.6 S05 M05B4	F 314_578.6 P63 BN63B4
0,18	2.4	652	1.7	549.8	8500	F 414_549.8 S05 M05B4	F 414_549.8 P63 BN63B4
0,18	2.5	626	1.0	527.8	6500	F 314_527.8 S05 M05B4	F 314_527.8 P63 BN63B4
0,18	2.9	549	1.1	462.6	6500	F 314_462.6 S05 M05B4	F 314_462.6 P63 BN63B4
0,18	3.0	514	2.1	433.7	8500	F 414_433.7 S05 M05B4	F 414_433.7 P63 BN63B4
0,18	3.2	497	1.2	418.9	6500	F 314_418.9 S05 M05B4	F 314_418.9 P63 BN63B4
0,18	3.4	467	0.9	393.9	6500	F 254_393.9 S05 M05B4	F 254_393.9 P63 BN63B4
0,18	3.5	454	1.3	374.4	6500		F 313_374.4 P63 BN63B4
0,18	3.8	418	2.6	344.8	8500		F 413_344.8 P63 BN63B4
0,18	4.0	404	1.0	333.1	6500	F 253_333.1 S05 M05B4	F 253_333.1 P63 BN63B4
0,18	4.0	403	1.5	332.8	6500		F 313_332.8 P63 BN63B4
0,18	4.5	356	1.7	293.8	6500		F 313_293.8 P63 BN63B4
0,18	4.5	359	3.1	296.6	8500		F 413_296.6 P63 BN63B4
0,18	4.6	349	1.1	288.1	6500	F 253_288.1 S05 M05B4	F 253_288.1 P63 BN63B4
0,18	4.9	323	3.4	266.9	8500		F 413_266.9 P63 BN63B4
0,18	5.2	310	1.3	256.1	6500	F 253_256.1 S05 M05B4	F 253_256.1 P63 BN63B4
0,18	5.2	307	2.0	253.6	6500		F 313_253.6 P63 BN63B4
0,18	5.8	276	1.4	227.8	6500	F 253_227.8 S05 M05B4	F 253_227.8 P63 BN63B4
0,18	5.8	277	2.2	228.2	6500		F 313_228.2 P63 BN63B4
0,18	6.3	254	1.0	209.3	4000	F 203_209.3 S05 M05B4	F 203_209.3 P63 BN63B4
0,18	6.5	245	2.4	202.3	6500		F 313_202.3 P63 BN63B4
0,18	6.8	235	1.7	193.6	6500	F 253_193.6 S05 M05B4	F 253_193.6 P63 BN63B4
0,18	7.1	224	1.1	184.9	4000	F 203_184.9 S05 M05B4	F 203_184.9 P63 BN63B4
0,18	7.1	225	2.7	185.4	6500		F 313_185.4 P63 BN63B4
0,18	7.6	209	1.2	172.6	4000	F 203_172.6 S05 M05B4	F 203_172.6 P63 BN63B4
0,18	7.6	211	1.9	174.2	6500	F 253_174.2 S05 M05B4	F 253_174.2 P63 BN63B4
0,18	7.9	202	3.0	166.8	6500		F 313_166.8 P63 BN63B4
0,18	8.4	189	1.3	156.3	4000	F 203_156.3 S05 M05B4	F 203_156.3 P63 BN63B4
0,18	8.5	189	2.1	155.9	6500	F 253_155.9 S05 M05B4	F 253_155.9 P63 BN63B4
0,18	8.8	183	3.3	150.8	6500		F 313_150.8 P63 BN63B4
0,18	9.2	173	2.3	143.0	6500	F 253_143.0 S05 M05B4	F 253_143.0 P63 BN63B4
0,18	9.4	171	3.5	140.7	6500		F 313_140.7 P63 BN63B4
0,18	10.0	164	1.5	132 2	4000	F 202_132.2 S05 M05B4	F 202_132.2 P63 BN63B4
0,18	10.3	155	2.6	127.8	6500	F 253_127.8 S05 M05B4	F 253_127.8 P63 BN63B4
0,18	10.4	157	0.9	127.1	2800	F 102_127.1 S05 M05B4	F 102_127.1 P63 BN63B4
0,18	11.5	142	1.8	114.3	4000	F 202_114.3 S05 M05B4	F 202_114.3 P63 BN63B4
0,18	11.7	137	2.9	113.0	6500	F 253_113.0 S05 M05B4	F 253_113.0 P63 BN63B4
0,18	12.5	131	1.1	106.0	2800	F 102_106.0 S05 M05B4	F 102_106.0 P63 BN63B4
0,18	12.5	128	3.1	105.4	6500	F 253_105.4 S05 M05B4	F 253_105.4 P63 BN63B4
0,18	13.0	126	2.0	101.6	4000	F 202_101.6 S05 M05B4	F 202_101.6 P63 BN63B4
0,18	13.8	116	3.5	95.5	6500	F 253_95.5 S05 M05B4	F 253_95.5 P63 BN63B4
0,18	14.4	113	1.2	91.5	2800	F 102_91.5 S05 M05B4	F 102_91.5 P63 BN63B4
0,18	14.6	112	2.2	90.4	4000	F 202_90.4 S05 M05B4	F 202_90.4 P63 BN63B4
0,18	16.2	101	1.4	81.3	2800	F 102_81.3 S05 M05B4	F 102_81.3 P63 BN63B4
0,18	17.2	95	2.6	76.8	4000	F 202_76.8 S05 M05B4	F 202_76.8 P63 BN63B4
0,18	18.6	88	1.6	71.1	2800	F 102_71.1 S05 M05B4	F 102_71.1 P63 BN63B4
0,18	19.1	86	2.9	69.1	4000	F 202_69.1 S05 M05B4	F 202_69.1 P63 BN63B4
0,18	21.0	78	1.8	63.0	2800	F 102_63.0 S05 M05B4	F 102_63.0 P63 BN63B4
0,18	21.3	77	3.3	61.9	4000	F 202_61.9 S05 M05B4	F 202_61.9 P63 BN63B4
0,18	23.3	70	2.0	56.7	2800	F 102_56.7 S05 M05B4	F 102_56.7 P63 BN63B4
0,18	27.1	60	2.3	48.7	2800	F 102_48.7 S05 M05B4	F 102_48.7 P63 BN63B4
0,18	29.6	55	2.5	44.7	2800	F 102_44.7 S05 M05B4	F 102_44.7 P63 BN63B4
0,18	33	49	2.9	39.6	2800	F 102_39.6 S05 M05B4	F 102_39.6 P63 BN63B4
0,18	37	44	3.2	35.3	2800	F 102_35.3 S05 M05B4	F 102_35.3 P63 BN63B4
0,18	40	41	3.4	33.0	2800	F 102_33.0 S05 M05B4	F 102_33.0 P63 BN63B4
0,18	45	37	3.8	29.6	2800	F 102_29.6 S05 M05B4	F 102_29.6 P63 BN63B4
0,18	51	32	4.4	25.8	2780	F 102_25.8 S05 M05B4	F 102_25.8 P63 BN63B4
0,18	58	28	5.0	22.8	2680	F 102_22.8 S05 M05B4	F 102_22.8 P63 BN63B4
0,18	68	24	5.7	19.3	2540	F 102_19.3 S05 M05B4	F 102_19.3 P63 BN63B4
0,18	78	21	6.1	17.0	2440	F 102_17.0 S05 M05B4	F 102_17.0 P63 BN63B4
0,18	90	18	6.6	14.6	2330	F 102_14.6 S05 M05B4	F102_14.6 P63 BN63B4
0,18	101	16	6.4	13.0	2240	F 102_13.0 S05 M05B4	F 102_13.0 P63 BN63B4
0,18	114	14	6.7	11.5	2150	F 102_11.5 S05 M05B4	F 102_11.5 P63 BN63B4
0,18	135	12	7.4	9.8	2040	F 102_9.8 S05 M05B4	F 102_9.8 P63 BN63B4
0,18	154	11	7.7	8.6	1960	F 102_8.6 S05 M05B4	F 102 8.6 P63 BN63B4
0,18	178	9	8.3	7.4	1870	F 102_7.4 S05 M05B4	F 102_7.4 P63 BN63B4
0,18	186	9	10.7	14.6	1860	F 102_14.6 S05 M05A2	F 102_14.6 P63 BN63A2
0,18	210	8	10.9	13.0	1790	F 102_13.0 S05 M05A2	F 102_13.0 P63 BN63A2
0,18	237	7	11.3	11.5	1720	F 102_11.5 S05 M05A2	F102_11.5 P63 BN63A2
0,18	279	6	12.5	9.8	1630	F 102_9.8 S05 M05A2	F 102_9.8 P63 BN63A2
0,18	318	5	13.0	8.6	1560	F 102_8.6 S05 M05A2	F 102_8.6 P63 BN63A2
0,18	369	4	14.2	7.4	1490	F 102_7.4 S05 M05A2	F 102_7.4 P63 BN63A2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,25	0.41	5283	0.9	2188	35000	F 704_2188 S1 M1SD6	F 704_2188 P71 BN71B6
0,25	0.45	4877	1.0	2019	35000	F 704_2019 S1 M1SD6	F 704_2019 P71 BN71B6
0,25	0.45	4799	1.7	1987	45000	F 804_1987 S1 M1SD6	F 804_1987 P71 BN71B6
0,25	0.49	4430	1.8	1834	45000	F 804_1834 S1 M1SD6	F 804_1834 P71 BN71B6
0,25	0.52	4146	1.2	1717	35000	F 704_1717 S1 M1SD6	F 704_1717 P71 BN71B6
0,25	0.53	4128	1.9	1709	45000	F 804_1709 S1 M1SD6	F 804_1709 P71 BN71B6
0,25	0.57	3827	1.3	1585	35000	F 704_1585 S1 M1SD6	F 704_1585 P71 BN71B6
0,25	0.57	3810	2.1	1578	45000	F 804_1578 S1 M1SD6	F 804_1578 P71 BN71B6
0,25	0.61	3578	1.4	1481	35000	F 704_1481 S1 M1SD6	F 704_1481 P71 BN71B6
0,25	0.65	3342	2.4	1384	45000	F 804_1384 S1 M1SD6	F 804_1384 P71 BN71B6
0,25	0.66	3303	1.5	1368	35000	F 704_1368 S1 M1SD6	F 704_1368 P71 BN71B6
0,25	0.70	3085	2.6	1277	45000	F 804_1277 S1 M1SD6	F 804_1277 P71 BN71B6
0,25	0.76	2854	1.8	1182	35000	F 704_1182 S1 M1SD6	F 704_1182 P71 BN71B6
0,25	0.79	2757	1.1	1141	20000	F 604_1141 S1 M1SD6	F 604_1141 P71 BN71B6
0,25	0.79	2769	2.9	1146	45000	F 804_1146 S1 M1SD6	F 804_1146 P71 BN71B6
0,25	0.83	2635	1.9	1091	35000	F 704_1091 S1 M1SD6	F 704_1091 P71 BN71B6
0,25	0.85	2545	1.1	1054	20000	F 604_1054 S1 M1SD6	F 604_1054 P71 BN71B6
0,25	0.85	2556	3.1	1058	45000	F 804_1058 S1 M1SD6	F 804_1058 P71 BN71B6
0,25	0.92	2353	2.1	974.4	35000	F 704_974.4 S1 M1SD6	F 704_974.4 P71 BN71B6
0,25	0.94	2316	1.3	958.9	20000	F 604_958.9 S1 M1SD6	F 604_958.9 P71 BN71B6
0,25	1.0	2138	1.4	885.1	20000	F 604_885.1 S1 M1SD6	F 604_885.1 P71 BN71B6
0,25	1.0	2172	2.3	899.4	35000	F 704_899.4 S1 M1SD6	F 704_899.4 P71 BN71B6
0,25	1.1	1996	0.9	826.4	12000	F 514_826.4 S1 M1SD6	F 514_826.4 P71 BN71B6
0,25	1.1	1986	2.5	822.2	35000	F 704_822.2 S1 M1SD6	F 704_822.2 P71 BN71B6
0,25	1.3	1633	1.1	676 3	12000	F 514_676.3 S1 M1SD6	F 514_676.3 P71 BN71B6
0,25	1.4	1600	1.8	662.4	20000	F 604_662.4 S1 M1SD6	F 604_662.4 P71 BN71B6
0,25	1.4	1588	3.1	657.4	35000	F 704_657.4 S1 M1SD6	F 704_657.4 P71 BN71B6
0,25	1.5	1477	2.0	611.4	20000	F 604_611.4 S1 M1SD6	F 604 611.4 P71 BN71B6
0,25	1.5	1466	3.4	606.8	35000	F 704_606.8 S1 M1SD6	F 704_606.8 P71 BN71B6
0,25	1.7	1282	0.9	813.8	8500	F 414_813.8 S05 M05C4	F 414_813.8 P71 BN71A4
0,25	1.8	1199	0.9	739.4	8500	F 414_739.4 S05 M05C4	F 414_739.4 P71 BN71A4
0,25	1.9	1119	1.0	690.1	8500	F 414_690.1 S05 M05C4	F 414_690.1 P71 BN71A4
0,25	2.4	892	1.2	549.8	8500	F 414_549.8 S05 M05C4	F 414_549.8 P71 BN71A4
0,25	2.8	783	2.3	317.3	12000	F 513_317.3 S1 M1SD6	F 513_317.3 P71 BN71B6
0,25	3.1	704	1.6	433.7	8500	F 414_433.7 S05 M05C4	F 414_433.7 P71 BN71A4
0,25	3.2	679	0.9	418.9	6500	F 314_418.9 S05 M05C4	F 314_418.9 P71 BN71A4
0,25	3.7	603	1.0	374.4	6500		F 313_374.4 P71 BN71A4
0,25	4.0	555	2.0	344.8	8500		F 413_344.8 P71 BN71A4
0,25	4.1	536	1.1	332.8	6500		F 313_332.8 P71 BN71A4
0,25	4.7	473	1.3	293.8	6500		F 313_293.8 P71 BN71A4
0,25	4.7	477	2.3	296.6	8500		F 413_296.6 P71 BN71A4
0,25	5.2	425	0.9	256.1	6500	F 253_256.1 S05 M05C4	F 253_256.1 P71 BN71A4
0,25	5.2	430	2.6	266.9	8500		F 413_266.9 P71 BN71A4
0,25	5.4	408	1.5	253.6	6500		F 313_253.6 P71 BN71A4
0,25	5.7	387	2.8	240.1	8500		F 413_240.1 P71 BN71A4
0,25	5.9	378	1.1	227.8	6500	F 253_227.8 S05 M05C4	F 253_227.8 P71 BN71A4
0,25	6.0	367	1.6	228.2	6500		F 313_228.2 P71 BN71A4
0,25	6.3	354	3.1	220.1	8500		F 413_220.1 P71 BN71A4
0,25	6.8	326	1.8	202.3	6500		F 313_202.3 P71 BN71A4
0,25	6.9	321	1.2	193.6	6500	F 253_193.6 S05 M05C4	F 253_193.6 P71 BN71A4
0,25	6.9	320	3.4	198.9	8500		F 413_198.9 P71 BN71A4
0,25	7.4	299	2.0	185.4	6500		F 313_185.4 P71 BN71A4
0,25	7.7	289	1.4	174.2	6500	F 253_174.2 S05 M05C4	F 253_174.2 P71 BN71A4
0,25	8.0	278	0.9	172.6	4000	F 203_172.6 S05 M05C4	F 203_172.6 P71 BN71A4
0,25	8.3	268	2.2	166.8	6500		F 313_166.8 P71 BN71A4
0,25	8.6	259	1.0	156.3	4000	F 203_156.3 S05 M05C4	F 203_156.3 P71 BN71A4
0,25	8.6	259	1.5	155.9	6500	F 253_155.9 S05 M05C4	F 253_155.9 P71 BN71A4
0,25	9.2	243	2.5	150.8	6500		F 313_150.8 P71 BN71A4
0,25	9.7	230	1.7	143.0	6500	F 253_143.0 S05 M05C4	F 253_143.0 P71 BN71A4
0,25	9.8	227	2.6	140.7	6500		F 313_140.7 P71 BN71A4
0,25	10.1	224	1.1	132.2	4000	F 202_132.2 S05 M05C4	F 202_132.2 P71 BN71A4
0,25	10.5	212	1.9	127.8	6500	F 253_127.8 S05 M05C4	F 253_127.8 P71 BN71A4
0,25	10.7	207	2.9	128.4	6500		F 313_128.4 P71 BN71A4
0,25	11.7	194	1.3	114.3	4000	F 202_114.3 S05 M05C4	F 202_114.3 P71 BN71A4
0,25	12.2	182	2.2	113.0	6500	F 253_113.0 S05 M05C4	F 253_113.0 P71 BN71A4
0,25	12.3	181	3.3	112.5	6500		F 313_112.5 P71 BN71A4
0,25	12.7	175	2.3	105.4	6500	F 253_105.4 S05 M05C4	F 253_105.4 P71 BN71A4
0,25	13.2	172	1.5	101.6	4000	F 202_101.6 S05 M05C4	F 202_101.6 P71 BN71A4
0,25	14.0	158	2.5	95.5	6500	F 253_95.5 S05 M05C4	F 253_95.5 P71 BN71A4
0,25	14.6	155	0.9	91.5	2800	F 102_91.5 S05 M05C4	F 102 91.5 P71 BN71A4
0,25	14.8	153	1.6	90.4	4000	F 202_90.4 S05 M05C4	F 202_90.4 P71 BN71A4
0,25	16.1	138	2.9	83.4	6500	F 253_83.4 S05 M05C4	F 253_83.4 P71 BN71A4
0,25	16.5	138	1.0	81.3	2800	F 102_81.3 S05 M05C4	F 102_81.3 P71 BN71A4
0,25	17.4	130	1.9	76.8	4000	F 202_76.8 S05 M05C4	F 202_76.8 P71 BN71A4
0,25	17.5	127	3.2	76.6	6420	F 253_76.6 S05 M05C4	F 253_76.6 P71 BN71A4
0,25	18.8	120	1.2	71.1	2800	F 102_71.1 S05 M05C4	F 102_71.1 P71 BN71A4
0,25	19.4	117	2.1	69.1	4000	F 202_69.1 S05 M05C4	F 202_69.1 P71 BN71A4
0,25	21.3	107	1.3	63.0	2800	F 102_63.0 S05 M05C4	F 102_63.0 P71 BN71A4
0,25	21.7	105	2.4	61.9	4000	F 202_61.9 S05 M05C4	F 202_61.9 P71 BN71A4
0,25	23.6	96	1.5	56.7	2800	F 102_56.7 S05 M05C4	F 102_56.7 P71 BN71A4
0,25	23.6	96	2.6	56.7	4000	F 202_56.7 S05 M05C4	F 202_56.7 P71 BN71A4
0,25	26.4	86	2.9	50.7	4000	F 202_50.7 S05 M05C4	F 202_50.7 P71 BN71A4
0,25	27.5	83	1.7	48.7	2800	F 102_48.7 S05 M05C4	F 102_48.7 P71 BN71A4
0,25	29.9	76	3.3	44.8	3870	F 202_44.8 S05 M05C4	F 202_44.8 P71 BN71A4
0,25	30	76	1.9	44.7	2800	F 102 44.7 S05 M05C4	F 102 44.7 P71 BN71A4
0,25	34	67	2.1	39.6	2800	F 102_39.6 S05 M05C4	F 102_39.6 P71 BN71A4
0,25	38	60	2.3	35.3	2800	F 102_35.3 S05 M05C4	F 102_35.3 P71 BN71A4
0,25	41	56	2.5	33.0	2800	F 102_33.0 S05 M05C4	F 102_33.0 P71 BN71A4
0,25	45	50	2.8	29.6	2800	F 102_29.6 S05 M05C4	F 102_29.6 P71 BN71A4
0,25	52	44	3.2	25.8	2750	F 102_25.8 S05 M05C4	F 102_25.8 P71 BN71A4
0,25	59	39	3.6	22.8	2650	F 102_22.8 S05 M05C4	F 102_22.8 P71 BN71A4
0,25	69	33	4.2	19.3	2520	F 102_19.3 S05 M05C4	F 102_19.3 P71 BN71A4
0,25	81	28	4.6	17.0	2420	F 102_17.0 S05 M05C4	F 102_17.0 P71 BN71A4
0,25	91	25	4.8	14.6	2310	F 102_14.6 S05 M05C4	F 102_14.6 P71 BN71A4
0,25	103	22	4.7	13.0	2230	F 102_13.0 S05 M05C4	F 102_13.0 P71 BN71A4
0,25	120	19	5.1	11.5	2140	F 102_11.5 S05 M05C4	F 102_11.5 P71 BN71A4
0,25	137	17	5.4	9.8	2030	F 102_9.8 S05 M05C4	F 102_9.8 P71 BN71A4
0,25	161	14	5.8	8.6	1950	F 102_8.6 S05 M05C4	F 102_8.6 P71 BN71A4
0,25	181	13	6.1	7.4	1860	F 102_7.4 S05 M05C4	F 102_7.4 P71 BN71A4
0,25	187	12	7.7	14.6	1850	F102_14.6 S05 M05B2	F 102_14.6 P63 BN63B2
0,25	210	11	7.9	13.0	1780	F102_13.0 S05 M05B2	F 102_13.0 P63 BN63B2
0,25	237	10	8.2	11.5	1710	F 102_11.5 S05 M05B2	F 102_11.5 P63 BN63B2
0,25	280	8	9.0	9.8	1620	F 102_9.8 S05 M05B2	F 102_9.8 P63 BN63B2
0,25	319	7	9.4	8.6	1550	F 102_8.6 S05 M05B2	F 102_8.6 P63 BN63B2
0,25	370	6	10.3	7.4	1480	F 102_7.4 S05 M05B2	F 102_7.4 P63 BN63B2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,37	0.46	7024	1.1	1987	45000	F 804_1987 S1 M1LA6	F 804_1987 P80 BN80A6
0,37	0.50	6484	1.2	1834	45000	F 804_1834 S1 M1LA6	F 804_1834 P80 BN80A6
0,37	0.53	6042	1.3	1709	45000	F 804_1709 S1 M1LA6	F 804_1709 P80 BN80A6
0,37	0.57	5602	0.9	1585	35000	F 704_1585 S1 M1LA6	F 704_1585 P80 BN80A6
0,37	0.58	5577	1.4	1578	45000	F 804_1578 S1 M1LA6	F 804_1578 P80 BN80A6
0,37	0.61	5238	1.0	1481	35000	F 704_1481 S1 M1LA6	F 704_1481 P80 BN80A6
0,37	0.63	5137	1.0	2188	35000	F 704_2188 S1 M1SD4	F 704_2188 P71 BN71B4
0,37	0.68	4742	1.1	2019	35000	F 704_2019 S1 M1SD4	F 704_2019 P71 BN71B4
0,37	0.69	4666	1.7	1987	45000	F 804_1987 S1 M1SD4	F 804_1987 P71 BN71B4
0,37	0.75	4307	1.9	1834	45000	F 804_1834 S1 M1SD4	F 804_1834 P71 BN71B4
0,37	0.80	4031	1.2	1717	35000	F 704_1717 S1 M1SD4	F 704_1717 P71 BN71B4
0,37	0.80	4013	2.0	1709	45000	F 804_1709 S1 M1SD4	F 804_1709 P71 BN71B4
0,37	0.86	3721	1.3	1585	35000	F 704_1585 S1 M1SD4	F 704_1585 P71 BN71B4
0,37	0.87	3705	2.2	1578	45000	F 804_1578 S1 M1SD4	F 804_1578 P71 BN71B4
0,37	0.92	3479	1.4	1481	35000	F704_1481 S1 M1SD4	F 704_1481 P71 BN71B4
0,37	0.99	3250	2.5	1384	45000	F 804_1384 S1 M1SD4	F 804_1384 P71 BN71B4
0,37	1.0	3211	1.6	1368	35000	F 704_1368 S1 M1SD4	F 704_1368 P71 BN71B4
0,37	1.1	3000	2.7	1277	45000	F 804_1277 S1 M1SD4	F 804_1277 P71 BN71B4
0,37	1.2	2680	1.1	1141	20000	F 604_1141 S1 M1SD4	F 604_1141 P71 BN71B4
0,37	1.2	2775	1.8	1182	35000	F 704_1182 S1 M1SD4	F 704_1182 P71 BN71B4
0,37	1.2	2692	3.0	1146	45000	F 804_1146 S1 M1SD4	F 804_1146 P71 BN71B4
0,37	1.3	2474	1.2	1054	20000	F 604_1054 S1 M1SD4	F 604_1054 P71 BN71B4
0,37	1.3	2562	2.0	1091	35000	F 704_1091 S1 M1SD4	F 704_1091 P71 BN71B4
0,37	1.3	2485	3.2	1058	45000	F 804_1058 S1 M1SD4	F 804_1058 P71 BN71B4
0,37	1.4	2252	1.3	958.9	20000	F 604_958.9 S1 M1SD4	F 604_958.9 P71 BN71B4
0,37	1.4	2288	2.2	974.4	35000	F 704_974.4 S1 M1SD4	F 704_974.4 P71 BN71B4
0,37	1.5	2079	0.9	885.5	12000	F 514_885.5 S1 M1SD4	F 514_885.5 P71 BN71B4
0,37	1.5	2078	1.4	885.1	20000	F 604_885.1 S1 M1SD4	F 604_885.1 P71 BN71B4
0,37	1.5	2112	2.4	899.4	35000	F 704_899.4 S1 M1SD4	F 704_899.4 P71 BN71B4
0,37	1.7	1941	0.9	826.4	12000	F 514_826.4 S1 M1SD4	F 514_826.4 P71 BN71B4
0,37	1.7	1931	2.6	822.2	35000	F 704_822.2 S1 M1SD4	F 704_822.2 P71 BN71B4
0,37	2.0	1588	1.1	676.3	12000	F 514_676.3 S1 M1SD4	F 514_676.3 P71 BN71B4
0,37	2.1	1556	1.9	662.4	20000	F 604_662.4 S1 M1SD4	F 604_662.4 P71 BN71B4
0,37	2.1	1544	3.2	657.4	35000	F 704_657.4 S1 M1SD4	F 704_657.4 P71 BN71B4
0,37	2.2	1436	2.0	611.4	20000	F 604_611.4 S1 M1SD4	F 604_611.4 P71 BN71B4
0,37	2.3	1425	3.5	606.8	35000	F 704_606.8 S1 M1SD4	F 704_606.8 P71 BN71B4
0,37	2.5	1291	0.9	549.8	8500	F 414_549.8 S1 M1SD4	F 414_549.8 P71 BN71B4
0,37	2.6	1246	1.4	530.5	12000	F 514_530.5 S1 M1SD4	F 514_530.5 P71 BN71B4
0,37	2.6	1246	2.3	530.7	20000	F 604_530.7 S1 M1SD4	F 604_530.7 P71 BN71B4
0,37	2.8	1150	2.5	489.8	20000	F 604_489.8 S1 M1SD4	F 604_489.8 P71 BN71B4
0,37	3.2	1018	1.1	433.7	8500	F 414_433.7 S1 M1SD4	F 414_433.7 P71 BN71B4
0,37	3.2	1008	1.8	429.1	12000	F 514_429.1 S1 M1SD4	F 514_429.1 P71 BN71B4
0,37	3.2	1016	2.9	432.6	20000	F 604_432.6 S1 M1SD4	F 604_432.6 P71 BN71B4
0,37	3.4	938	3.1	399.3	20000	F 604_399.3 S1 M1SD4	F 604_399.3 P71 BN71B4
0,37	3.9	846	2.1	352.5	12000	F 513_352.5 S1 M1SD4	F 513_352.5 P71 BN71B4
0,37	4.0	827	1.3	344.8	8500	F 413_344.8 S1 M1SD4	F 413_344.8 P71 BN71B4
0,37	4.3	761	2.4	317.3	12000	F 513_317.3 S1 M1SD4	F 513_317.3 P71 BN71B4
0,37	4.6	712	1.5	296.6	8500	F 413_296.6 S1 M1SD4	F 413_296.6 P71 BN71B4
0,37	4.8	686	2.6	285.9	12000	F 513_285.9 S1 M1SD4	F 513_285.9 P71 BN71B4
0,37	5.1	641	1.7	266.9	8500	F 413_266.9 S1 M1SD4	F 413_266.9 P71 BN71B4
0,37	5.2	629	2.9	262.1	12000	F 513_262.1 S1 M1SD4	F 513_262.1 P71 BN71B4
0,37	5.4	609	1.0	253.6	6500	F 313_253.6 S1 M1SD4	F 313_253.6 P71 BN71B4
0,37	5.7	576	1.9	240.1	8500	F 413_240.1 S1 M1SD4	F 413_240.1 P71 BN71B4
0,37	5.7	576	3.1	239.8	12000	F 513_239.8 S1 M1SD4	F 513_239.8 P71 BN71B4
0,37	6.0	548	1.1	228.2	6500	F 313_228.2 S1 M1SD4	F 313_228.2 P71 BN71B4
0,37	6.2	528	2.1	220.1	8500	F 413_220.1 S1 M1SD4	F 413_220.1 P71 BN71B4
0,37	6.3	520	3.5	216.9	12000	F 513_216.9 S1 M1SD4	F 513_216.9 P71 BN71B4
0,37	6.8	485	1.2	202.3	6500	F 313_202.3 S1 M1SD4	F 313_202.3 P71 BN71B4
0,37	6.9	477	2.3	198.9	8500	F 413_198.9 S1 M1SD4	F 413_198.9 P71 BN71B4
0,37	7.4	445	1.3	185.4	6500	F 313_185.4 S1 M1SD4	F 313_185.4 P71 BN71B4
0,37	7.6	434	2.5	180.7	8500	F 413_180.7 S1 M1SD4	F 413_180.7 P71 BN71B4
0,37	7.9	418	1.0	174.2	6500	F 253_174.2 S1 M1SD4	F 253_174.2 P71 BN71B4
0,37	8.1	405	2.7	168.7	8500	F 413_168.7 S1 M1SD4	F 413_168.7 P71 BN71B4
0,37	8.2	400	1.5	166.8	6500	F 313_166.8 S1 M1SD4	F 313_166.8 P71 BN71B4
0,37	8.8	374	1.1	155.9	6500	F 253_155.9 S1 M1SD4	F 253_155.9 P71 BN71B4
0,37	9.1	362	1.7	150.8	6500	F 313_150.8 S1 M1SD4	F 313_150.8 P71 BN71B4
0,37	9.6	343	1.2	143.0	6500	F 253_143.0 S1 M1SD4	F 253_143.0 P71 BN71B4
0,37	9.7	338	1.8	140.7	6500	F 313_140.7 S1 M1SD4	F313_140.7 P71 BN71B4
0,37	10.2	323	3.4	134.4	8500	F 413_134.4 S1 M1SD4	F 413_134.4 P71 BN71B4
0,37	10.7	307	1.3	127.8	6500	F 253_127.8 S1 M1SD4	F 253_127.8 P71 BN71B4
0,37	10.7	308	1.9	128.4	6500	F 313_128.4 S1 M1SD4	F 313_128.4 P71 BN71B4
0,37	12.1	271	1.5	113.0	6500	F 253_113.0 S1 M1SD4	F 253_113.0 P71 BN71B4
0,37	12.2	270	2.2	112.5	6500	F 313_112.5 S1 M1SD4	F 313_112.5 P71 BN71B4
0,37	13.0	253	1.6	105.4	6500	F 253_105.4 S1 M1SD4	F 253_105.4 P71 BN71B4
0,37	13.4	245	2.5	101.9	6500	F 313_101.9 S1 M1SD4	F 313_101.9 P71 BN71B4
0,37	13.5	249	1.0	101.6	4000	F 202_101.6 S1 M1SD4	F 202_101.6 P71 BN71B4
0,37	14.3	229	1.7	95.5	6490	F 253_95.5 S1 M1SD4	F 253_95.5 P71 BN71B4
0,37	15.2	222	1.1	90.4	4000	F 202_90.4 S1 M1SD4	F 202_90.4 P71 BN71B4
0,37	15.7	210	2.9	87.4	6500	F 313_87.4 S1 M1SD4	F 313_87.4 P71 BN71B4
0,37	16.4	200	2.0	83.4	6280	F 253_83.4 S1 M1SD4	F 253_83.4 P71 BN71B4
0,37	17.4	189	3.2	78.9	6500	F 313_78.9 S1 M1SD4	F 313_78.9 P71 BN71B4
0,37	17.8	188	1.3	76.8	4000	F 202_76.8 S1 M1SD4	F 202_76.8 P71 BN71B4
0,37	17.9	184	2.2	76.6	6160	F 253_76.6 S1 M1SD4	F 253_76.6 P71 BN71B4
0,37	19.8	169	1.5	69.1	4000	F 202_69.1 S1 M1SD4	F 202_69.1 P71 BN71B4
0,37	21.0	157	2.6	65.3	5920	F 253_65.3 S1 M1SD4	F 253_65.3 P71 BN71B4
0,37	21.7	154	0.9	63.0	2800	F 102_63.0 S1 M1SD4	F 102_63.0 P71 BN71B4
0,37	22.1	152	1.6	61.9	4000	F 202_61.9 S1 M1SD4	F 202_61.9 P71 BN71B4
0,37	23.5	140	2.9	58.3	5750	F 253_58.3 S1 M1SD4	F 253_58.3 P71 BN71B4
0,37	24.2	139	1.0	56.7	2800	F 102_56.7 S1 M1SD4	F 102_56.7 P71 BN71B4
0,37	24.2	139	1.8	56.7	4000	F 202_56.7 S1 M1SD4	F 202_56.7 P71 BN71B4
0,37	27.0	124	2.0	50.7	3900	F 202_50.7 S1 M1SD4	F 202_50.7 P71 BN71B4
0,37	27.0	122	3.3	50.8	5540	F 253_50.8 S1 M1SD4	F 253_50.8 P71 BN71B4
0,37	28.1	119	1.2	48.7	2800	F 102_48.7 S1 M1SD4	F 102_48.7 P71 BN71B4
0,37	31	110	1.3	44.7	2800	F 102_44.7 S1 M1SD4	F 102_44.7 P71 BN71B4
0,37	31	110	2.3	44.8	3770	F 202_44.8 S1 M1SD4	F 202_44.8 P71 BN71B4
0,37	31	109	3.5	44.4	5370	F 252_44.4 S1 M1SD4	F 252_44.4 P71 BN71B4
0,37	33	103	2.4	41.8	3700	F 202_41.8 S1 M1SD4	F 202_41.8 P71 BN71B4
0,37	35	97	1.4	39.6	2800	F 102_39.6 S1 M1SD4	F 102_39.6 P71 BN71B4
0,37	36	93	2.7	37.9	3600	F 202_37.9 S1 M1SD4	F 202_37.9 P71 BN71B4
0,37	39	87	1.6	35.3	2800	F 102_35.3 S1 M1SD4	F 102_35.3 P71 BN71B4
0,37	41	81	3.1	33.1	3460	F 202_33.1 S1 M1SD4	F 202_33.1 P71 BN71B4
0,37	42	81	1.7	33.0	2800	F 102_33.0 S1 M1SD4	F 102_33.0 P71 BN71B4
0,37	45	75	3.4	30.4	3380	F 202_30.4 S1 M1SD4	F 202_30.4 P71 BN71B4
0,37	46	73	1.9	29.6	2800	F 102_29.6 S1 M1SD4	F 102_29.6 P71 BN71B4
0,37	53	63	2.2	25.8	2690	F 102_25.8 S1 M1SD4	F 102_25.8 P71 BN71B4
0,37	60	56	2.5	22.8	2600	F 102_22.8 S1 M1SD4	F 102_22.8 P71 BN71B4
0,37	71	47	2.9	19.3	2470	F 102_19.3 S1 M1SD4	F 102_19.3 P71 BN71B4
0,37	81	42	3.1	17.0	2380	F 102_17.0 S1 M1SD4	F 102_17.0 P71 BN71B4
0,37	94	36	3.3	14.6	2280	F 102_14.6 S1 M1SD4	F 102_14.6 P71 BN71B4
0,37	105	32	3.3	13.0	2200	F 102_13.0 S1 M1SD4	F 102_13.0 P71 BN71B4
0,37	119	28	3.4	11.5	2120	F102_11.5 S1 M1SD4	F 102_11.5 P71 BN71B4
0,37	140	24	3.7	9.8	2010	F 102_9.8 S1 M1SD4	F 102_9.8 P71 BN71B4
0,37	160	21	3.9	8.6	1930	F 102_8.6 S1 M1SD4	F 102_8.6 P71 BN71B4
0,37	185	18	4.2	7.4	1850	F 102_7.4 S1 M1SD4	F 102_7.4 P71 BN71B4
0,37	193	17	5.4	14.6	1830	F 102_14.6 S05 M05C2	F 102_14.6 P71 BN71A2
0,37	216	16	5.5	13.0	1760	F 102_13.0 S05 M05C2	F 102_13.0 P71 BN71A2
0,37	244	14	5.7	11.5	1690	F 102_11.5 S05 M05C2	F 102_11.5 P71 BN71A2
0,37	289	12	6.3	9.8	1610	F 102_9.8 S05 M05C2	F 102_9.8 P71 BN71A2
0,37	329	10	6.6	8.6	1540	F 102_8.6 S05 M05C2	F 102_8.6 P71 BN71A2
0,37	381	9	7.1	7.4	1470	F 102_7.4 S05 M05C2	F 102_7.4 P71 BN71A2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,55	0.44	10909	1.3	2099	55000	F 904_2099 S2 M2SA6	F 904_2099 P80 BN80B6
0,55	0.47	10070	1.4	1937	55000	F 904_1937 S2 M2SA6	F 904_1937 P80 BN80B6
0,55	0.54	8884	0.9	1709	45000	F 804_1709 S2 M2SA6	F 804_1709 P80 BN80B6
0,55	0.54	8849	1.6	1702	55000	F 904_1702 S2 M2SA6	F 904_1702 P80 BN80B6
0,55	0.58	8201	1.0	1578	45000	F 804_1578 S2 M2SA6	F 804_1578 P80 BN80B6
0,55	0.59	8168	1.7	1571	55000	F 904_1571 S2 M2SA6	F 904_1571 P80 BN80B6
0,55	0.64	7422	1.9	1428	55000	F 904_1428 S2 M2SA6	F 904_1428 P80 BN80B6
0,55	0.66	7193	1.1	1384	45000	F 804_1384 S2 M2SA6	F 804_1384 P80 BN80B6
0,55	0.69	6885	1.2	1987	45000	F 804_1987 S1 M1LA4	F 804_1987 P80 BN80A4
0,55	0.75	6356	1.3	1834	45000	F 804_1834 S1 M1LA4	F 804_1834 P80 BN80A4
0,55	0.81	5923	1.4	1709	45000	F 804_1709 S1 M1LA4	F 804_1709 P80 BN80A4
0,55	0.87	5491	0.9	1585	35000	F 704_1585 S1 M1LA4	F 704_1585 P80 BN80A4
0,55	0.87	5467	1.5	1578	45000	F 804_1578 S1 M1LA4	F 804_1578 P80 BN80A4
0,55	0.93	5134	1.0	1481	35000	F 704_1481 S1 M1LA4	F 704_1481 P80 BN80A4
0,55	1.0	4739	1.1	1368	35000	F 704_1368 S1 M1LA4	F 704_1368 P80 BN80A4
0,55	1.0	4795	1.7	1384	45000	F 804_1384 S1 M1LA4	F 804_1384 P80 BN80A4
0,55	1.1	4427	1.8	1277	45000	F 804_1277 S1 M1LA4	F 804_1277 P80 BN80A4
0,55	1.2	4095	1.2	1182	35000	F 704_1182 S1 M1LA4	F 704_1182 P80 BN80A4
0,55	1.2	3972	2.0	1146	45000	F 804_1146 S1 M1LA4	F 804_1146 P80 BN80A4
0,55	1.3	3780	1.3	1091	35000	F 704_1091 S1 M1LA4	F 704_1091 P80 BN80A4
0,55	1.3	3667	2.2	1058	45000	F 804_1058 S1 M1LA4	F 804_1058 P80 BN80A4
0,55	1.4	3323	0.9	958.9	20000	F 604_958.9 S1 M1LA4	F 604_958.9 P80 BN80A4
0,55	1.4	3377	1.5	974.4	35000	F 704_974.4 S1 M1LA4	F 704_974.4 P80 BN80A4
0,55	1.5	3117	1.6	899.4	35000	F 704_899.4 S1 M1LA4	F 704 899.4 P80 BN80A4
0,55	1.5	3109	2.6	897.3	45000	F 804_897.3 S1 M1LA4	F 804_897.3 P80 BN80A4
0,55	1.6	3067	0.9	885 1	20000	F 604_885.1 S1 M1LA4	F 604_885.1 P80 BN80A4
0,55	1.7	2849	1.8	822.2	35000	F 704_822.2 S1 M1LA4	F 704_822.2 P80 BN80A4
0,55	1.8	2684	3.0	774.4	45000	F 804_774.4 S1 M1LA4	F 804_774.4 P80 BN80A4
0,55	1.9	2477	3.2	714.9	45000	F 804_714.9 S1 M1LA4	F 804_714.9 P80 BN80A4
0,55	2.1	2295	1.3	662.4	20000	F 604_662.4 S1 M1LA4	F 604_662.4 P80 BN80A4
0,55	2.1	2278	2.2	657.4	35000	F 704_657.4 S1 M1LA4	F 704_657.4 P80 BN80A4
0,55	2.3	2119	1.4	611.4	20000	F 604_611.4 S1 M1LA4	F 604_611.4 P80 BN80A4
0,55	2.3	2103	2.4	606.8	35000	F 704_606.8 S1 M1LA4	F 704_606.8 P80 BN80A4
0,55	2.6	1838	1.0	530.5	12000	F 514_530.5 S1 M1LA4	F 514_530.5 P80 BN80A4
0,55	2.6	1839	1.6	530.7	20000	F 604_530.7 S1 M1LA4	F 604_530.7 P80 BN80A4
0,55	2.7	1769	2.8	510.4	35000	F 704_510.4S1 M1LA4	F 704_510.4 P80 BN80A4
0,55	2.8	1698	1.7	489.8	20000	F 604_489.8 S1 M1LA4	F 604_489.8 P80 BN80A4
0,55	2.9	1633	3.1	471.2	35000	F 704_471.2 S1 M1LA4	F 704 471.2 P80 BN80A4
0,55	3.2	1487	1.2	429.1	12000	F 514_429.1 S1 M1LA4	F 514_429.1 P80 BN80A4
0,55	3.2	1499	1.9	432.6	20000	F 604_432.6 S1 M1LA4	F 604_432.6 P80 BN80A4
0,55	3.5	1384	2.1	399.3	20000	F 604_399.3 S1 M1LA4	F 604_399.3 P80 BN80A4
0,55	3.9	1248	1.4	352.5	12000	F 513_352.5 S1 M1LA4	F 513_352.5 P80 BN80A4
0,55	4.0	1221	0.9	344.8	8500	F 413_344.8 S1 M1LA4	F 413_344.8 P80 BN80A4
0,55	4.0	1184	2.4	341.7	20000	F 604_341.7 S1 M1LA4	F 604_341.7 P80 BN80A4
0,55	4.3	1124	1.6	317.3	12000	F 513_317.3 S1 M1LA4	F 513_317.3 P80 BN80A4
0,55	4.4	1093	2.7	315.4	20000	F 604_315.4 S1 M1LA4	F 604_315.4 P80 BN80A4
0,55	4.7	1050	1.0	296.6	8500	F 413_296.6 S1 M1LA4	F 413_296.6 P80 BN80A4
0,55	4.8	1013	1.8	285.9	12000	F 513_285.9 S1 M1LA4	F 513_285.9 P80 BN80A4
0,55	5.2	945	1.2	266.9	8500	F 413 266.9 S1 M1LA4	F 413_266.9 P80 BN80A4
0,55	5.3	928	1.9	262.1	12000	F 513_262.1 S1 M1LA4	F 513_262.1 P80 BN80A4
0,55	5.7	850	1.3	240.1	8500	F 413_240.1 S1 M1LA4	F 413_240.1 P80 BN80A4
0,55	5.8	849	2.1	239.8	12000	F 513_239.8 S1 M1LA4	F 513_239.8 P80 BN80A4
0,55	6.3	780	1.4	220.1	8500	F 413_220.1 S1 M1LA4	F 413_220.1 P80 BN80A4
0,55	6.4	768	2.3	216.9	12000	F 513_216.9 S1 M1LA4	F 513_216.9 P80 BN80A4
0,55	6.8	717	2.5	202.4	12000	F 513_202.4 S1 M1LA4	F 513_202.4 P80 BN80A4
0,55	6.9	704	1.6	198.9	8500	F 413_198.9 S1 M1LA4	F 413_198.9 P80 BN80A4
0,55	7.4	657	0.9	185.4	6500	F 313_185.4 S1 M1LA4	F 313_185.4 P80 BN80A4
0,55	7.6	640	1.7	180.7	8500	F 413_180.7 S1 M1LA4	F 413_180.7 P80 BN80A4
0,55	8.2	597	1.8	168.7	8500	F 413_168.7 S1 M1LA4	F 413_168.7 P80 BN80A4
0,55	8.3	591	1.0	166.8	6500	F 313_166.8 S1 M1LA4	F 313_166.8 P80 BN80A4
0,55	8.3	587	3.1	165.6	12000	F 513_165.6 S1 M1LA4	F 513_165.6 P80 BN80A4
0,55	9.2	534	1.1	150.8	6500	F 313_150.8 S1 M1LA4	F 313_150.8 P80 BN80A4
0,55	9.8	498	1.2	140.7	6500	F 313_140.7 S1 M1LA4	F 313_140.7 P80 BN80A4
0,55	10.3	476	2.3	134.4	8500	F 413_134.4 S1 M1LA4	F 413_134.4 P80 BN80A4
0,55	10.7	455	1.3	128.4	6500	F 313_128.4 S1 M1LA4	F 313_128.4 P80 BN80A4
0,55	12.2	400	1.0	113.0	6130	F 253_113.0 S1 M1LA4	F 253_113.0 P80 BN80A4
0,55	12.3	399	1.5	112.5	6500	F 313_112.5 S1 M1LA4	F 313_112.5 P80 BN80A4
0,55	13.0	375	2.9	106.0	8500	F 413_106.0 S1 M1LA4	F 413_106.0 P80 BN80A4
0,55	13.1	373	1.1	105.4	6070	F 253_105.4 S1 M1LA4	F 253_105.4 P80 BN80A4
0,55	13.5	361	1.7	101.9	6500	F 313_101.9 S1 M1LA4	F 313_101.9 P80 BN80A4
0,55	14.5	338	1.2	95.5	5980	F 253_95.5 S1 M1LA4	F 253_95.5 P80 BN80A4
0,55	15.8	309	1.9	87.4	6500	F 313_87.4 S1 M1LA4	F 313_87.4 P80 BN80A4
0,55	16.5	295	1.4	83.4	5840	F 253_83.4 S1 M1LA4	F 253_83.4 P80 BN80A4
0,55	17.5	279	2.1	78.9	6500	F 313_78.9 S1 M1LA4	F 313_78.9 P80 BN80A4
0,55	18.0	278	0.9	76.8	4000	F 202_76.8 S1 M1LA4	F 202_76.8 P80 BN80A4
0,55	18.0	271	1.5	76.6	5750	F 253_76.6 S1 M1LA4	F 253_76.6 P80 BN80A4
0,55	20.0	250	1.0	69.1	3980	F 202_69.1 S1 M1LA4	F 202_69.1 P80 BN80A4
0,55	20.0	245	2.5	69.1	6500	F 313_69.1 S1 M1LA4	F 313_69.1 P80 BN80A4
0,55	21.1	231	1.7	65.3	5570	F 253_65.3 S1 M1LA4	F 253_65.3 P80 BN80A4
0,55	22.1	221	2.7	62.8	6500		F 313_62.8 P80 BN80A4
0,55	22.3	224	1.1	61.9	3890	F 202_61.9 S1 M1LA4	F 202_61.9 P80 BN80A4
0,55	23.7	207	1.9	58.3	5430	F 253_58.3 S1 M1LA4	F 253_58.3 P80 BN80A4
0,55	24.3	205	1.2	56.7	3810	F 202_56.7 S1 M1LA4	F 202_56.7 P80 BN80A4
0,55	26.7	183	3.3	52.1	6500		F 313_52.1 P80 BN80A4
0,55	27.2	184	1.4	50.7	3720	F 202_50.7 S1 M1LA4	F 202_50.7 P80 BN80A4
0,55	27.2	180	2.2	50.8	5270	F 253_50.8 S1 M1LA4	F 253_50.8 P80 BN80A4
0,55	29.2	167	3.5	47.5	6500		F 313_47.5 P80 BN80A4
0,55	31	162	1.5	44.8	3610	F 202_44.8 S1 M1LA4	F 202_44.8 P80 BN80A4
0,55	31	161	2.4	44.4	5140	F 252_44.4 S1 M1LA4	F 252_44.4 P80 BN80A4
0,55	31	160	2.5	45.6	5130		F 253_45.6 P80 BN80A4
0,55	33	151	1.7	41.8	3550	F 202_41.8 S1 M1LA4	F 202_41.8 P80 BN80A4
0,55	34	147	2.5	40.7	5030	F 252_40.7 S1 M1LA4	F 252_40.7 P80 BN80A4
0,55	35	143	1.0	39.6	2800	F 102_39.6 S1 M1LA4	F 102_39.6 P80 BN80A4
0,55	36	137	1.8	37.9	3460	F 202_37.9 S1 M1LA4	F 202_37.9 P80 BN80A4
0,55	38	132	3.0	36.4	4890	F 252_36.4 S1 M1LA4	F 252_36.4 P80 BN80A4
0,55	39	128	1.1	35.3	2800	F 102_35.3 S1 M1LA4	F 102_35.3 P80 BN80A4
0,55	42	119	1.2	33.0	2750	F 102_33.0 S1 M1LA4	F 102_33.0 P80 BN80A4
0,55	42	120	2.1	33.1	3340	F 202_33.1 S1 M1LA4	F 202_33.1 P80 BN80A4
0,55	43	116	3.4	32.2	4730	F 252_32.2 S1 M1LA4	F 252_32.2 P80 BN80A4
0,55	45	110	2.3	30.4	3260	F 202_30.4 S1 M1LA4	F 202_30.4 P80 BN80A4
0,55	47	107	1.3	29.6	2680	F 102_29.6 S1 M1LA4	F 102_29.6 P80 BN80A4
0,55	53	94	2.6	25.9	3130	F 202_25.9 S1 M1LA4	F 202_25.9 P80 BN80A4
0,55	54	93	1.5	25.8	2590	F 102_25.8 S1 M1LA4	F 102_25.8 P80 BN80A4
0,55	60	83	1.7	22.8	2510	F 102_22.8 S1 M1LA4	F 102_22.8 P80 BN80A4
0,55	60	84	2.8	23.1	3030	F 202_23.1 S1 M1LA4	F 202_23.1 P80 BN80A4
0,55	68	73	3.1	20.2	2910	F 202_20.2 S1 M1LA4	F 202_20.2 P80 BN80A4
0,55	71	70	1.9	19.3	2400	F 102_19.3 S1 M1LA4	F 102_19.3 P80 BN80A4
0,55	77	65	3.3	18.1	2820	F 202_18.1 S1 M1LA4	F 202_18.1 P80 BN80A4
0,55	81	61	2.1	17.0	2310	F 102_17.0 S1 M1LA4	F 102_17.0 P80 BN80A4
0,55	94	53	2.2	14.6	2220	F 102_14.6 S1 M1LA4	F 102_14.6 P80 BN80A4
0,55	106	47	2.2	13.0	2140	F 102_13.0 S1 M1LA4	F 102_13.0 P80 BN80A4
0,55	120	42	2.3	11.5	2070	F 102_11.5 S1 M1LA4	F 102_11.5 P80 BN80A4
0,55	141	35	2.5	9.8	1970	F 102_9.8 S1 M1LA4	F 102_9.8 P80 BN80A4
0,55	161	31	2.6	8.6	1890	F 102_8.6 S1 M1LA4	F 102_8.6 P80 BN80A4
0,55	186	27	2.8	7.4	1810	F 102_7.4 S1 M1LA4	F 102_7.4 P80 BN80A4
0,55	193	26	3.6	14.6	1800	F102_14.6 S1 M1SD2	F 102_14.6 P71 BN71B2
0,55	216	23	3.7	13.0	1730	F 102_13.0 S1 M1SD2	F 102_13.0 P71 BN71B2
0,55	244	20	3.8	11.5	1670	F 102_11.5 S1 M1SD2	F 102_11.5 P71 BN71B2
0,55	289	17	4.2	9.8	1590	F 102_9.8 S1 M1SD2	F 102_9.8 P71 BN71B2
0,55	329	15	4.4	8.6	1530	F 102_8.6 S1 M1SD2	F 102_8.6 P71 BN71B2
0,55	381	13	4.8	7.4	1460	F 102_7.4 S1 M1SD2	F 102_7.4 P71 BN71B2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
0,75	0.44	14876	0.9	2099	55000	F 904_2099 S2 M2SB6	F 904_2099 P90 BN90S6
0,75	0.47	13732	1.0	1937	55000	F 904_1937 S2 M2SB6	F 904_1937 P90 BN90S6
0,75	0.54	12067	1.2	1702	55000	F 904_1702 S2 M2SB6	F 904_1702 P90 BN90S6
0,75	0.59	11138	1.3	1571	55000	F 904_1571 S2 M2SB6	F 904_1571 P90 BN90S6
0,75	0.64	10121	1.4	1428	55000	F 904_1428 S2 M2SB6	F 904_1428 P90 BN90S6
0,75	0.67	9776	1.4	2099	55000	F 904_2099 S2 M2SA4	F 904_2099 P80 BN80B4
0,75	0.70	9255	0.9	1987	45000	F 804_1987 S2 M2SA4	F 804_1987 P80 BN80B4
0,75	0.72	9024	1.6	1937	55000	F 904_1937 S2 M2SA4	F 904_1937 P80 BN80B4
0,75	0.76	8543	0.9	1834	45000	F 804_1834 S2 M2SA4	F 804_1834 P80 BN80B4
0,75	0.82	7961	1.0	1709	45000	F 804_1709 S2 M2SA4	F 804_1709 P80 BN80B4
0,75	0.82	7930	1.8	1702	55000	F 904_1702 S2 M2SA4	F 904_1702 P80 BN80B4
0,75	0.89	7349	1.1	1578	45000	F 804_1578 S2 M2SA4	F 804_1578 P80 BN80B4
0,75	0.89	7320	1.9	1571	55000	F 904_1571 S2 M2SA4	F 904_1571 P80 BN80B4
0,75	0.98	6651	2.1	1428	55000	F 904_1428 S2 M2SA4	F 904_1428 P80 BN80B4
0,75	1.0	6446	1.2	1384	45000	F 804_1384 S2 M2SA4	F 804_1384 P80 BN80B4
0,75	1.1	5950	1.3	1277	45000	F 804_1277 S2 M2SA4	F 804_1277 P80 BN80B4
0,75	1.1	6140	2.3	1318	55000	F 904_1318 S2 M2SA4	F 904_1318 P80 BN80B4
0,75	1.2	5505	0.9	1182	35000	F 704_1182 S2 M2SA4	F 704_1182 P80 BN80B4
0,75	1.2	5339	1.5	1146	45000	F 804_1146 S2 M2SA4	F 804_1146 P80 BN80B4
0,75	1.2	5613	2.5	1205	55000	F 904_1205 S2 M2SA4	F 904_1205 P80 BN80B4
0,75	1.3	5082	1.0	1091	35000	F 704_1091 S2 M2SA4	F 704_1091 P80 BN80B4
0,75	1.3	4929	1.6	1058	45000	F 804_1058 S2 M2SA4	F 804_1058 P80 BN80B4
0,75	1.3	5181	2.7	1112	55000	F 904_1112 S2 M2SA4	F 904_1112 P80 BN80B4
0,75	1.4	4539	1.1	974.4	35000	F 704_974.4 S2 M2SA4	F 704_974.4 P80 BN80B4
0,75	1.5	4240	3.3	910.2	55000	F 904_910.2 S2 M2SA4	F 904_910.2 P80 BN80B4
0,75	1.6	4190	1.2	899.4	35000	F 704_899.4 S2 M2SA4	F 704_899.4 P80 BN80B4
0,75	1.6	4180	1.9	897.3	45000	F 804_897.3 S2 M2SA4	F 804_897.3 P80 BN80B4
0,75	1.7	3830	1.3	822.2	35000	F 704_822.2 S2 M2SA4	F 704_822.2 P80 BN80B4
0,75	1.8	3607	2.2	774.4	45000	F 804_774.4 S2 M2SA4	F 804_774.4 P80 BN80B4
0,75	2.0	3330	2.4	714.9	45000	F 804_714.9 S2 M2SA4	F 804_714.9 P80 BN80B4
0,75	2.1	3085	0.9	662.4	20000	F 604_662.4 S2 M2SA4	F 604_662.4 P80 BN80B4
0,75	2.1	3062	1.6	657.4	35000	F 704_657.4 S2 M2SA4	F 704_657.4 P80 BN80B4
0,75	2.3	2848	1.0	611.4	20000	F 604_611.4 S2 M2SA4	F 604_611.4 P80 BN80B4
0,75	2.3	2827	1.8	606.8	35000	F 704_606.8 S2 M2SA4	F 704_606.8 P80 BN80B4
0,75	2.3	2845	2.8	610.9	45000	F 804_610.9 S2 M2SA4	F 804_610.9 P80 BN80B4
0,75	2.5	2627	3.0	563.9	45000	F 804_563.9 S2 M2SA4	F 804_563.9 P80 BN80B4
0,75	2.6	2472	1.2	530.7	20000	F 604_530.7 S2 M2SA4	F 604_530.7 P80 BN80B4
0,75	2.7	2378	2.1	510.4	35000	F 704_510.4 S2 M2SA4	F 704_510.4 P80 BN80B4
0,75	2.9	2282	1.3	489.8	20000	F 604_489.8 S2 M2SA4	F 604_489.8 P80 BN80B4
0,75	2.9	2278	3.5	489.1	45000	F 804_489.1 S2 M2SA4	F 804_489.1 P80 BN80B4
0,75	3.0	2195	2.3	471.2	35000	F 704_471.2 S2 M2SA4	F 704_471.2 P80 BN80B4
0,75	3.2	2015	1.4	432.6	20000	F 604_432.6 S2 M2SA4	F 604_432.6 P80 BN80B4
0,75	3.3	1999	0.9	429.1	12000	F 514_429.1 S2 M2SA4	F 514_429.1 P80 BN80B4
0,75	3.5	1860	1.6	399.3	20000	F 604_399.3 S2 M2SA4	F 604_399.3 P80 BN80B4
0,75	3.5	1880	2.7	403.5	35000	F 704_403.5 S2 M2SA4	F 704_403.5 P80 BN80B4
0,75	3.8	1735	2.9	372.5	35000	F 704_372.5 S2 M2SA4	F 704_372.5 P80 BN80B4
0,75	4.0	1678	1.1	352.5	12000	F 513_352.5 S2 M2SA4	F 513_352.5 P80 BN80B4
0,75	4.1	1592	1.8	341.7	20000	F 604_341.7 S2 M2SA4	F 604_341.7 P80 BN80B4
0,75	4.4	1510	1.2	317 3	12000	F 513_317.3 S2 M2SA4	F 513_317.3 P80 BN80B4
0,75	4.4	1469	2.0	315.4	20000	F 604_315.4 S2 M2SA4	F 604_315.4 P80 BN80B4
0,75	4.6	1418	3.5	304.3	35000	F 704_304.3 S2 M2SA4	F 704_304.3 P80 BN80B4
0,75	4.9	1361	1.3	285.9	12000	F 513_285.9 S2 M2SA4	F 513_285.9 P80 BN80B4
0,75	5.3	1248	1.4	262.1	12000	F 513_262.1 S2 M2SA4	F 513_262.1 P80 BN80B4
0,75	5.8	1143	1.0	240.1	8500	F 413_240.1 S2 M2SA4	F 413_240.1 P80 BN80B4
0,75	5.8	1142	1.6	239.8	12000	F 513_239.8 S2 M2SA4	F 513_239.8 P80 BN80B4
0,75	6.4	1048	1.0	220.1	8500	F 413_220.1 S2 M2SA4	F 413_220.1 P80 BN80B4
0,75	6.5	1032	1.7	216.9	12000	F 513_216.9 S2 M2SA4	F 513_216.9 P80 BN80B4
0,75	6.9	963	1.9	202.4	12000	F 513_202.4 S2 M2SA4	F 513_202.4 P80 BN80B4
0,75	7.0	947	1.2	198.9	8500	F 413_198.9 S2 M2SA4	F 413_198.9 P80 BN80B4
0,75	7.7	860	1.3	180.7	8500	F 413_180.7 S2 M2SA4	F 413_180.7 P80 BN80B4
0,75	8.3	803	1.4	168.7	8500	F 413_168.7 S2 M2SA4	F 413_168.7 P80 BN80B4
0,75	8.5	788	2.3	165.6	12000	F 513_165.6 S2 M2SA4	F 513_165.6 P80 BN80B4
0,75	10.4	640	1.7	134.4	8500	F 413_134.4 S2 M2SA4	F 413_134.4 P80 BN80B4
0,75	10.8	618	2.9	129.9	12000	F 513_129.9 S2 M2SA4	F 513_129.9 P80 BN80B4
0,75	10.9	611	1.0	128.4	6500	F 313_128.4 S2 M2SA4	F 313_128.4 P80 BN80B4
0,75	12.4	536	1.1	112.5	6500	F 313_112.5 S2 M2SA4	F 313_112.5 P80 BN80B4
0,75	13.2	505	2.2	106.0	8500	F 413_106.0 S2 M2SA4	F 413_106.0 P80 BN80B4
0,75	13.7	485	1.2	101.9	6500	F 313_101.9 S2 M2SA4	F 313_101.9 P80 BN80B4
0,75	16.0	416	1.4	87.4	6500	F 313_87.4 S2 M2SA4	F 313_87.4 P80 BN80B4
0,75	16.5	404	2.7	84.9	8500	F 413_84.9 S2 M2SA4	F 413_84.9 P80 BN80B4
0,75	16.8	397	1.0	83.4	5350	F 253_83.4 S2 M2SA4	F 253_83.4 P80 BN80B4
0,75	17.8	375	1.6	78.9	6500	F 313_78.9 S2 M2SA4	F 313_78.9 P80 BN80B4
0,75	18.3	365	1.1	76.6	5300	F 253_76.6 S2 M2SA4	F 253_76.6 P80 BN80B4
0,75	20.3	329	1.8	69.1	6500	F 313_69.1 S2 M2SA4	F 313_69.1 P80 BN80B4
0,75	21.1	317	3.5	66.5	8500	F 413_66.5 S2 M2SA4	F 413_66.5 P80 BN80B4
0,75	21.4	311	1.3	65.3	5180	F 253_65.3 S2 M2SA4	F 253_65.3 P80 BN80B4
0,75	22.3	299	2.0	62.8	6500	F 313_62.8 S2 M2SA4	F 313_62.8 P80 BN80B4
0,75	24.0	278	1.4	58.3	5080	F 253_58.3 S2 M2SA4	F 253_58.3 P80 BN80B4
0,75	24.7	276	0.9	56.7	3590	F 202_56.7 S2 M2SA4	F 202_56.7 P80 BN80B4
0,75	26.9	248	2.4	52.1	6500	F 313_52.1 S2 M2SA4	F 313_52.1 P80 BN80B4
0,75	27.6	247	1.0	50.7	3510	F 202_50.7 S2 M2SA4	F 202_50.7 P80 BN80B4
0,75	27.6	242	1.7	50.8	4960	F 253_50.8 S2 M2SA4	F 253_50.8 P80 BN80B4
0,75	29.4	226	2.6	47.5	6500	F 313_47.5 S2 M2SA4	F 313_47.5 P80 BN80B4
0,75	31	218	1.1	44.8	3420	F 202_44.8 S2 M2SA4	F 202_44.8 P80 BN80B4
0,75	31	217	1.8	45.6	4860	F 253_45.6 S2 M2SA4	F 253_45.6 P80 BN80B4
0,75	31	217	2.8	44.6	6500	F 312 44.6 S2 M2SA4	F 312_44.6 P80 BN80B4
0,75	32	216	1.8	44.4	4890	F 252_44.4 S2 M2SA4	F 252_44.4 P80 BN80B4
0,75	33	203	1.2	41.8	3370	F 202_41.8 S2 M2SA4	F 202_41.8 P80 BN80B4
0,75	34	198	1.9	40.7	4790	F 252_40.7 S2 M2SA4	F 252_40.7 P80 BN80B4
0,75	35	196	3.1	40.4	6500	F 312_40.4 S2 M2SA4	F 312_40.4 P80 BN80B4
0,75	37	184	1.4	37.9	3300	F 202_37.9 S2 M2SA4	F 202_37.9 P80 BN80B4
0,75	37	183	3.3	37.7	6500	F 312_37.7 S2 M2SA4	F 312_37.7 P80 BN80B4
0,75	38	177	2.3	36.4	4680	F 252_36.4 S2 M2SA4	F 252_36.4 P80 BN80B4
0,75	42	161	1.6	33.1	3200	F 202_33.1 S2 M2SA4	F 202_33.1 P80 BN80B4
0,75	44	156	2.6	32.2	4540	F 252_32.2 S2 M2SA4	F 252_32.2 P80 BN80B4
0,75	46	148	1.7	30.4	3140	F 202_30.4 S2 M2SA4	F 202_30.4 P80 BN80B4
0,75	47	144	1.0	29.6	2550	F 102_29.6 S2 M2SA4	F 102_29.6 P80 BN80B4
0,75	47	146	2.7	30.0	4470	F 252_30.0 S2 M2SA4	F 252_30.0 P80 BN80B4
0,75	51	132	3.0	27.2	4360	F 252_27.2 S2 M2SA4	F 252_27.2 P80 BN80B4
0,75	54	125	1.1	25.8	2470	F 102_25.8 S2 M2SA4	F 102_25.8 P80 BN80B4
0,75	54	126	1.9	25.9	3020	F 202_25.9 S2 M2SA4	F 202_25.9 P80 BN80B4
0,75	59	116	3.5	23.8	4210	F 252_23.8 S2 M2SA4	F 252_23.8 P80 BN80B4
0,75	60	113	2.1	23.1	2930	F 202_23.1 S2 M2SA4	F 202_23.1 P80 BN80B4
0,75	61	111	1.3	22.8	2400	F 102_22.8 S2 M2SA4	F 102_22.8 P80 BN80B4
0,75	69	98	2.3	20.2	2830	F 202_20.2 S2 M2SA4	F 202_20.2 P80 BN80B4
0,75	72	94	1.4	19.3	2310	F 102_19.3 S2 M2SA4	F 102_19.3 P80 BN80B4
0,75	77	88	2.4	18.1	2740	F 202_18.1 S2 M2SA4	F 202_18.1 P80 BN80B4
0,75	82	83	1.6	17.0	2230	F 102_17.0 S2 M2SA4	F 102_17.0 P80 BN80B4
0,75	95	72	2.8	14.8	2600	F 202_14.8 S2 M2SA4	F 202_14.8 P80 BN80B4
0,75	96	71	1.7	14.6	2150	F 102_14.6 S2 M2SA4	F 102_14.6 P80 BN80B4
0,75	107	63	1.6	13.0	2070	F 102_13.0 S2 M2SA4	F 102_13.0 P80 BN80B4
0,75	121	56	1.7	11.5	2010	F 102_11.5 S2 M2SA4	F 102_11.5 P80 BN80B4
0,75	125	55	3.2	11.2	2390	F 202_11.2 S2 M2SA4	F 202_11.2 P80 BN80B4
0,75	143	48	1.9	9.8	1920	F 102_9.8 S2 M2SA4	F 102_9.8 P80 BN80B4
0,75	163	42	2.0	8.6	1850	F 102_8.6 S2 M2SA4	F 102_8.6 P80 BN80B4
0,75	189	36	2.1	7.4	1770	F 102_7.4 S2 M2SA4	F 102_7.4 P80 BN80B4
0,75	192	35	2.6	14.6	1770	F 102_14.6 S1 M1LA2	F 102_14.6 P80 BN80A2
0,75	216	32	2.7	13.0	1710	F 102_13.0 S1 M1LA2	F 102_13.0 P80 BN80A2
0,75	244	28	2.8	11.5	1650	F 102_11.5 S1 M1LA2	F 102_11.5 P80 BN80A2
0,75	288	24	3.1	9.8	1570	F 102_9.8 S1 M1LA2	F 102_9.8 P80 BN80A2
0,75	327	21	3.2	8.6	1510	F 102_8.6 S1 M1LA2	F 102_8.6 P80 BN80A2
0,75	380	18	3.5	7.4	1440	F 102_7.4 S1 M1LA2	F 102_7.4 P80 BN80A2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
1,1	0.59	16336	0.9	1571	55000	F 904_1571 S3 M3SA6	F 904_1571 P90 BN90L6
1,1	0.64	14845	0.9	1428	55000	F 904_1428 S3 M3SA6	F 904_1428 P90 BN90L6
1,1	0.67	14338	1.0	2099	55000	F 904_2099 S2 M2SB4	F 904_2099 P90 BN90S4
1,1	0.72	13235	1.1	1937	55000	F 904_1937 S2 M2SB4	F 904_1937 P90 BN90S4
1,1	0.82	11630	1.2	1702	55000	F 904_1702 S2 M2SB4	F 904_1702 P90 BN90S4
1,1	0.89	10735	1.3	1571	55000	F 904_1571 S2 M2SB4	F 904_1571 P90 BN90S4
1,1	0.98	9755	1.4	1428	55000	F 904_1428 S2 M2SB4	F 904_1428 P90 BN90S4
1,1	1.1	8727	0.9	1277	45000	F 804_1277 S2 M2SB4	F 804_1277 P90 BN90S4
1,1	1.1	9005	1.6	1318	55000	F 904_1318 S2 M2SB4	F 904_1318 P90 BN90S4
1,1	1.2	7831	1.0	1146	45000	F804_1146 S2 M2SB4	F 804_1146 P90 BN90S4
1,1	1.2	8232	1.7	1205	55000	F 904_1205 S2 M2SB4	F 904_1205 P90 BN90S4
1,1	1.3	7229	1.1	1058	45000	F 804_1058 S2 M2SB4	F 804_1058 P90 BN90S4
1,1	1.3	7599	1.8	1112	55000	F 904_1112 S2 M2SB4	F 904_1112 P90 BN90S4
1,1	1.5	6218	2.3	910.2	55000	F 904_910.2 S2 M2SB4	F 904_910.2 P90 BN90S4
1,1	1.6	6130	1.3	897.3	45000	F 804_897.3 S2 M2SB4	F 804_897.3 P90 BN90S4
1,1	1.7	5617	0.9	822.2	35000	F 704_822.2 S2 M2SB4	F 704_822.2 P90 BN90S4
1,1	1.8	5291	1.5	774.4	45000	F 804_774.4 S2 M2SB4	F 804_774.4 P90 BN90S4
1,1	1.8	5284	2.6	773.4	55000	F 904_773.4 S2 M2SB4	F 904_773.4 P90 BN90S4
1,1	1.9	5085	1.6	489.1	45000	F 804_489.1 S3 M3SA6	F 804_489.1 P90 BN90L6
1,1	1.9	5152	2.7	495.6	55000	F 904_495.6 S3 M3SA6	F 904_495.6 P90 BN90L6
1,1	2.0	4898	1.0	471.2	35000	F 704_471.2 S3 M3SA6	F 704_471.2 P90 BN90L6
1,1	2.0	4694	1.7	451.5	45000	F 804_451.5 S3 M3SA6	F 804_451.5 P90 BN90L6
1,1	2.0	4884	1.6	714.9	45000	F 804_714.9 S2 M2SB4	F 804_714.9 P90 BN90S4
1,1	2.1	4491	1.1	657.4	35000	F 704_657.4 S2 M2SB4	F 704_657.4 P90 BN90S4
1,1	2.2	4274	3.3	625.6	55000	F 904_625.6 S2 M2SB4	F 904_625.6 P90 BN90S4
1,1	2.3	4146	1.2	606.8	35000	F 704_606.8 S2 M2SB4	F 704_606.8 P90 BN90S4
1,1	2.3	4173	1.9	610.9	45000	F 804_610.9 S2 M2SB4	F 804_610.9 P90 BN90S4
1,1	2.4	3945	3.5	577.5	55000	F 904_577.5 S2 M2SB4	F 904_577.5 P90 BN90S4
1,1	2.5	3852	2.1	563.9	45000	F 804_563.9 S2 M2SB4	F 804_563.9 P90 BN90S4
1,1	2.7	3487	1.4	510.4	35000	F 704_510.4 S2 M2SB4	F 704_510.4 P90 BN90S4
1,1	2.9	3347	0.9	489.8	20000	F 604_489.8 S2 M2SB4	F 604_489.8 P90 BN90S4
1,1	2.9	3342	2.4	489.1	45000	F 804_489.1 S2 M2SB4	F 804_489.1 P90 BN90S4
1,1	3.0	3219	1.6	471.2	35000	F 704_471.2 S2 M2SB4	F 704_471.2 P90 BN90S4
1,1	3.1	3085	2.6	451.5	45000	F 804_451.5 S2 M2SB4	F 804_451.5 P90 BN90S4
1,1	3.2	2956	1.0	432.6	20000	F 604_432.6 S2 M2SB4	F 604_432.6 P90 BN90S4
1,1	3.5	2728	1.1	399.3	20000	F 604_399.3 S2 M2SB4	F 604_399.3 P90 BN90S4
1,1	3.5	2757	1.8	403.5	35000	F 704_403.5 S2 M2SB4	F 704_403.5 P90 BN90S4
1,1	3.7	2618	3.1	383.2	45000	F 804_383.2 S2 M2SB4	F 804_383.2 P90 BN90S4
1,1	3.8	2545	2.0	372.5	35000	F 704_372.5 S2 M2SB4	F 704_372.5 P90 BN90S4
1,1	4.0	2416	3.3	353 7	45000	F 804_353.7 S2 M2SB4	F 804_353.7 P90 BN90S4
1,1	4.1	2334	1.2	341.7	20000	F 604_341.7 S2 M2SB4	F 604_341.7 P90 BN90S4
1,1	4.4	2155	1.3	315.4	20000	F 604_315.4 S2 M2SB4	F 604_315.4 P90 BN90S4
1,1	4.6	2079	2.4	304.3	35000	F 704_304.3 S2 M2SB4	F 704_304.3 P90 BN90S4
1,1	4.9	1996	0.9	285.9	12000	F 513_285.9 S2 M2SB4	F 513_285.9 P90 BN90S4
1,1	5.0	1960	1.5	280.7	20000	F 603_280.7 S2 M2SB4	F 603_280.7 P90 BN90S4
1,1	5.0	1919	2.6	280.9	35000	F 704_280.9 S2 M2SB4	F 704_280.9 P90 BN90S4
1,1	5.3	1830	1.0	262.1	12000	F 513_262.1 S2 M2SB4	F 513_262.1 P90 BN90S4
1,1	5.8	1675	1.1	239.8	12000	F 513_239.8 S2 M2SB4	F 513_239.8 P90 BN90S4
1,1	6.0	1603	3.1	234.6	35000	F 704_234.6 S2 M2SB4	F 704_234.6 P90 BN90S4
1,1	6.5	1514	1.2	216.9	12000	F 513_216.9 S2 M2SB4	F 513_216.9 P90 BN90S4
1,1	6.5	1479	3.4	216.5	35000	F 704_216.5 S2 M2SB4	F 704_216.5 P90 BN90S4
1,1	6.9	1413	1.3	202.4	12000	F 513_202.4 S2 M2SB4	F 513_202.4 P90 BN90S4
1,1	8.3	1178	0.9	168.7	8500	F 413_168.7 S2 M2SB4	F 413_168.7 P90 BN90S4
1,1	8.5	1156	1.6	165.6	12000	F 513_165.6 S2 M2SB4	F 513_165.6 P90 BN90S4
1,1	10.4	938	1.2	134.4	8500	F 413_134.4 S2 M2SB4	F 413_134.4 P90 BN90S4
1,1	10.8	907	2.0	129.9	12000	F 513_129.9 S2 M2SB4	F 513_129.9 P90 BN90S4
1,1	13.2	740	1.5	106.0	8500	F 413_106.0 S2 M2SB4	F 413_106.0 P90 BN90S4
1,1	13.3	734	2.5	105.1	12000	F 513_105.1 S2 M2SB4	F 513_105.1 P90 BN90S4
1,1	16.0	610	1.0	87.4	6500	F 313_87.4 S2 M2SB4	F 313_87.4 P90 BN90S4
1,1	16.5	593	1.9	84.9	8500	F 413_84.9 S2 M2SB4	F 413_84.9 P90 BN90S4
1,1	16.8	581	3.1	83.2	12000	F 513_83.2 S2 M2SB4	F 513_83.2 P90 BN90S4
1,1	17.8	551	1.1	78.9	6500	F 313_78.9 S2 M2SB4	F 313_78.9 P90 BN90S4
1,1	20.3	482	1.2	69.1	6500	F 313_69.1 S2 M2SB4	F 313_69.1 P90 BN90S4
1,1	21.1	464	2.4	66.5	8500	F 413_66.5 S2 M2SB4	F 413_66.5 P90 BN90S4
1,1	22.3	438	1.4	62.8	6500	F 313_62.8 S2 M2SB4	F 313_62.8 P90 BN90S4
1,1	23.2	421	2.6	60.2	8500	F 413_60.2 S2 M2SB4	F 413_60.2 P90 BN90S4
1,1	24.0	407	1.0	58.3	4500	F 253_58.3 S2 M2SB4	F 253_58.3 P90 BN90S4
1,1	26.9	364	1.6	52.1	6500	F 313_52.1 S2 M2SB4	F 313_52.1 P90 BN90S4
1,1	27.2	360	3.0	51.5	8500	F 413_51.5 S2 M2SB4	F 413_51.5 P90 BN90S4
1,1	27.6	355	1.1	50.8	4450	F 253_50.8 S2 M2SB4	F 253_50.8 P90 BN90S4
1,1	29.2	342	3.1	47.9	8500	F 412_47.9 S2 M2SB4	F 412_47.9 P90 BN90S4
1,1	29.4	332	1.7	47.5	6500	F 313_47.5 S2 M2SB4	F 313_47.5 P90 BN90S4
1,1	31	318	1.3	45.6	4400	F 253_45.6 S2 M2SB4	F 253_45.6 P90 BN90S4
1,1	31	318	1.9	44.6	6500	F 312_44.6 S2 M2SB4	F 312_44.6 P90 BN90S4
1,1	32	317	1.2	44.4	4470	F 252_44.4 S2 M2SB4	F 252_44.4 P90 BN90S4
1,1	34	290	1.3	40.7	4410	F 252_40.7 S2 M2SB4	F 252_40.7 P90 BN90S4
1,1	35	288	2.1	40.4	6500	F 312_40.4 S2 M2SB4	F 312_40.4 P90 BN90S4
1,1	37	270	0.9	37.9	3050	F 202_37.9 S2 M2SB4	F 202_37.9 P90 BN90S4
1,1	37	269	2.2	37.7	6500	F 312_37.7 S2 M2SB4	F 312_37.7 P90 BN90S4
1,1	38	260	1.5	36.4	4330	F 252_36.4 S2 M2SB4	F 252_36.4 P90 BN90S4
1,1	41	245	2.4	34.4	6500	F 312_34.4 S2 M2SB4	F 312_34.4 P90 BN90S4
1,1	42	236	1.1	33.1	2980	F 202_33.1 S2 M2SB4	F 202_33.1 P90 BN90S4
1,1	44	230	1.7	32.2	4240	F 252_32.2 S2 M2SB4	F 252_32.2 P90 BN90S4
1,1	46	217	1.2	30.4	2930	F 202_30.4 S2 M2SB4	F 202_30.4 P90 BN90S4
1,1	46	215	2.8	30.1	6500	F 312_30.1 S2 M2SB4	F 312_30.1 P90 BN90S4
1,1	47	214	1.9	30.0	4190	F 252_30.0 S2 M2SB4	F 252_30.0 P90 BN90S4
1,1	51	194	2.1	27.2	4100	F 252_27.2 S2 M2SB4	F 252_27.2 P90 BN90S4
1,1	51	195	3.1	27.3	6500	F 312_27.3 S2 M2SB4	F 312_27.3 P90 BN90S4
1,1	54	185	1.3	25.9	2840	F 202_25.9 S2 M2SB4	F 202_25.9 P90 BN90S4
1,1	59	169	2.4	23 8	3990	F 252_23.8 S2 M2SB4	F 252_23.8 P90 BN90S4
1,1	60	165	1.4	23.1	2780	F 202_23.1 S2 M2SB4	F 202_23.1 P90 BN90S4
1,1	64	156	2.6	21.8	3920	F 252_21.8 S2 M2SB4	F 252 21.8 P90 BN90S4
1,1	69	144	1.6	20.2	2690	F 202_20.2 S2 M2SB4	F 202_20.2 P90 BN90S4
1,1	72	138	1.0	19.3	2170	F 102_19.3 S2 M2SB4	F 102_19.3 P90 BN90S4
1,1	75	133	3.0	18.6	3780	F 252_18.6 S2 M2SB4	F 252_18.6 P90 BN90S4
1,1	77	129	1.7	18.1	2620	F 202_18.1 S2 M2SB4	F 202_18.1 P90 BN90S4
1,1	82	121	1.1	17.0	2110	F 102_17.0 S2 M2SB4	F 102_17.0 P90 BN90S4
1,1	84	119	3.4	16.6	3670	F 252_16.6 S2 M2SB4	F 252_16.6 P90 BN90S4
1,1	95	106	1.9	14.8	2500	F 202_14.8 S2 M2SB4	F 202_14.8 P90 BN90S4
1,1	96	104	1.1	14.6	2050	F 102_14.6 S2 M2SB4	F 102_14.6 P90 BN90S4
1,1	107	93	1.1	13.0	1980	F 102_13.0 S2 M2SB4	F 102_13.0 P90 BN90S4
1,1	121	82	1.2	11.5	1920	F 102_11.5 S2 M2SB4	F 102_11.5 P90 BN90S4
1,1	125	80	2.2	11.2	2310	F 202_11.2 S2 M2SB4	F 202_11.2 P90 BN90S4
1,1	143	70	1.3	9.8	1840	F 102_9.8 S2 M2SB4	F 102_9.8 P90 BN90S4
1,1	160	62	2.5	8.7	2160	F 202_8.7 S2 M2SB4	F 202_8.7 P90 BN90S4
1,1	163	61	1.3	8.6	1780	F 102_8.6 S2 M2SB4	F 102_8.6 P90 BN90S4
1,1	179	56	2.6	7.8	2100	F 202_7.8 S2 M2SB4	F 202_7.8 P90 BN90S4
1,1	189	53	1.4	7.4	1720	F 102_7.4 S2 M2SB4	F 102_7.4 P90 BN90S4
1,1	218	46	2.8	6.4	1980	F 202_6.4 S2 M2SB4	F 202_6.4 P90 BN90S4
1,1	243	41	1.9	11.5	1600	F 102_11.5 S2 M2SA2	F 102_11.5 P80 BN80B2
1,1	249	40	3.5	11.2	1910	F 202_11.2 S2 M2SA2	F202_11.2 P80 BN80B2
1,1	287	35	2.1	9.8	1530	F 102_9.8 S2 M2SA2	F 102_9.8 P80 BN80B2
1,1	326	31	2.2	8.6	1480	F 102_8.6 S2 M2SA2	F 102_8.6 P80 BN80B2
1,1	378	26	2.4	7.4	1410	F 102_7.4 S2 M2SA2	F 102_7.4 P80 BN80B2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
1,5	0.83	15747	0.9	1702	55000	F 904_1702 S3 M3SA4	F 904_1702 P90 BN90LA4
1,5	0.90	14535	1.0	1571	55000	F 904_1571 S3 M3SA4	F 904_1571 P90 BN90LA4
1,5	0.99	13208	1.1	1428	55000	F 904_1428 S3 M3SA4	F 904_1428 P90 BN90LA4
1,5	1.1	12192	1.1	1318	55000	F 904_1318 S3 M3SA4	F 904_1318 P90 BN90LA4
1,5	1.2	11146	1.3	1205	55000	F 904_1205 S3 M3SA4	F 904_1205 P90 BN90LA4
1,5	1.3	10288	1.4	1112	55000	F 904_1112 S3 M3SA4	F 904_1112 P90 BN90LA4
1,5	1.5	8419	1.7	910.2	55000	F 904_910.2 S3 M3SA4	F 904_910.2 P90 BN90LA4
1,5	1.6	8300	1.0	897.3	45000	F 804_897.3 S3 M3SA4	F 804_897.3 P90 BN90LA4
1,5	1.8	7164	1.1	774.4	45000	F 804_774.4 S3 M3SA4	F 804_774.4 P90 BN90LA4
1,5	1.8	7154	2.0	7734	55000	F 904_773.4 S3 M3SA4	F 904_773.4 P90 BN90LA4
1,5	2.0	6612	1.2	714.9	45000	F 804_714.9 S3 M3SA4	F 804_714.9 P90 BN90LA4
1,5	2.3	5613	0.9	606.8	35000	F 704_606.8 S3 M3SA4	F 704_606.8 P90 BN90LA4
1,5	2.3	5651	1.4	610.9	45000	F 804_610.9 S3 M3SA4	F 804_610.9 P90 BN90LA4
1,5	2.3	5787	2.4	625.6	55000	F 904_625.6 S3 M3SA4	F 904_625.6 P90 BN90LA4
1,5	2.4	5342	2.6	577.5	55000	F 904_577.5 S3 M3SA4	F 904_577.5 P90 BN90LA4
1,5	2.5	5216	1.5	563.9	45000	F 804_563.9 S3 M3SA4	F 804_563.9 P90 BN90LA4
1,5	2.8	4721	1.1	510.4	35000	F 704_510.4 S3 M3SA4	F 704_510.4 P90 BN90LA4
1,5	2.8	4584	3.1	495.6	55000	F 904_495.6 S3 M3SA4	F 904_495.6 P90 BN90LA4
1,5	2.9	4524	1.8	489.1	45000	F 804_489.1 S3 M3SA4	F 804_489.1 P90 BN90LA4
1,5	3.0	4358	1.1	471.2	35000	F 704_471.2 S3 M3SA4	F 704_471.2 P90 BN90LA4
1,5	3.1	4176	1.9	451.5	45000	F 804_451.5 S3 M3SA4	F 804_451.5 P90 BN90LA4
1,5	3.1	4231	3.3	457.5	55000	F 904_457.5 S3 M3SA4	F 904_457.5 P90 BN90LA4
1,5	3.5	3732	1.3	403.5	35000	F 704_403.5 S3 M3SA4	F 704_403.5 P90 BN90LA4
1,5	3.7	3544	2.3	383.2	45000	F 804_383.2 S3 M3SA4	F 804_383.2 P90 BN90LA4
1,5	3.8	3445	1.5	372.5	35000	F 704_372.5 S3 M3SA4	F 704_372.5 P90 BN90LA4
1,5	4.0	3272	2.4	353.7	45000	F 804_353.7 S3 M3SA4	F 804_353.7 P90 BN90LA4
1,5	4.1	3160	0.9	341.7	20000	F 604_341.7 S3 M3SA4	F 604_341.7 P90 BN90LA4
1,5	4.5	2917	1.0	315.4	20000	F 604_315.4 S3 M3SA4	F 604_315.4 P90 BN90LA4
1,5	4.6	2815	1.8	304.3	35000	F 704_304.3 S3 M3SA4	F 704_304.3 P90 BN90LA4
1,5	4.8	2745	2.9	296.7	45000	F 804_296.7 S3 M3SA4	F 804_296.7 P90 BN90LA4
1,5	5.0	2653	1.1	280.7	20000	F 603_280.7 S3 M3SA4	F 603_280.7 P90 BN90LA4
1,5	5.0	2599	1.9	280.9	35000	F 704_280.9 S3 M3SA4	F 704_280.9 P90 BN90LA4
1,5	5.1	2534	3.2	273.9	45000	F 804_273.9 S3 M3SA4	F 804_273.9 P90 BN90LA4
1,5	5.4	2449	1.2	259.1	20000	F 603_259.1 S3 M3SA4	F 603_259.1 P90 BN90LA4
1,5	6.0	2229	1.3	235.8	20000	F 603_235.8 S3 M3SA4	F 603_235.8 P90 BN90LA4
1,5	6.0	2170	2.3	234.6	35000	F 704_234.6 S3 M3SA4	F 704_234.6 P90 BN90LA4
1,5	6.5	2057	1.4	217.6	20000	F 603_217.6 S3 M3SA4	F 603_217.6 P90 BN90LA4
1,5	6.5	2003	2.5	216.5	35000	F 704_216.5 S3 M3SA4	F 704_216.5 P90 BN90LA4
1,5	7.0	1913	0.9	202.4	12000	F 513_202.4 S3 M3SA4	F 513_202.4 P90 BN90LA4
1,5	7.0	1904	1.5	201 4	20000	F 603_201.4 S3 M3SA4	F 603_201.4 P90 BN90LA4
1,5	7.2	1853	2.7	196.0	35000	F 703_196.0 S3 M3SA4	F 703_196.0 P90 BN90LA4
1,5	7.6	1757	1.7	185.9	20000	F 603_185.9 S3 M3SA4	F 603_185.9 P90 BN90LA4
1,5	7.8	1711	2.9	180.9	35000	F 703_180.9 S3 M3SA4	F 703_180.9 P90 BN90LA4
1,5	8.5	1566	1.1	165.6	12000	F 513_165.6 S3 M3SA4	F 513_165.6 P90 BN90LA4
1,5	8.5	1576	3.2	166.7	35000	F 703_166.7 S3 M3SA4	F 703_166.7 P90 BN90LA4
1,5	8.7	1540	1.9	162.9	20000	F 603_162.9 S3 M3SA4	F 603_162.9 P90 BN90LA4
1,5	9.2	1454	3.4	153.8	35000	F 703_153.8 S3 M3SA4	F 703_153.8 P90 BN90LA4
1,5	9.4	1421	2.0	150.4	20000	F 603_150.4 S3 M3SA4	F 603_150.4 P90 BN90LA4
1,5	10.8	1234	2.4	130.5	20000	F 603_130.5 S3 M3SA4	F 603_130.5 P90 BN90LA4
1,5	10.9	1228	1.5	129.9	12000	F 513_129.9 S3 M3SA4	F 513_129.9 P90 BN90LA4
1,5	11.7	1139	2.5	120.5	20000	F 603_120.5 S3 M3SA4	F 603_120.5 P90 BN90LA4
1,5	13.3	1002	1.1	106.0	8500	F 413_106.0 S3 M3SA4	F 413_106.0 P90 BN90LA4
1,5	13.3	1006	2.9	106.4	20000	F 603_106.4 S3 M3SA4	F 603_106.4 P90 BN90LA4
1,5	13.4	993	1.8	105.1	12000	F 513_105.1 S3 M3SA4	F 513_105.1 P90 BN90LA4
1,5	14.4	928	3.1	98.2	20000	F 603_98.2 S3 M3SA4	F 603_98.2 P90 BN90LA4
1,5	16.6	802	1.4	84.9	8500	F 413_84.9 S3 M3SA4	F 413_84.9 P90 BN90LA4
1,5	16.9	787	2.3	83.2	12000	F 513_83.2 S3 M3SA4	F 513_83.2 P90 BN90LA4
1,5	20.4	653	0.9	69.1	6500	F 313_69.1 S3 M3SA4	F 313_69.1 P90 BN90LA4
1,5	21.2	629	1.7	66.5	8500	F 413_66.5 S3 M3SA4	F 413_66.5 P90 BN90LA4
1,5	21.4	622	2.9	65.8	12000	F 513_65.8 S3 M3SA4	F 513_65.8 P90 BN90LA4
1,5	22.5	593	1.0	62.8	6500	F 313_62.8 S3 M3SA4	F 313_62.8 P90 BN90LA4
1,5	23.4	570	1.9	60.2	8500	F 413_60.2 S3 M3SA4	F 413_60.2 P90 BN90LA4
1,5	27.1	492	1.2	52.1	6500	F 313_52.1 S3 M3SA4	F 313_52.1 P90 BN90LA4
1,5	27.4	487	2.2	51.5	8500	F 413_51.5 S3 M3SA4	F 413_51.5 P90 BN90LA4
1,5	29.4	463	2.3	47.9	8500	F 412_47.9 S3 M3SA4	F 412_47.9 P90 BN90LA4
1,5	29.7	449	1.3	47.5	6500	F 313_47.5 S3 M3SA4	F 313_47.5 P90 BN90LA4
1,5	31	431	0.9	45.6	3880	F 253_45.6 S3 M3SA4	F 253_45.6 P90 BN90LA4
1,5	32	431	1.4	44.6	6500	F 312_44.6 S3 M3SA4	F 312_44.6 P90 BN90LA4
1,5	35	393	1.0	40.7	3970	F 252_40.7 S3 M3SA4	F 252_40.7 P90 BN90LA4
1,5	35	390	1.5	40.4	6500	F 312_40.4 S3 M3SA4	F 312_40.4 P90 BN90LA4
1,5	37	364	1.6	37.7	6500	F 312_37.7 S3 M3SA4	F 312_37.7 P90 BN90LA4
1,5	37	369	3.0	38.2	8500	F 412_38.2 S3 M3SA4	F 412_38.2 P90 BN90LA4
1,5	39	352	1.1	36.4	3940	F 252_36.4 S3 M3SA4	F 252 36.4 P90 BN90LA4
1,5	41	332	1.8	34.4	6500	F 312_34.4 S3 M3SA4	F 312_34.4 P90 BN90LA4
1,5	44	311	1.3	32.2	3890	F 252_32.2 S3 M3SA4	F 252_32.2 P90 BN90LA4
1,5	47	290	1.4	30.0	3860	F 252_30.0 S3 M3SA4	F 252_30.0 P90 BN90LA4
1,5	47	291	2.1	30.1	6500	F 312_30.1 S3 M3SA4	F 312_30.1 P90 BN90LA4
1,5	52	263	1.5	27.2	3810	F 252_27.2 S3 M3SA4	F 252_27.2 P90 BN90LA4
1,5	52	263	2.3	27.3	6500	F 312_27.3 S3 M3SA4	F 312_27.3 P90 BN90LA4
1,5	54	250	1.0	25.9	2640	F 202_25.9 S3 M3SA4	F 202_25.9 P90 BN90LA4
1,5	59	229	1.7	23.8	3730	F 252_23.8 S3 M3SA4	F 252_23.8 P90 BN90LA4
1,5	60	226	2.7	23.4	6480	F 312_23.4 S3 M3SA4	F 312_23.4 P90 BN90LA4
1,5	61	224	1.1	23.1	2600	F 202_23.1 S3 M3SA4	F 202_23.1 P90 BN90LA4
1,5	65	211	1.9	21.8	3680	F 252_21.8 S3 M3SA4	F 252_21.8 P90 BN90LA4
1,5	67	204	2.9	21.1	6320	F 312_21.1 S3 M3SA4	F 312_21.1 P90 BN90LA4
1,5	70	195	1.1	20.2	2530	F 202_20.2 S3 M3SA4	F 202_20.2 P90 BN90LA4
1,5	76	180	2.2	18.6	3570	F 252_18.6 S3 M3SA4	F 252_18.6 P90 BN90LA4
1,5	76	179	3.4	18.5	6110	F 312_18.5 S3 M3SA4	F 312_18.5 P90 BN90LA4
1,5	78	175	1.2	18.1	2480	F 202_18.1 S3 M3SA4	F 202_18.1 P90 BN90LA4
1,5	85	161	2.5	16.6	3490	F 252_16.6 S3 M3SA4	F 252_16.6 P90 BN90LA4
1,5	95	143	1.4	14.8	2380	F 202_14.8 S3 M3SA4	F 202_14.8 P90 BN90LA4
1,5	97	140	2.9	14.5	3390	F 252_14.5 S3 M3SA4	F 252_14.5 P90 BN90LA4
1,5	109	125	3.2	13.0	3310	F 252_13.0 S3 M3SA4	F 252_13.0 P90 BN90LA4
1,5	126	108	1.6	11.2	2220	F 202_11.2 S3 M3SA4	F 202_11.2 P90 BN90LA4
1,5	144	94	0.9	9.8	1760	F 102_9.8 S3 M3SA4	F 102_9.8 P90 BN90LA4
1,5	151	90	2.9	9.4	3070	F 252_9.4 S3 M3SA4	F 252_9.4 P90 BN90LA4
1,5	161	84	1.8	8.7	2090	F 202_8.7 S3 M3SA4	F 202_8.7 P90 BN90LA4
1,5	164	83	1.0	8.6	1710	F 102_8.6 S3 M3SA4	F 102_8.6 P90 BN90LA4
1,5	168	81	3.2	8.4	2980	F 252_8.4 S3 M3SA4	F 252_8.4 P90 BN90LA4
1,5	180	76	1.9	7.8	2030	F 202_7.8 S3 M3SA4	F 202_7.8 P90 BN90LA4
1,5	190	72	1.1	7.4	1650	F 102_7.4 S3 M3SA4	F 102_7.4 P90 BN90LA4
1,5	220	62	2.1	6.4	1930	F 202_6.4 S3 M3SA4	F 202_6.4 P90 BN90LA4
1,5	243	56	1.4	11.5	1560	F 102_11.5 S2 M2SB2	F 102_11.5 P90 BN90SA2
1,5	249	55	2.6	11.2	1860	F 202_11.2 S2 M2SB2	F 202_11.2 P90 BN90SA2
1,5	287	48	1.5	9.8	1490	F 102_9.8 S2 M2SB2	F 102_9.8 P90 BN90SA2
1,5	321	42	2.9	8.7	1740	F 202_8.7 S2 M2SB2	F 202_8.7 P90 BN90SA2
1,5	326	42	1.6	8.6	1440	F 102_8.6 S2 M2SB2	F 102_8.6 P90 BN90SA2
1,5	357	38	3.0	7.8	1680	F 202_7.8 S2 M2SB2	F 202_7.8 P90 BN90SA2
1,5	378	36	1.7	7.4	1380	F 102_7.4 S2 M2SB2	F 102_7.4 P90 BN90SA2
1,5	437	31	3.3	6.4	1590	F 202_6.4 S2 M2SB2	F 202_6.4 P90 BN90SA2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
2,2	1.2	16347	0.9	1205	55000	F 904_1205 S3 M3LA4	F 904_1205 P100 BN100LA4
2,2	1.3	15090	0.9	1112	55000	F 904_1112 S3 M3LA4	F 904_1112 P100 BN100LA4
2,2	1.5	12348	1.1	910.2	55000	F 904_910.2 S3 M3LA4	F 904_910.2 P100 BN100LA4
2,2	1.8	10493	1.3	773.4	55000	F 904_773.4 S3 M3LA4	F 904_773.4 P100 BN100LA4
2,2	2.3	8287	1.0	610.9	45000	F 804_610.9 S3 M3LA4	F 804_610.9 P100 BN100LA4
2,2	2.3	8488	1.6	625.6	55000	F 904_625.6 S3 M3LA4	F 904_625.6 P100 BN100LA4
2,2	2.4	7835	1.8	577.5	55000	F 904_577.5 S3 M3LA4	F 904_577.5 P100 BN100LA4
2,2	2.5	7650	1.0	563.9	45000	F 804_563.9 S3 M3LA4	F 804_563.9 P100 BN100LA4
2,2	2.8	6723	2.1	495.6	55000	F 904_495.6 S3 M3LA4	F 904_495.6 P100 BN100LA4
2,2	2.9	6636	1.2	489.1	45000	F 804_489.1 S3 M3LA4	F 804_489.1 P100 BN100LA4
2,2	3.1	6125	1.3	451.5	45000	F 804_451.5 S3 M3LA4	F 804_451.5 P100 BN100LA4
2,2	3.1	6206	2.3	457.5	55000	F 904_457.5 S3 M3LA4	F 904_457.5 P100 BN100LA4
2,2	3.5	5474	0.9	403.5	35000	F 704_403.5 S3 M3LA4	F 704_403.5 P100 BN100LA4
2,2	3.7	5198	1.5	383.2	45000	F 804_383.2 S3 M3LA4	F 804_383.2 P100 BN100LA4
2,2	3.8	5053	1.0	372.5	35000	F 704_372.5 S3 M3LA4	F 704_372.5 P100 BN100LA4
2,2	3.9	4909	2.9	361.8	55000	F 904_361.8 S3 M3LA4	F 904_361.8 P100 BN100LA4
2,2	4.0	4798	1.7	353.7	45000	F 804_353.7 S3 M3LA4	F 804_353.7 P100 BN100LA4
2,2	4.6	4129	1.2	304.3	35000	F 704_304.3 S3 M3LA4	F 704_304.3 P100 BN100LA4
2,2	4.8	4025	2.0	296.7	45000	F 804_296.7 S3 M3LA4	F 804_296.7 P100 BN100LA4
2,2	4.8	3950	3.5	291.1	55000	F 904_291.1 S3 M3LA4	F 904_291.1 P100 BN100LA4
2,2	5.0	3811	1.3	280.9	35000	F 704_280.9 S3 M3LA4	F 704_280.9 P100 BN100LA4
2,2	5.1	3716	2.2	273.9	45000	F 804_273.9 S3 M3LA4	F 804_273.9 P100 BN100LA4
2,2	6.0	3182	1.6	234.6	35000	F 704_234.6 S3 M3LA4	F 704_234.6 P100 BN100LA4
2,2	6.5	3018	1.0	217.6	20000	F 603_217.6 S3 M3LA4	F 603_217.6 P100 BN100LA4
2,2	6.5	2938	1.7	216.5	35000	F 704_216.5 S3 M3LA4	F 704_216.5 P100 BN100LA4
2,2	6.5	2964	2.7	218.5	45000	F 804_218.5 S3 M3LA4	F 804_218.5 P100 BN100LA4
2,2	7.0	2792	1.0	201.4	20000	F 603_201.4 S3 M3LA4	F 603_201.4 P100 BN100LA4
2,2	7.2	2718	1.8	196.0	35000	F 703_196.0 S3 M3LA4	F 703_196.0 P100 BN100LA4
2,2	7.6	2577	1.1	185.9	20000	F 603_185.9 S3 M3LA4	F 603_185.9 P100 BN100LA4
2,2	7.6	2560	3.1	184.6	45000		F 803_184.6 P100 BN100LA4
2,2	7.8	2509	2.0	180.9	35000	F 703_180.9 S3 M3LA4	F 703_180.9 P100 BN100LA4
2,2	8.5	2311	2.2	166.7	35000	F 703_166.7 S3 M3LA4	F 703_166.7 P100 BN100LA4
2,2	8.7	2258	1.3	162.9	20000	F 603_162.9 S3 M3LA4	F 603_162.9 P100 BN100LA4
2,2	9.2	2133	2.3	153.8	35000	F 703_153.8 S3 M3LA4	F 703_153.8 P100 BN100LA4
2,2	9.4	2085	1.4	150.4	20000	F 603_150.4 S3 M3LA4	F 603_150.4 P100 BN100LA4
2,2	10.6	1843	2.7	133.0	35000	F 703_133.0 S3 M3LA4	F 703_133.0 P100 BN100LA4
2,2	10.8	1809	1.6	130.5	20000	F 603_130.5 S3 M3LA4	F 603_130.5 P100 BN100LA4
2,2	10.9	1801	1.0	129.9	12000	F 513_129.9 S3 M3LA4	F 513_129.9 P100 BN100LA4
2,2	11.5	1702	2.9	122.7	35000	F 703_122.7 S3 M3LA4	F 703_122.7 P100 BN100LA4
2,2	11.7	1670	1.7	120.5	20000	F 603_120.5 S3 M3LA4	F 603_120.5 P100 BN100LA4
2,2	12.9	1520	3.3	109.6	35000	F 703_109.6 S3 M3LA4	F 703_109.6 P100 BN100LA4
2,2	13.3	1475	2.0	106.4	20000	F 603_106.4 S3 M3LA4	F 603_106.4 P100 BN100LA4
2,2	13.4	1457	1.2	105.1	12000	F 513_105.1 S3 M3LA4	F 513_105.1 P100 BN100LA4
2,2	14.4	1362	2.1	98.2	20000	F 603_98.2 S3 M3LA4	F 603_98.2 P100 BN100LA4
2,2	16.6	1177	0.9	84.9	8500	F 413_84.9 S3 M3LA4	F 413_84.9 P100 BN100LA4
2,2	16.8	1165	2.5	84.0	20000	F 603_84.0 S3 M3LA4	F 603_84.0 P100 BN100LA4
2,2	16.9	1154	1.6	83.2	12000	F 513_83.2 S3 M3LA4	F 513_83.2 P100 BN100LA4
2,2	18.2	1075	2.7	77.6	20000	F 603_77.6 S3 M3LA4	F 603_77.6 P100 BN100LA4
2,2	20.7	947	3.1	68.3	20000	F 603_68.3 S3 M3LA4	F 603_68.3 P100 BN100LA4
2,2	21.2	922	1.2	66.5	8500	F 413_66.5 S3 M3LA4	F 413_66.5 P100 BN100LA4
2,2	21.4	913	2.0	65.8	12000	F 513_65.8 S3 M3LA4	F 513_65.8 P100 BN100LA4
2,2	22.4	874	3.3	63.0	20000	F 603_63.0 S3 M3LA4	F 603_63.0 P100 BN100LA4
2,2	23.4	835	1.3	60.2	8500	F 413_60.2 S3 M3LA4	F 413_60.2 P100 BN100LA4
2,2	27.4	714	1.5	51.5	8500	F 413_51.5 S3 M3LA4	F 413_51.5 P100 BN100LA4
2,2	28.8	678	2.7	48.9	12000	F 513_48.9 S3 M3LA4	F 513_48.9 P100 BN100LA4
2,2	29.4	679	1.6	47.9	8500	F 412_47.9 S3 M3LA4	F 412_47.9 P100 BN100LA4
2,2	32	632	0.9	44.6	6500	F 312_44.6 S3 M3LA4	F 312_44.6 P100 BN100LA4
2,2	35	572	1.0	40.4	6500	F 312_40.4 S3 M3LA4	F 312_40.4 P100 BN100LA4
2,2	37	534	1.1	37.7	6500	F 312_37.7 S3 M3LA4	F 312_37.7 P100 BN100LA4
2,2	37	541	2.0	38.2	8500	F 412_38.2 S3 M3LA4	F 412_38.2 P100 BN100LA4
2,2	38	526	3.2	37.1	12000	F 512_37.1 S3 M3LA4	F 512_37.1 P100 BN100LA4
2,2	41	487	1.2	34.4	6490	F 312_34.4 S3 M3LA4	F 312_34.4 P100 BN100LA4
2,2	47	425	0.9	30.0	3300	F 252_30.0 S3 M3LA4	F 252_30.0 P100 BN100LA4
2,2	47	427	1.4	30.1	6360	F 312_30.1 S3 M3LA4	F 312_30.1 P100 BN100LA4
2,2	47	427	2.6	30.1	8500	F 412_30.1 S3 M3LA4	F 412_30.1 P100 BN100LA4
2,2	52	385	1.0	27.2	3300	F 252_27.2 S3 M3LA4	F 252_27.2 P100 BN100LA4
2,2	52	386	1.6	27.3	6250	F 312_27.3 S3 M3LA4	F 312_27.3 P100 BN100LA4
2,2	58	342	3.2	24.1	8400	F 412_24.1 S3 M3LA4	F 412_24.1 P100 BN100LA4
2,2	59	336	1.2	23.8	3290	F 252_23.8 S3 M3LA4	F 252_23.8 P100 BN100LA4
2,2	60	331	1.8	23.4	6080	F 312_23.4 S3 M3LA4	F 312_23.4 P100 BN100LA4
2,2	65	309	1.3	21.8	3270	F 252_21.8 S3 M3LA4	F 252_21.8 P100 BN100LA4
2,2	67	299	2.0	21.1	5960	F 312_21.1 S3 M3LA4	F 312_21.1 P100 BN100LA4
2,2	76	264	1.5	18.6	3220	F 252_18.6 S3 M3LA4	F 252_18.6 P100 BN100LA4
2,2	76	262	2.3	18.5	5790	F 312_18.5 S3 M3LA4	F 312_18.5 P100 BN100LA4
2,2	84	238	2.5	16.8	5670	F 312_16.8 S3 M3LA4	F 312_16.8 P100 BN100LA4
2,2	85	235	1.7	16.6	3180	F 252_16.6 S3 M3LA4	F 252_16.6 P100 BN100LA4
2,2	95	210	1.0	14.8	2190	F 202_14.8 S3 M3LA4	F 202_14.8 P100 BN100LA4
2,2	97	205	2.0	14.5	3120	F 252_14.5 S3 M3LA4	F 252_14.5 P100 BN100LA4
2,2	101	198	3.0	13.9	5430	F 312_13.9 S3 M3LA4	F 312_13.9 P100 BN100LA4
2,2	109	184	2.2	13.0	3070	F 252_13.0 S3 M3LA4	F 252_13.0 P100 BN100LA4
2,2	111	180	3.3	12.7	5310	F 312_12.7 S3 M3LA4	F 312_12.7 P100 BN100LA4
2,2	126	159	1.1	11.2	2060	F 202_11.2 S3 M3LA4	F 202_11.2 P100 BN100LA4
2,2	133	150	2.6	10.6	2960	F 252_10.6 S3 M3LA4	F 252_10.6 P100 BN100LA4
2,2	151	133	2.0	9.4	2900	F 252_9.4 S3 M3LA4	F 252_9.4 P100 BN100LA4
2,2	156	128	3.1	9.0	4830	F 312_9.0 S3 M3LA4	F 312_9.0 P100 BN100LA4
2,2	161	124	1.3	8.7	1960	F 202_8.7 S3 M3LA4	F 202_8.7 P100 BN100LA4
2,2	168	119	2.2	8.4	2830	F 252_8.4 S3 M3LA4	F 252_8.4 P100 BN100LA4
2,2	171	117	3.3	8.2	4720	F 312_8.2 S3 M3LA4	F 312_8.2 P100 BN100LA4
2,2	180	111	1.3	7.8	1920	F 202_7.8 S3 M3LA4	F 202_7.8 P100 BN100LA4
2,2	205	97	2.6	6.9	2710	F 252_6.9 S3 M3LA4	F 252_6.9 P100 BN100LA4
2,2	220	91	1.4	6.4	1840	F 202_6.4 S3 M3LA4	F 202_6.4 P100 BN100LA4
2,2	247	81	1.0	11.5	1470	F 102_11.5 S3 M3SA2	F 102_11.5 P90 BN90L2
2,2	254	79	1.8	11.2	1780	F 202_11.2 S3 M3SA2	F 202_11.2 P90 BN90L2
2,2	292	68	1.1	9.8	1410	F 102_9.8 S3 M3SA2	F 102_9.8 P90 BN90L2
2,2	326	61	2.0	8.7	1670	F 202_8.7 S3 M3SA2	F 202_8.7 P90 BN90L2
2,2	332	60	1.1	8.6	1370	F 102_8.6 S3 M3SA2	F 102_8.6 P90 BN90L2
2,2	364	55	2.1	7.8	1630	F 202_7.8 S3 M3SA2	F 202_7.8 P90 BN90L2
2,2	385	52	1.2	7.4	1330	F 102_7.4 S3 M3SA2	F 102_7.4 P90 BN90L2
2,2	444	45	2.3	6.4	1540	F 202_6.4 S3 M3SA2	F 202_6.4 P90 BN90L2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
3	1.8	14309	1.0	773.4	55000	F 904_773.4 S3 M3LB4	F 904_773.4 P100 BN100LB4
3	2.3	11574	1.2	625.6	55000	F 904_625.6 S3 M3LB4	F 904_625.6 P100 BN100LB4
3	2.4	10684	1.3	577.5	55000	F 904_577.5 S3 M3LB4	F 904_577.5 P100 BN100LB4
3	2.8	9168	1.5	495.6	55000	F 904_495.6 S3 M3LB4	F 904_495.6 P100 BN100LB4
3	2.9	9049	0.9	489.1	45000	F 804_489.1 S3 M3LB4	F 804_489.1 P100 BN100LB4
3	3.1	8353	1.0	451.5	45000	F 804_451.5 S3 M3LB4	F 804_451.5 P100 BN100LB4
3	3.1	8463	1.7	457.5	55000	F 904_457.5 S3 M3LB4	F 904_457.5 P100 BN100LB4
3	3.7	7088	1.1	383.2	45000	F 804_383.2 S3 M3LB4	F 804_383.2 P100 BN100LB4
3	3.9	6694	2.1	361.8	55000	F 904_361.8 S3 M3LB4	F 904_361.8 P100 BN100LB4
3	4.0	6543	1.2	353.7	45000	F 804_353.7 S3 M3LB4	F 804_353.7 P100 BN100LB4
3	4.6	5630	0.9	304.3	35000	F 704_304.3 S3 M3LB4	F 704_304.3 P100 BN100LB4
3	4.8	5489	1.5	296.7	45000	F 804_296.7 S3 M3LB4	F 804_296.7 P100 BN100LB4
3	4.8	5386	2.6	291.1	55000	F 904_291.1 S3 M3LB4	F 904_291.1 P100 BN100LB4
3	5.0	5197	1.0	280.9	35000	F 704_280.9 S3 M3LB4	F 704_280.9 P100 BN100LB4
3	5.1	5067	1.6	273.9	45000	F 804_273.9 S3 M3LB4	F 804_273.9 P100 BN100LB4
3	5.2	4971	2.8	268.7	55000	F 904_268.7 S3 M3LB4	F 904_268.7 P100 BN100LB4
3	6.0	4340	1.2	234.6	35000	F 704_234.6 S3 M3LB4	F 704_234.6 P100 BN100LB4
3	6.1	4281	3.3	231.4	55000	F 904_231.4 S3 M3LB4	F 904_231.4 P100 BN100LB4
3	6.5	4006	1.2	216.5	35000	F 704_216.5 S3 M3LB4	F 704_216.5 P100 BN100LB4
3	6.5	4042	2.0	218.5	45000	F 804_218.5 S3 M3LB4	F 804_218.5 P100 BN100LB4
3	6.6	3951	3.5	213.6	55000	F 904_213.6 S3 M3LB4	F 904_213.6 P100 BN100LB4
3	7.2	3706	1.3	196.0	35000	F 703_196.0 S3 M3LB4	F 703_196.0 P100 BN100LB4
3	7.6	3490	2.3	184.6	45000		F 803_184.6 P100 BN100LB4
3	7.8	3421	1.5	180.9	35000	F 703_180.9 S3 M3LB4	F 703_180.9 P100 BN100LB4
3	8.5	3151	1.6	166.7	35000	F 703_166.7 S3 M3LB4	F 703_166.7 P100 BN100LB4
3	8.7	3080	0.9	162.9	20000	F 603_162.9 S3 M3LB4	F 603_162.9 P100 BN100LB4
3	8.8	3029	2.6	160.2	45000		F 803_160.2 P100 BN100LB4
3	9.2	2909	1.7	153.8	35000	F 703_153.8 S3 M3LB4	F 703_153.8 P100 BN100LB4
3	9.4	2843	1.0	150.4	20000	F 603_150.4 S3 M3LB4	F 603_150.4 P100 BN100LB4
3	9.5	2796	2.9	147.9	45000		F 803_147.9 P100 BN100LB4
3	10.6	2514	2.0	133.0	35000	F 703_133.0 S3 M3LB4	F 703_133.0 P100 BN100LB4
3	10.6	2509	3.2	132.7	45000		F 803_132.7 P100 BN100LB4
3	10.8	2467	1.2	130.5	20000	F 603_130.5 S3 M3LB4	F 603_130.5 P100 BN100LB4
3	11.5	2320	2.2	122.7	35000	F 703_122.7 S3 M3LB4	F 703_122.7 P100 BN100LB4
3	11.5	2316	3.5	122.5	45000		F 803_122.5 P100 BN100LB4
3	11.7	2277	1.3	120.5	20000	F 603_120.5 S3 M3LB4	F 603_120.5 P100 BN100LB4
3	12.9	2072	2.4	109.6	35000	F 703_109.6 S3 M3LB4	F 703_109.6 P100 BN100LB4
3	13.3	2011	1.4	106.4	20000	F 603_106.4 S3 M3LB4	F 603_106.4 P100 BN100LB4
3	13.4	1987	0.9	105.1	12000	F 513_105.1 S3 M3LB4	F 513_105.1 P100 BN100LB4
3	13.9	1913	2.6	101.2	35000	F 703_101.2 S3 M3LB4	F 703_101.2 P100 BN100LB4
3	14.4	1857	1.6	98.2	20000	F 603_98.2 S3 M3LB4	F 603_98.2 P100 BN100LB4
3	15.2	1749	2.9	92.5	35000	F 703_92.5 S3 M3LB4	F 703_92.5 P100 BN100LB4
3	16.5	1614	3.1	85.4	35000	F 703_85.4 S3 M3LB4	F 703_85.4 P100 BN100LB4
3	16.8	1588	1.8	84.0	20000	F 603_84.0 S3 M3LB4	F 603_84.0 P100 BN100LB4
3	16.9	1574	1.1	83.2	12000	F 513_83.2 S3 M3LB4	F 513_83.2 P100 BN100LB4
3	18.2	1466	2.0	77.6	20000	F 603_77.6 S3 M3LB4	F 603_77.6 P100 BN100LB4
3	20.7	1291	2.2	68.3	20000	F 603_68.3 S3 M3LB4	F 603_68.3 P100 BN100LB4
3	21.4	1245	1.4	65.8	12000	F 513_65.8 S3 M3LB4	F 513_65.8 P100 BN100LB4
3	22.4	1192	2.4	63.0	20000	F 603_63.0 S3 M3LB4	F 603_63.0 P100 BN100LB4
3	23.4	1139	1.0	60.2	8500	F 413_60.2 S3 M3LB4	F 413_60.2 P100 BN100LB4
3	27.2	980	3.0	51.8	20000	F 603_51.8 S3 M3LB4	F 603_51.8 P100 BN100LB4
3	27.4	974	1.1	51.5	8500	F 413_51.5 S3 M3LB4	F 413_51.5 P100 BN100LB4
3	28.8	925	1.9	48.9	12000	F 513_48.9 S3 M3LB4	F 513_48.9 P100 BN100LB4
3	29.4	926	1.2	47.9	8500	F 412_47.9 S3 M3LB4	F 412_47.9 P100 BN100LB4
3	29.5	905	3.2	47.8	20000	F 603_47.8 S3 M3LB4	F 603_47.8 P100 BN100LB4
3	37	737	1.5	38.2	8500	F 412_38.2 S3 M3LB4	F 412_38.2 P100 BN100LB4
3	38	717	2.4	37.1	11800	F 512_37.1 S3 M3LB4	F 512_37.1 P100 BN100LB4
3	41	664	0.9	34.4	5810	F 312_34.4 S3 M3LB4	F 312_34.4 P100 BN100LB4
3	47	582	1.0	30.1	5770	F 312_30.1 S3 M3LB4	F 312_30.1 P100 BN100LB4
3	47	582	1.9	30.1	8290	F 412_30.1 S3 M3LB4	F 412_30.1 P100 BN100LB4
3	47	580	2.9	30.0	11200	F 512_30.0 S3 M3LB4	F 512_30.0 P100 BN100LB4
3	52	527	1.1	27.3	5720	F 312_27.3 S3 M3LB4	F 312_27.3 P100 BN100LB4
3	58	466	2.4	24.1	7960	F 412_24.1 S3 M3LB4	F 412_24.1 P100 BN100LB4
3	60	452	1.3	23.4	5620	F 312_23.4 S3 M3LB4	F 312_23.4 P100 BN100LB4
3	65	421	0.9	21.8	2800	F 252_21.8 S3 M3LB4	F 252_21.8 P100 BN100LB4
3	67	408	1.5	21.1	5540	F 312_21.1 S3 M3LB4	F 312_21.1 P100 BN100LB4
3	75	365	3.0	18.9	7560	F 412_18.9 S3 M3LB4	F 412_18.9 P100 BN100LB4
3	76	359	1.1	18.6	2830	F 252_18.6 S3 M3LB4	F 252_18.6 P100 BN100LB4
3	76	357	1.7	18.5	5430	F 312_18.5 S3 M3LB4	F 312_18.5 P100 BN100LB4
3	82	331	3.2	17.1	7400	F 412_17.1 S3 M3LB4	F 412_17.1 P100 BN100LB4
3	84	324	1.8	16.8	5340	F 312_16.8 S3 M3LB4	F 312_16.8 P100 BN100LB4
3	85	321	1.2	16.6	2830	F 252_16.6 S3 M3LB4	F 252_16.6 P100 BN100LB4
3	97	279	1.4	14.5	2810	F 252_14.5 S3 M3LB4	F 252_14.5 P100 BN100LB4
3	101	269	2.2	13.9	5150	F 312_13.9 S3 M3LB4	F 312_13.9 P100 BN100LB4
3	109	251	1.6	13.0	2790	F 252_13.0 S3 M3LB4	F 252_13.0 P100 BN100LB4
3	111	246	2.4	12.7	5060	F 312_12.7 S3 M3LB4	F 312_12.7 P100 BN100LB4
3	131	208	2.9	10.7	4880	F 312_10.7 S3 M3LB4	F 312_10.7 P100 BN100LB4
3	133	205	1.9	10.6	2730	F 252_10.6 S3 M3LB4	F 252_10.6 P100 BN100LB4
3	151	181	1.5	9.4	2710	F 252_9.4 S3 M3LB4	F 252_9.4 P100 BN100LB4
3	156	174	2.2	9.0	4650	F 312_9.0 S3 M3LB4	F 312_9.0 P100 BN100LB4
3	161	169	0.9	8.7	1820	F 202_8.7 S3 M3LB4	F 202_8.7 P100 BN100LB4
3	168	162	1.6	8.4	2660	F 252_8.4 S3 M3LB4	F 252_8.4 P100 BN100LB4
3	171	159	2.5	8.2	4550	F 312_8.2 S3 M3LB4	F 312_8.2 P100 BN100LB4
3	180	151	1.0	7.8	1790	F 202_7.8 S3 M3LB4	F 202_7.8 P100 BN100LB4
3	203	134	2.9	6.9	4360	F 312_6.9 S3 M3LB4	F 312_6.9 P100 BN100LB4
3	205	133	1.9	6.9	2560	F 252_6.9 S3 M3LB4	F 252_6.9 P100 BN100LB4
3	220	124	1.0	6.4	1730	F 202_6.4 S3 M3LB4	F 202_6.4 P100 BN100LB4
3	220	124	2.9	13.0	2510	F 252_13.0 S3 M3LA2	F 252_13.0 P100 BN100L2
3	255	107	1.3	11.2	1680	F 202_11.2 S3 M3LA2	F 202_11.2 P100 BN100L2
3	269	101	3.2	10.6	2410	F 252_10.6 S3 M3LA2	F 252_10.6 P100 BN100L2
3	306	89	3.0	9.4	2350	F 252_9.4 S3 M3LA2	F 252_9.4 P100 BN100L2
3	328	83	1.5	8.7	1600	F 202_8.7 S3 M3LA2	F 202_8.7 P100 BN100L2
3	341	80	3.3	8.4	2290	F 252_8.4 S3 M3LA2	F 252_8.4 P100 BN100L2
3	365	75	1.5	7.8	1560	F 202_7.8 S3 M3LA2	F 202_7.8 P100 BN100L2
3	446	61	1.7	6.4	1480	F 202_6.4 S3 M3LA2	F 202_6.4 P100 BN100L2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
4	2.2	15542	0.9	625.6	55000	F 904_625.6 S3 M3LC4	F 904_625.6 P112 BN112M4
4	2.4	14347	1.0	577.5	55000	F 904_577.5 S3 M3LC4	F 904_577.5 P112 BN112M4
4	2.8	12311	1.1	495.6	55000	F 904_495.6 S3 M3LC4	F 904_495.6 P112 BN112M4
4	3.1	11364	1.2	457.5	55000	F 904_457.5 S3 M3LC4	F 904_457.5 P112 BN112M4
4	3.9	8989	1.6	361.8	55000	F 904_361.8 S3 M3LC4	F 904_361.8 P112 BN112M4
4	4.0	8786	0.9	353.7	45000	F 804_353.7 S3 M3LC4	F 804_353.7 P112 BN112M4
4	4.7	7371	1.1	296.7	45000	F 804_296.7 S3 M3LC4	F 804_296.7 P112 BN112M4
4	4.8	7232	1.9	291.1	55000	F 904_291.1 S3 M3LC4	F 904_291.1 P112 BN112M4
4	5.1	6804	1.2	273.9	45000	F 804_273.9 S3 M3LC4	F 804_273.9 P112 BN112M4
4	5.2	6676	2.1	268.7	55000	F 904_268.7 S3 M3LC4	F 904_268.7 P112 BN112M4
4	6.0	5827	0.9	234.6	35000	F 704_234.6 S3 M3LC4	F 704_234.6 P112 BN112M4
4	6.1	5748	2.4	231.4	55000	F 904 231.4 S3 M3LC4	F 904_231.4 P112 BN112M4
4	6.4	5428	1.5	218.5	45000	F 804_218.5 S3 M3LC4	F 804_218.5 P112 BN112M4
4	6.5	5379	0.9	216.5	35000	F 704_216.5 S3 M3LC4	F 704_216.5 P112 BN112M4
4	6.6	5306	2.6	213.6	55000	F 904_213.6 S3 M3LC4	F 904_213.6 P112 BN112M4
4	7.1	4977	1.0	196.0	35000	F 703_196.0 S3 M3LC4	F 703_196.0 P112 BN112M4
4	7.2	4929	2.8	194.2	55000		F 903_194.2 P112 BN112M4
4	7.6	4687	1.7	184 6	45000		F 803_184.6 P112 BN112M4
4	7.7	4594	1.1	180.9	35000	F 703_180.9 S3 M3LC4	F 703_180.9 P112 BN112M4
4	7.8	4550	3.1	179.2	55000		F 903_179.2 P112 BN112M4
4	8.4	4232	1.2	166.7	35000	F 703_166.7 S3 M3LC4	F 703_166.7 P112 BN112M4
4	8.6	4134	3.4	162.8	55000		F 903_162.8 P112 BN112M4
4	8.7	4068	2.0	160.2	45000		F 803_160.2 P112 BN112M4
4	9.1	3906	1.3	153.8	35000	F 703_153.8 S3 M3LC4	F 703_153.8 P112 BN112M4
4	9.5	3755	2.1	147.9	45000		F 803_147.9 P112 BN112M4
4	10.5	3376	1.5	133.0	35000	F 703_133.0 S3 M3LC4	F 703_133.0 P112 BN112M4
4	10.6	3369	2.4	132.7	45000		F 803_132.7 P112 BN112M4
4	11.4	3116	1.6	122.7	35000	F 703_122.7 S3 M3LC4	F 703_122.7 P112 BN112M4
4	11.4	3110	2.6	122.5	45000		F 803_122.5 P112 BN112M4
4	11.6	3058	0.9	120.5	20000	F 603_120.5 S3 M3LC4	F 603_120.5 P112 BN112M4
4	12.3	2888	2.8	113.8	45000		F 803_113.8 P112 BN112M4
4	12.8	2783	1.8	109.6	35000	F 703_109.6 S3 M3LC4	F 703_109.6 P112 BN112M4
4	13.2	2701	1.1	106.4	20000	F 603_106.4 S3 M3LC4	F 603_106.4 P112 BN112M4
4	13.8	2569	1.9	101.2	35000	F 703_101.2 S3 M3LC4	F 703_101.2 P112 BN112M4
4	14.3	2493	1.2	98.2	20000	F 603_98.2 S3 M3LC4	F 603_98.2 P112 BN112M4
4	15.1	2348	2.1	92.5	35000	F 703_92.5 S3 M3LC4	F 703_92.5 P112 BN112M4
4	16.4	2168	2.3	85.4	35000	F 703_85.4 S3 M3LC4	F 703_85.4 P112 BN112M4
4	16.7	2133	1.4	84.0	20000	F 603_84.0 S3 M3LC4	F 603_84.0 P112 BN112M4
4	18.1	1969	1.5	77.6	20000	F 603_77.6 S3 M3LC4	F 603_77.6 P112 BN112M4
4	20.5	1734	1.7	68.3	20000	F 603_68.3 S3 M3LC4	F 603_68.3 P112 BN112M4
4	21.3	1672	1.1	65.8	12000	F 513_65.8 S3 M3LC4	F 513_65.8 P112 BN112M4
4	22.2	1600	1.8	63.0	20000	F 603_63.0 S3 M3LC4	F 603_63.0 P112 BN112M4
4	27.0	1316	2.2	51.8	20000	F 603_51.8 S3 M3LC4	F 603_51.8 P112 BN112M4
4	28.6	1242	1.4	48.9	11600	F 513_48.9 S3 M3LC4	F 513_48.9 P112 BN112M4
4	29.3	1215	2.4	47.8	20000	F 603_47.8 S3 M3LC4	F 603_47.8 P112 BN112M4
4	33	1069	2.7	42.1	20000	F 603_42.1 S3 M3LC4	F 603_42.1 P112 BN112M4
4	36	986	2.9	38.8	20000	F 603_38.8 S3 M3LC4	F 603_38.8 P112 BN112M4
4	37	990	1.1	38.2	7720	F 412_38.2 S3 M3LC4	F 412_38.2 P112 BN112M4
4	38	963	1.8	37.1	11200	F 512_37.1 S3 M3LC4	F 512_37.1 P112 BN112M4
4	46	781	1.4	30.1	7610	F 412_30.1 S3 M3LC4	F 412_30.1 P112 BN112M4
4	47	779	2.2	30.0	10700	F 512_30.0 S3 M3LC4	F 512_30.0 P112 BN112M4
4	55	645	2.9	25.4	20000	F 603_25.4 S3 M3LC4	F 603_25.4 P112 BN112M4
4	58	625	1.8	24.1	7420	F 412_24.1 S3 M3LC4	F 412_24.1 P112 BN112M4
4	59	617	2.7	23 8	10200	F 512_23.8 S3 M3LC4	F 512_23.8 P112 BN112M4
4	60	607	1.0	23.4	5040	F 312_23.4 S3 M3LC4	F 312_23.4 P112 BN112M4
4	60	596	3.2	23.5	20000	F 603_23.5 S3 M3LC4	F 603_23.5 P112 BN112M4
4	66	548	1.1	21.1	5020	F 312_21.1 S3 M3LC4	F 312_21.1 P112 BN112M4
4	74	490	2.2	18.9	7150	F 412_18.9 S3 M3LC4	F 412_18.9 P112 BN112M4
4	74	488	3.2	18.8	9640	F 512_18.8 S3 M3LC4	F 512_18.8 P112 BN112M4
4	76	479	1.3	18.5	4980	F 312_18.5 S3 M3LC4	F 312_18.5 P112 BN112M4
4	82	444	2.4	17.1	7030	F 412_17.1 S3 M3LC4	F 412_17.1 P112 BN112M4
4	83	436	1.4	16.8	4930	F 312_16.8 S3 M3LC4	F 312_16.8 P112 BN112M4
4	84	431	0.9	16.6	2380	F 252_16.6 S3 M3LC4	F 252_16.6 P112 BN112M4
4	96	379	2.7	14.6	6820	F 412_14.6 S3 M3LC4	F 412_14.6 P112 BN112M4
4	97	375	1.1	14.5	2420	F 252_14.5 S3 M3LC4	F 252_14.5 P112 BN112M4
4	100	362	1.7	13.9	4820	F 312_13.9 S3 M3LC4	F 312_13.9 P112 BN112M4
4	108	337	1.2	13.0	2440	F 252_13.0 S3 M3LC4	F 252_13.0 P112 BN112M4
4	110	330	1.8	12.7	4750	F 312_12.7 S3 M3LC4	F 312_12.7 P112 BN112M4
4	130	279	2.2	10.7	4620	F 312_10.7 S3 M3LC4	F 312_10.7 P112 BN112M4
4	130	279	3.2	10.8	6380	F 412_10.8 S3 M3LC4	F 412_10.8 P112 BN112M4
4	132	276	1.4	10.6	2450	F 252_10.6 S3 M3LC4	F 252_10.6 P112 BN112M4
4	150	243	1.1	9.4	2470	F 252_9.4 S3 M3LC4	F 252_9.4 P112 BN112M4
4	153	237	3.0	9.1	6160	F 412_9.1 S3 M3LC4	F 412_9.1 P112 BN112M4
4	155	234	1.7	9.0	4420	F 312_9.0 S3 M3LC4	F 312_9.0 P112 BN112M4
4	167	218	1.2	8.4	2450	F 252_8.4 S3 M3LC4	F 252_8.4 P112 BN112M4
4	170	213	1.8	8.2	4350	F 312_8.2 S3 M3LC4	F 312_8.2 P112 BN112M4
4	201	180	2.2	6.9	4200	F 312_6.9 S3 M3LC4	F 312_6.9 P112 BN112M4
4	204	178	1.4	6.9	2390	F 252_6.9 S3 M3LC4	F 252_6.9 P112 BN112M4
4	206	176	3.2	13 9	4200	F 312_13.9 S3 M3LB2	F 312_13.9 P100 BN100LB2
4	221	164	2.2	13.0	2340	F 252_13.0 S3 M3LB2	F 252_13.0 P112 BN112M2
4	226	161	3.4	12.7	4120	F 312_12.7 S3 M3LB2	F 312_12.7 P100 BN100LB2
4	255	142	1.0	11.2	1570	F 202_11.2 S3 M3LB2	F 202_11.2 P100 BN100LB2
4	270	134	2.4	10.6	2270	F 252_10.6 S3 M3LB2	F 252_10.6 P112 BN112M2
4	307	118	2.2	9.4	2230	F 252_9.4 S3 M3LB2	F 252_9.4 P112 BN112M2
4	318	114	3.4	9.0	3760	F 312_9.0 S3 M3LB2	F 312_9.0 P100 BN100LB2
4	329	110	1.1	8.7	1510	F 202_8.7 S3 M3LB2	F 202_8.7 P100 BN100LB2
4	342	106	2.4	8.4	2190	F 252_8.4 S3 M3LB2	F 252_8.4 P112 BN112M2
4	366	99	1.2	7.8	1480	F 202_7.8 S3 M3LB2	F 202_7.8 P100 BN100LB2
4	418	87	2.7	6.9	2090	F 252_6.9 S3 M3LB2	F 252_6.9 P112 BN112M2
4	448	81	1.3	6.4	1420	F 202_6.4 S3 M3LB2	F 202_6.4 P100 BN100LB2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
5,5	2.9	16458	0.9	495.6	55000	F 904_495.6 S4 M4SA4	F 904_495.6 P132 BN132S4
5,5	3.1	15192	0.9	457.5	55000	F 904_457.5 S4 M4SA4	F 904_457.5 P132 BN132S4
5,5	4.0	12017	1.2	361.8	55000	F 904_361.8 S4 M4SA4	F 904_361.8 P132 BN132S4
5,5	4.9	9668	1.4	291.1	55000	F 904_291.1 S4 M4SA4	F 904_291.1 P132 BN132S4
5,5	5.3	9096	0.9	273.9	45000	F 804_273.9 S4 M4SA4	F 804_273.9 P132 BN132S4
5,5	5.4	8925	1.6	268.7	55000	F 904_268.7 S4 M4SA4	F 904_268.7 P132 BN132S4
5,5	6.2	7685	1.8	231.4	55000	F 904_231.4 S4 M4SA4	F 904_231.4 P132 BN132S4
5,5	6.6	7256	1.1	218.5	45000	F 804_218.5 S4 M4SA4	F 804_218.5 P132 BN132S4
5,5	6.7	7093	2.0	213.6	55000	F 904_213.6 S4 M4SA4	F 904_213.6 P132 BN132S4
5,5	7.4	6590	2.1	194.2	55000	F 903_194.2 S4 M4SA4	F 903_194.2 P132 BN132S4
5,5	7.8	6266	1.3	184.6	45000	F 803_184.6 S4 M4SA4	F 803_184.6 P132 BN132S4
5,5	8.0	6083	2.3	179.2	55000	F 903_179.2 S4 M4SA4	F 903_179.2 P132 BN132S4
5,5	8.8	5527	2.5	162.8	55000	F 903_162.8 S4 M4SA4	F 903_162.8 P132 BN132S4
5,5	9.0	5438	1.5	160.2	45000	F 803_160.2 S4 M4SA4	F 803_160.2 P132 BN132S4
5,5	9.4	5222	1.0	153 8	35000	F 703_153.8 S4 M4SA4	F 703_153.8 P132 BN132S4
5,5	9.6	5101	2.7	150.3	55000	F 903_150.3 S4 M4SA4	F 903_150.3 P132 BN132S4
5,5	9.7	5020	1.6	147.9	45000	F 803_147.9 S4 M4SA4	F 803_147.9 P132 BN132S4
5,5	10.5	4661	3.0	137.3	55000	F 903_137.3 S4 M4SA4	F 903_137.3 P132 BN132S4
5,5	10.8	4513	1.1	133.0	35000	F 703_133.0 S4 M4SA4	F 703_133.0 P132 BN132S4
5,5	10.9	4504	1.8	132.7	45000	F 803_132.7 S4 M4SA4	F 803_132.7 P132 BN132S4
5,5	11.4	4303	3.3	126.8	55000	F 903_126.8 S4 M4SA4	F 903_126.8 P132 BN132S4
5,5	11.7	4165	1.2	122.7	35000	F 703_122.7 S4 M4SA4	F 703_122.7 P132 BN132S4
5,5	11.8	4157	1.9	122.5	45000	F 803_122.5 S4 M4SA4	F 803_122.5 P132 BN132S4
5,5	12.7	3861	2.1	113.8	45000	F 803_113.8 S4 M4SA4	F 803_113.8 P132 BN132S4
5,5	13.1	3720	1.3	109.6	35000	F 703_109.6 S4 M4SA4	F 703_109.6 P132 BN132S4
5,5	14.2	3434	1.5	101.2	35000	F 703_101.2 S4 M4SA4	F 703_101.2 P132 BN132S4
5,5	15.6	3139	1.6	92.5	35000	F 703_92.5 S4 M4SA4	F 703_92.5 P132 BN132S4
5,5	15.6	3133	2.6	92.3	45000	F 803_92.3 S4 M4SA4	F 803_92.3 P132 BN132S4
5,5	16.9	2898	1.7	85.4	35000	F 703_85.4 S4 M4SA4	F 703_85.4 P132 BN132S4
5,5	16.9	2892	2.8	85.2	45000	F 803_85.2 S4 M4SA4	F 803_85.2 P132 BN132S4
5,5	17.1	2852	1.0	84.0	20000	F 603_84.0 S4 M4SA4	F 603_84.0 P132 BN132S4
5,5	18.6	2632	1.1	77.6	20000	F 603_77.6 S4 M4SA4	F 603_77.6 P132 BN132S4
5,5	18.9	2588	3.1	76.3	45000	F 803_76.3 S4 M4SA4	F 803_76.3 P132 BN132S4
5,5	19.6	2497	2.0	73.6	35000	F 703_73.6 S4 M4SA4	F 703_73.6 P132 BN132S4
5,5	20.5	2389	3.3	70.4	45000	F 803_70.4 S4 M4SA4	F 803_70.4 P132 BN132S4
5,5	21.1	2317	1.3	68.3	20000	F 603_68.3 S4 M4SA4	F 603_68.3 P132 BN132S4
5,5	21.2	2305	2.2	67.9	35000	F 703_67.9 S4 M4SA4	F 703_67.9 P132 BN132S4
5,5	22.8	2139	1.4	63.0	20000	F 603_63.0 S4 M4SA4	F 603_63.0 P132 BN132S4
5,5	23.0	2121	2.4	62.5	35000	F 703_62.5 S4 M4SA4	F 703_62.5 P132 BN132S4
5,5	25.0	1958	2.6	57.7	35000	F 703_57.7 S4 M4SA4	F 703_57.7 P132 BN132S4
5,5	27.8	1759	1.6	51.8	20000	F 603_51.8 S4 M4SA4	F 603_51.8 P132 BN132S4
5,5	29.4	1660	1.1	48.9	10300	F 513_48.9 S4 M4SA4	F 513_48.9 P132 BN132S4
5,5	29.4	1662	3.0	49.0	35000	F 703_49.0 S4 M4SA4	F 703_49.0 P132 BN132S4
5,5	30	1624	1.8	47.8	20000	F 603_47.8 S4 M4SA4	F 603_47.8 P132 BN132S4
5,5	32	1534	3.3	45.2	34300	F 703_45.2 S4 M4SA4	F 703_45.2 P132 BN132S4
5,5	34	1428	2.0	42.1	20000	F 603_42.1 S4 M4SA4	F 603_42.1 P132 BN132S4
5,5	37	1319	2.2	38.8	20000	F 603_38.8 S4 M4SA4	F 603_38.8 P132 BN132S4
5,5	39	1288	1.3	37.1	10300	F 512_37.1 S4 M4SA4	F 512_37.1 P132 BN132S4
5,5	45	1089	2.7	32.1	20000	F 603_32.1 S4 M4SA4	F 603_32.1 P132 BN132S4
5,5	48	1044	1.1	30.1	6580	F 412_30.1 S4 M4SA4	F 412_30.1 P132 BN132S4
5,5	48	1041	1.6	30.0	9950	F 512_30.0 S4 M4SA4	F 512_30.0 P132 BN132S4
5,5	49	1005	2.9	29.6	20000	F 603_29.6 S4 M4SA4	F 603_29.6 P132 BN132S4
5,5	57	863	2.2	254	20000	F 603_25.4 S4 M4SA4	F 603_25.4 P132 BN132S4
5,5	60	836	1.3	24.1	6580	F 412_24.1 S4 M4SA4	F 412_24.1 P132 BN132S4
5,5	61	825	2.0	23.8	9560	F 512_23.8 S4 M4SA4	F 512_23.8 P132 BN132S4
5,5	61	796	2.4	23.5	20000	F 603_23.5 S4 M4SA4	F 603_23.5 P132 BN132S4
5,5	70	701	2.7	20.7	20000	F 603_20.7 S4 M4SA4	F 603_20.7 P132 BN132S4
5,5	76	655	1.7	18.9	6480	F 412_18.9 S4 M4SA4	F 412_18.9 P132 BN132S4
5,5	76	647	2.9	19.1	20000	F 603_19.1 S4 M4SA4	F 603_19.1 P132 BN132S4
5,5	77	653	2.4	18.8	9110	F 512_18.8 S4 M4SA4	F 512_18.8 P132 BN132S4
5,5	84	593	1.8	17.1	6410	F 412_17.1 S4 M4SA4	F 412_17.1 P132 BN132S4
5,5	98	507	2.0	14.6	6280	F 412_14.6 S4 M4SA4	F 412_14.6 P132 BN132S4
5,5	103	485	2.9	14.0	8520	F 512_14.0 S4 M4SA4	F 512_14.0 P132 BN132S4
5,5	130	385	3.5	11.1	8050	F 512_11.1 S4 M4SA4	F 512_11.1 P132 BN132S4
5,5	134	373	2.4	10.8	5970	F 412_10.8 S4 M4SA4	F 412_10.8 P132 BN132S4
5,5	158	317	2.2	9.1	5810	F 412_9.1 S4 M4SA4	F 412_9.1 P132 BN132S4
5,5	159	314	3.5	9.1	7590	F 512_9.1 S4 M4SA4	F 512_9.1 P132 BN132S4
5,5	198	253	3.3	14.6	5510	F 412_14.6 S4 M4SA2	F 412_14.6 P132 BN132SA2
5,5	214	233	2.7	6.7	5430	F 412_6.7 S4 M4SA4	F 412_6.7 P132 BN132S4
5,5	268	186	3.9	10.8	5120	F 412_10.8 S4 M4SA2	F 412_10.8 P132 BN132SA2
5,5	316	158	3.9	9.1	4930	F 412_9.1 S4 M4SA2	F 412_9.1 P132 BN132SA2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
7,5	4.0	16387	0.9	361.8	55000	F 904_361.8 S4 M4LA4	F 904_361.8 P132 BN132MA4
7,5	4.9	13184	1.1	291.1	55000	F 904_291.1 S4 M4LA4	F 904_291.1 P132 BN132MA4
7,5	5.4	12170	1.2	268.7	55000	F 904_268.7 S4 M4LA4	F 904_268.7 P132 BN132MA4
7,5	6.2	10479	1.3	231 4	55000	F 904_231.4 S4 M4LA4	F 904_231.4 P132 BN132MA4
7,5	6.7	9673	1.4	213.6	55000	F 904_213.6 S4 M4LA4	F 904_213.6 P132 BN132MA4
7,5	7.4	8986	1.6	194.2	55000	F 903_194.2 S4 M4LA4	F 903_194.2 P132 BN132MA4
7,5	7.8	8544	0.9	184.6	45000	F 803_184.6 S4 M4LA4	F 803_184.6 P132 BN132MA4
7,5	8.0	8295	1.7	179.2	55000	F 903_179.2 S4 M4LA4	F 903_179.2 P132 BN132MA4
7,5	8.8	7536	1.9	162.8	55000	F 903_162.8 S4 M4LA4	F 903_162.8 P132 BN132MA4
7,5	9.0	7416	1.1	160.2	45000	F 803_160.2 S4 M4LA4	F 803_160.2 P132 BN132MA4
7,5	9.6	6956	2.0	150.3	55000	F 903_150.3 S4 M4LA4	F 903_150.3 P132 BN132MA4
7,5	9.7	6845	1.2	147.9	45000	F 803_147.9 S4 M4LA4	F 803_147.9 P132 BN132MA4
7,5	10.5	6356	2.2	137 3	55000	F 903_137.3 S4 M4LA4	F 903_137.3 P132 BN132MA4
7,5	10.9	6141	1.3	132.7	45000	F 803_132.7 S4 M4LA4	F 803_132.7 P132 BN132MA4
7,5	11.4	5867	2.4	126.8	55000	F 903_126.8 S4 M4LA4	F 903_126.8 P132 BN132MA4
7,5	11.8	5669	1.4	122.5	45000	F 803_122.5 S4 M4LA4	F 803_122.5 P132 BN132MA4
7,5	12.7	5265	1.5	113.8	45000	F 803_113.8 S4 M4LA4	F 803_113.8 P132 BN132MA4
7,5	12.9	5181	2.7	111.9	55000	F 903_111.9 S4 M4LA4	F 903_111.9 P132 BN132MA4
7,5	13.1	5073	1.0	109.6	35000	F 703_109.6 S4 M4LA4	F 703_109.6 P132 BN132MA4
7,5	13.9	4783	2.9	103.3	55000	F 903_103.3 S4 M4LA4	F 903_103.3 P132 BN132MA4
7,5	14.2	4683	1.1	101.2	35000	F 703_101.2 S4 M4LA4	F 703_101.2 P132 BN132MA4
7,5	15.0	4432	3.2	95.8	55000	F 903_95.8 S4 M4LA4	F 903_95.8 P132 BN132MA4
7,5	15.6	4281	1.2	92.5	35000	F 703_92.5 S4 M4LA4	F 703_92.5 P132 BN132MA4
7,5	15.6	4272	1.9	92.3	45000	F 803_92.3 S4 M4LA4	F 803_92.3 P132 BN132MA4
7,5	16.3	4091	3.4	88.4	55000	F 903_88.4 S4 M4LA4	F 903_88.4 P132 BN132MA4
7,5	16.9	3952	1.3	85.4	35000	F 703_85.4 S4 M4LA4	F 703_85.4 P132 BN132MA4
7,5	16.9	3944	2.0	85 2	45000	F 803_85.2 S4 M4LA4	F 803_85.2 P132 BN132MA4
7,5	18.9	3529	2.3	76 3	45000	F 803_76.3 S4 M4LA4	F 803_76.3 P132 BN132MA4
7,5	19.6	3404	1.5	73.6	35000	F 703_73.6 S4 M4LA4	F 703_73.6 P132 BN132MA4
7,5	20.5	3258	2.5	70.4	44700	F 803_70.4 S4 M4LA4	F 803_70.4 P132 BN132MA4
7,5	21.1	3160	0.9	68.3	20000	F 603_68.3 S4 M4LA4	F 603_68.3 P132 BN132MA4
7,5	21.2	3143	1.6	67.9	35000	F 703_67.9 S4 M4LA4	F 703_67.9 P132 BN132MA4
7,5	22.8	2917	1.0	63.0	20000	F 603_63.0 S4 M4LA4	F 603_63.0 P132 BN132MA4
7,5	23.0	2893	1.7	62.5	35000	F 703_62.5 S4 M4LA4	F 703_62.5 P132 BN132MA4
7,5	23.4	2844	2.8	61.5	43500	F 803_61.5 S4 M4LA4	F 803_61.5 P132 BN132MA4
7,5	25.0	2670	1.9	57.7	34900	F 703_57.7 S4 M4LA4	F 703_57.7 P132 BN132MA4
7,5	25.4	2626	3.0	56.7	42600	F 803_56.7 S4 M4LA4	F 803_56.7 P132 BN132MA4
7,5	27.8	2399	1.2	51.8	20000	F 603_51.8 S4 M4LA4	F 603_51.8 P132 BN132MA4
7,5	29.4	2266	2.2	49.0	33800	F 703_49.0 S4 M4LA4	F 703_49.0 P132 BN132MA4
7,5	30	2214	1.3	47.8	20000	F 603_47.8 S4 M4LA4	F 603_47.8 P132 BN132MA4
7,5	32	2092	2.4	45.2	33200	F 703_45.2 S4 M4LA4	F 703_45.2 P132 BN132MA4
7,5	34	1948	1.5	42.1	20000	F 603_42.1 S4 M4LA4	F 603_42.1 P132 BN132MA4
7,5	37	1798	1.6	38.8	20000	F 603_38.8 S4 M4LA4	F 603_38.8 P132 BN132MA4
7,5	39	1756	1.0	37.1	9090	F 512_37.1 S4 M4LA4	F 512_37.1 P132 BN132MA4
7,5	45	1485	2.0	32.1	20000	F 603 32.1 S4 M4LA4	F 603_32.1 P132 BN132MA4
7,5	48	1420	1.2	30.0	9010	F 512_30.0 S4 M4LA4	F 512_30.0 P132 BN132MA4
7,5	49	1371	2.1	29.6	20000	F 603_29.6 S4 M4LA4	F 603_29.6 P132 BN132MA4
7,5	57	1176	1.6	25.4	20000	F 603_25.4 S4 M4LA4	F 603_25.4 P132 BN132MA4
7,5	59	1137	3.5	24.6	28800	F 703_24.6 S4 M4LA4	F 703_24.6 P132 BN132MA4
7,5	60	1140	1.0	24.1	5500	F 412_24.1 S4 M4LA4	F 412_24.1 P132 BN132MA4
7,5	61	1125	1.5	23.8	8810	F 512_23.8 S4 M4LA4	F 512_23.8 P132 BN132MA4
7,5	61	1086	1.7	23.5	20000	F 603_23.5 S4 M4LA4	F 603_23.5 P132 BN132MA4
7,5	70	956	2.0	20.7	20000	F 603_20.7 S4 M4LA4	F 603_20.7 P132 BN132MA4
7,5	76	893	1.2	18.9	5630	F 412_18.9 S4 M4LA4	F 412_18.9 P132 BN132MA4
7,5	76	883	2.2	19.1	20000	F 603_19.1 S4 M4LA4	F 603_19.1 P132 BN132MA4
7,5	77	890	1.7	18.8	8520	F 512_18.8 S4 M4LA4	F 512_18.8 P132 BN132MA4
7,5	84	809	1.3	17.1	5650	F 412_17.1 S4 M4LA4	F 412_17.1 P132 BN132MA4
7,5	92	726	2.6	15.7	20000	F 603_15.7 S4 M4LA4	F 603_15.7 P132 BN132MA4
7,5	98	692	1.5	14.6	5630	F 412_14.6 S4 M4LA4	F 412_14.6 P132 BN132MA4
7,5	99	670	2.8	14.5	20000	F 603_14.5 S4 M4LA4	F 603_14.5 P132 BN132MA4
7,5	103	661	2.1	14.0	8080	F 512_14.0 S4 M4LA4	F 512_14.0 P132 BN132MA4
7,5	113	589	3.2	12.7	19900	F 603_12.7 S4 M4LA4	F 603_12.7 P132 BN132MA4
7,5	123	544	3.5	11.8	19500	F 603_11.8 S4 M4LA4	F 603_11.8 P132 BN132MA4
7,5	130	525	2.5	11.1	7700	F 512_11.1 S4 M4LA4	F 512_11.1 P132 BN132MA4
7,5	134	509	1.8	10.8	5490	F 412_10.8 S4 M4LA4	F 412_10.8 P132 BN132MA4
7,5	158	432	1.6	9.1	5410	F 412_9.1 S4 M4LA4	F 412_9.1 P132 BN132MA4
7,5	159	428	2.6	9.1	7290	F 512_9.1 S4 M4LA4	F 512_9.1 P132 BN132MA4
7,5	200	340	2.9	7.2	6900	F 512_7.2 S4 M4LA4	F 512_7.2 P132 BN132MA4
7,5	214	318	2.0	6.7	5140	F 412_6.7 S4 M4LA4	F 412_6.7 P132 BN132MA4
7,5	269	253	2.9	10.8	4880	F 412_10.8 S4 M4SB2	F 412_10.8 P132 BN132SB2
7,5	317	214	2.8	9.1	4730	F 412_9.1 S4 M4SB2	F 412_9.1 P132 BN132SB2
7,5	431	158	3.3	6.7	4390	F 412_6.7 S4 M4SB2	F 412_6.7 P132 BN132SB2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
9,2	4.9	16172	0.9	291.1	55000	F 904_291.1 S4 M4LB4	F 904_291.1 P132 BN132MB4
9,2	5.4	14928	0.9	268.7	55000	F 904_268.7 S4 M4LB4	F 904_268.7 P132 BN132MB4
9,2	6.2	12854	1.1	231.4	55000	F 904_231.4 S4 M4LB4	F 904_231.4 P132 BN132MB4
9,2	6.7	11865	1.2	213.6	55000	F 904_213.6 S4 M4LB4	F 904_213.6 P132 BN132MB4
9,2	7.4	11023	1.3	194.2	55000	F 903_194.2 S4 M4LB4	F 903_194.2 P132 BN132MB4
9,2	8.0	10175	1.4	179.2	55000	F 903_179.2 S4 M4LB4	F 903_179.2 P132 BN132MB4
9,2	8.8	9244	1.5	162 8	55000	F 903_162.8 S4 M4LB4	F 903_162.8 P132 BN132MB4
9,2	9.6	8533	1.6	150.3	55000	F 903_150.3 S4 M4LB4	F 903_150.3 P132 BN132MB4
9,2	9.7	8397	1.0	147.9	45000	F 803_147.9 S4 M4LB4	F 803_147.9 P132 BN132MB4
9,2	10.5	7797	1.8	137.3	55000	F 903_137.3 S4 M4LB4	F 903_137.3 P132 BN132MB4
9,2	10.9	7533	1.1	132.7	45000	F 803_132.7 S4 M4LB4	F 803_132.7 P132 BN132MB4
9,2	11.4	7197	1.9	126.8	55000	F 903_126.8 S4 M4LB4	F 903_126.8 P132 BN132MB4
9,2	11.8	6954	1.2	122.5	45000	F 803_122.5 S4 M4LB4	F 803_122.5 P132 BN132MB4
9,2	12.7	6458	1.2	113.8	45000	F 803_113.8 S4 M4LB4	F 803_113.8 P132 BN132MB4
9,2	12.9	6355	2.2	111.9	55000	F 903_111.9 S4 M4LB4	F 903_111.9 P132 BN132MB4
9,2	13.9	5867	2.4	103.3	55000	F 903_103.3 S4 M4LB4	F 903_103.3 P132 BN132MB4
9,2	15.0	5437	2.6	95.8	55000	F 903_95.8 S4 M4LB4	F 903_95.8 P132 BN132MB4
9,2	15.6	5251	1.0	92.5	35000	F 703_92.5 S4 M4LB4	F 703_92.5 P132 BN132MB4
9,2	15.6	5241	1.5	92.3	45000	F 803_92.3 S4 M4LB4	F 803_92.3 P132 BN132MB4
9,2	16.3	5018	2.8	88.4	55000	F 903_88.4 S4 M4LB4	F 903_88.4 P132 BN132MB4
9,2	16.9	4848	1.0	85.4	35000	F 703_85.4 S4 M4LB4	F 703_85.4 P132 BN132MB4
9,2	16.9	4837	1.7	85.2	45000	F 803_85.2 S4 M4LB4	F 803_85.2 P132 BN132MB4
9,2	18.8	4352	3.2	76.7	55000	F 903_76.7 S4 M4LB4	F 903_76.7 P132 BN132MB4
9,2	18.9	4329	1.8	76.3	44100	F 803_76.3 S4 M4LB4	F 803_76.3 P132 BN132MB4
9,2	19.6	4176	1.2	73.6	35000	F 703_73.6 S4 M4LB4	F 703_73.6 P132 BN132MB4
9,2	20.4	4017	3.5	70.8	55000	F 903_70.8 S4 M4LB4	F 903_70.8 P132 BN132MB4
9,2	20.5	3996	2.0	70.4	43700	F 803_70.4 S4 M4LB4	F 803_70.4 P132 BN132MB4
9,2	21.2	3855	1.3	67.9	34600	F 703_67.9 S4 M4LB4	F 703_67.9 P132 BN132MB4
9,2	23.0	3548	1.4	62.5	34200	F 703_62.5 S4 M4LB4	F 703_62.5 P132 BN132MB4
9,2	23.4	3489	2.3	61.5	42200	F 803_61.5 S4 M4LB4	F 803_61.5 P132 BN132MB4
9,2	25.0	3275	1.5	57.7	33700	F 703_57.7 S4 M4LB4	F 703_57.7 P132 BN132MB4
9,2	25.4	3221	2.5	56.7	41400	F 803_56.7 S4 M4LB4	F 803_56.7 P132 BN132MB4
9,2	27.8	2942	1.0	51.8	20000	F 603_51.8 S4 M4LB4	F 603_51.8 P132 BN132MB4
9,2	29.4	2779	1.8	49.0	32800	F 703_49.0 S4 M4LB4	F 703_49.0 P132 BN132MB4
9,2	30	2716	1.1	47.8	20000	F 603_47.8 S4 M4LB4	F 603_47.8 P132 BN132MB4
9,2	32	2566	1.9	45.2	32300	F 703_45.2 S4 M4LB4	F 703_45.2 P132 BN132MB4
9,2	34	2389	1.2	42.1	20000	F 603_42.1 S4 M4LB4	F 603_42.1 P132 BN132MB4
9,2	37	2205	1.3	38.8	20000	F 603_38.8 S4 M4LB4	F 603_38.8 P132 BN132MB4
9,2	45	1821	1.6	32.1	20000	F 603_32.1 S4 M4LB4	F 603_32.1 P132 BN132MB4
9,2	48	1742	1.0	30.0	8210	F 512_30.0 S4 M4LB4	F 512_30.0 P132 BN132MB4
9,2	49	1681	1.7	29.6	20000	F 603_29.6 S4 M4LB4	F 603_29.6 P132 BN132MB4
9,2	57	1443	1.3	25.4	20000	F 603_25.4 S4 M4LB4	F 603_25.4 P132 BN132MB4
9,2	59	1394	2.9	24.6	28300	F 703_24.6 S4 M4LB4	F 703_24.6 P132 BN132MB4
9,2	61	1380	1.2	23.8	8170	F 512_23.8 S4 M4LB4	F 512_23.8 P132 BN132MB4
9,2	61	1332	1.4	23.5	20000	F 603_23.5 S4 M4LB4	F 603_23.5 P132 BN132MB4
9,2	64	1283	3.4	22.6	27800	F 703_22.6 S4 M4LB4	F 703_22.6 P132 BN132MB4
9,2	69	1185	3.4	20.9	27200	F 703_20.9 S4 M4LB4	F 703_20.9 P132 BN132MB4
9,2	70	1173	1.6	20.7	20000	F 603_20.7 S4 M4LB4	F 603_20.7 P132 BN132MB4
9,2	76	1096	1.0	18.9	4920	F 412_18.9 S4 M4LB4	F 412_18.9 P132 BN132MB4
9,2	76	1083	1.8	19.1	20000	F 603_19.1 S4 M4LB4	F 603_19.1 P132 BN132MB4
9,2	77	1092	1.4	18.8	8020	F 512_18.8 S4 M4LB4	F 512_18.8 P132 BN132MB4
9,2	84	993	1.1	17.1	5000	F 412_17.1 S4 M4LB4	F 412_17.1 P132 BN132MB4
9,2	92	890	2.1	15.7	20000	F 603_15.7 S4 M4LB4	F 603_15.7 P132 BN132MB4
9,2	98	848	1.2	14.6	5070	F 412_14.6 S4 M4LB4	F 412_14.6 P132 BN132MB4
9,2	99	822	2.3	14.5	20000	F 603_14.5 S4 M4LB4	F 603_14.5 P132 BN132MB4
9,2	103	811	1.8	14.0	7700	F 512_14.0 S4 M4LB4	F512_14.0 P132 BN132MB4
9,2	113	723	2.6	12.7	19700	F 603_12.7 S4 M4LB4	F 603_12.7 P132 BN132MB4
9,2	123	667	2.8	11.8	19300	F 603_11.8 S4 M4LB4	F 603_11.8 P132 BN132MB4
9,2	130	644	2.1	11.1	7400	F 512_11.1 S4 M4LB4	F 512_11.1 P132 BN132MB4
9,2	134	625	1.4	10.8	5080	F 412_10.8 S4 M4LB4	F 412_10.8 P132 BN132MB4
9,2	148	551	3.4	9.7	18400	F 603_9.7 S4 M4LB4	F 603_9.7 P132 BN132MB4
9,2	158	530	1.3	9.1	5080	F 412_9.1 S4 M4LB4	F 412_9.1 P132 BN132MB4
9,2	159	525	2.1	9.1	7040	F 512_9.1 S4 M4LB4	F 512_9.1 P132 BN132MB4
9,2	200	417	2.3	7.2	6700	F 512_7.2 S4 M4LB4	F 512_7.2 P132 BN132MB4
9,2	214	390	1.6	6.7	4890	F 412_6.7 S4 M4LB4	F 412_6.7 P132 BN132MB4
9,2	264	317	3.4	11.1	6340	F 512_11.1 S4 M4LA2	F 512_11.1 P132 BN132M2
9,2	272	307	2.4	10.8	4680	F 412_10.8 S4 M4LA2	F 412_10.8 P132 BN132M2
9,2	321	260	2.3	9.1	4560	F 412_9.1 S4 M4LA2	F 412_9.1 P132 BN132M2
9,2	324	258	3.5	9.1	5980	F 512_9.1 S4 M4LA2	F 512_9.1 P132 BN132M2
9,2	436	192	2.7	6.7	4270	F 412_6.7 S4 M4LA2	F 412_6.7 P132 BN132M2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
11	6.2	15369	0.9	231.4	55000	F 904_231.4 S4 M4LC4	F 904_231.4 P160 BN160MR4
11	6.7	14187	1.0	213.6	55000	F 904_213.6 S4 M4LC4	F 904_213.6 P160 BN160MR4
11	7.4	13179	1.1	194.2	55000	F 903_194.2 S4 M4LC4	F 903_194.2 P160 BN160MR4
11	8.0	12165	1.2	179.2	55000	F 903_179.2 S4 M4LC4	F 903_179.2 P160 BN160MR4
11	8.8	11053	1.3	162.8	55000	F 903_162.8 S4 M4LC4	F 903_162.8 P160 BN160MR4
11	9.6	10203	1.4	150.3	55000	F 903_150.3 S4 M4LC4	F 903_150.3 P160 BN160MR4
11	10.5	9323	1.5	137 3	55000	F 903_137.3 S4 M4LC4	F 903_137.3 P160 BN160MR4
11	11.4	8606	1.6	126.8	55000	F 903_126.8 S4 M4LC4	F 903_126.8 P160 BN160MR4
11	11.8	8314	1.0	122.5	45000	F 803_122.5 S4 M4LC4	F 803_122.5 P160 BN160MR4
11	12.7	7721	1.0	113.8	45000	F 803_113.8 S4 M4LC4	F 803_113.8 P160 BN160MR4
11	12.9	7599	1.8	111.9	55000	F 903_111.9 S4 M4LC4	F 903_111.9 P160 BN160MR4
11	13.9	7014	2.0	103.3	55000	F 903_103.3 S4 M4LC4	F 903_103.3 P160 BN160MR4
11	15.0	6500	2.2	95.8	55000	F 903_95.8 S4 M4LC4	F 903_95.8 P160 BN160MR4
11	15.6	6266	1.3	92.3	44100	F 803_92.3 S4 M4LC4	F 803_92.3 P160 BN160MR4
11	16.3	6000	2.3	88.4	55000	F 903_88.4 S4 M4LC4	F 903_88.4 P160 BN160MR4
11	16.9	5784	1.4	85.2	44000	F 803_85.2 S4 M4LC4	F 803_85.2 P160 BN160MR4
11	18.8	5203	2.7	76.7	55000	F 903_76.7 S4 M4LC4	F 903_76.7 P160 BN160MR4
11	18.9	5176	1.5	76.3	42800	F 803_76.3 S4 M4LC4	F 803_76.3 P160 BN160MR4
11	19.6	4993	1.0	73.6	33500	F 703_73.6 S4 M4LC4	F 703_73.6 P160 BN160MR4
11	20.4	4803	2.9	70.8	55000	F 903_70.8 S4 M4LC4	F 903_70.8 P160 BN160MR4
11	20.5	4778	1.7	70.4	42500	F 803_70.4 S4 M4LC4	F 803_70.4 P160 BN160MR4
11	21.2	4609	1.1	67.9	33100	F 703_67.9 S4 M4LC4	F 703_67.9 P160 BN160MR4
11	23.0	4243	1.2	62.5	32900	F 703_62.5 S4 M4LC4	F 703_62.5 P160 BN160MR4
11	23.2	4215	3.3	62.1	55000		F 903_62.1 P160 BN160MR4
11	23.4	4172	1.9	61.5	41100	F 803_61.5 S4 M4LC4	F 803_61.5 P160 BN160MR4
11	25.0	3916	1.3	57.7	32500	F 703_57.7 S4 M4LC4	F 703_57.7 P160 BN160MR4
11	25.4	3851	2.1	56.7	40800	F 803_56.7 S4 M4LC4	F 803_56.7 P160 BN160MR4
11	29.3	3333	2.4	49.1	39300		F 803_49.1 P160 BN160MR4
11	29.4	3323	1.5	49.0	31800	F 703_49.0 S4 M4LC4	F 703_49.0 P160 BN160MR4
11	32	3068	1.6	45.2	31300	F 703_45.2 S4 M4LC4	F 703_45.2 P160 BN160MR4
11	32	3077	2.6	45.3	38900	F 803_45.3 S4 M4LC4	F 803_45.3 P160 BN160MR4
11	34	2857	1.0	42.1	20000	F 603_42.1 S4 M4LC4	F 603_42.1 P160 BN160MR4
11	37	2637	1.1	38.8	20000	F 603_38.8 S4 M4LC4	F 603_38.8 P160 BN160MR4
11	38	2606	1.9	38.4	30500		F 703_38.4 P160 BN160MR4
11	41	2406	2.1	35.4	30000		F 703_35.4 P160 BN160MR4
11	45	2178	1.3	32.1	20000	F 603_32.1 S4 M4LC4	F 603_32.1 P160 BN160MR4
11	49	2010	1.4	29.6	20000	F 603_29.6 S4 M4LC4	F 603_29.6 P160 BN160MR4
11	52	1880	2.5	27.7	28500		F 703_27.7 P160 BN160MR4
11	57	1725	1.1	25.4	20000	F 603_25.4 S4 M4LC4	F 603_25.4 P160 BN160MR4
11	59	1667	2.4	24.6	27800	F 703_24.6 S4 M4LC4	F 703_24.6 P160 BN160MR4
11	61	1650	1.0	23.8	7500	F 512_23.8 S4 M4LC4	F 512_23.8 P160 BN160MR4
11	61	1593	1.2	23 5	20000	F 603_23.5 S4 M4LC4	F 603_23.5 P160 BN160MR4
11	64	1534	2.8	22.6	27300	F 703_22.6 S4 M4LC4	F 703_22.6 P160 BN160MR4
11	69	1416	2.8	20.9	26800	F 703_20.9 S4 M4LC4	F 703_20.9 P160 BN160MR4
11	70	1402	1.4	20.7	20000	F 603_20.7 S4 M4LC4	F 603_20.7 P160 BN160MR4
11	76	1294	1.5	19.1	20000	F 603_19.1 S4 M4LC4	F 603_19.1 P160 BN160MR4
11	77	1305	1.2	18.8	7490	F 512_18.8 S4 M4LC4	F 512_18.8 P160 BN160MR4
11	92	1064	1.8	15.7	20000	F 603_15.7 S4 M4LC4	F 603_15.7 P160 BN160MR4
11	98	1014	1.0	14.6	4490	F 412_14.6 S4 M4LC4	F 412_14.6 P160 BN160MR4
11	99	982	1.9	14.5	20000	F 603_14.5 S4 M4LC4	F 603_14.5 P160 BN160MR4
11	103	969	1.5	14.0	7310	F 512_14.0 S4 M4LC4	F 512_14.0 P160 BN160MR4
11	113	864	2.2	12.7	19400	F 603_12.7 S4 M4LC4	F 603_12.7 P160 BN160MR4
11	123	798	2.4	11.8	19000	F 603_11.8 S4 M4LC4	F 603_11.8 P160 BN160MR4
11	130	770	1.7	11.1	7090	F 512_11.1 S4 M4LC4	F 512_11.1 P160 BN160MR4
11	134	747	1.2	10.8	4650	F 412_10.8 S4 M4LC4	F 412_10.8 P160 BN160MR4
11	148	659	2.9	9.7	18200	F 603_9.7 S4 M4LC4	F 603_9.7 P160 BN160MR4
11	158	633	1.1	9.1	4720	F 412_9.1 S4 M4LC4	F 412_9.1 P160 BN160MR4
11	159	628	1.8	9.1	6770	F 512_9.1 S4 M4LC4	F 512_9.1 P160 BN160MR4
11	161	608	3.1	9.0	17800	F 603_9.0 S4 M4LC4	F 603_9.0 P160 BN160MR4
11	200	499	2.0	7.2	6490	F 512_7.2 S4 M4LC4	F 512_7.2 P160 BN160MR4
11	214	466	1.4	6.7	4630	F 412_6.7 S4 M4LC4	F 412_6.7 P160 BN160MR4
11	263	380	2.8	11.1	6170	F 512_11.1 S4 M4LC2	F 512_11.1 P160 BN160MR2
11	271	368	2.0	10.8	4460	F 412_10.8 S4 M4LC2	F 412_10.8 P160 BN160MR2
11	320	312	2.0	9.1	4380	F 412_9.1 S4 M4LC2	F 412_9.1 P160 BN160MR2
11	323	310	2.9	9.1	5840	F 512_9.1 S4 M4LC2	F 512_9.1 P160 BN160MR2
11	406	246	3.2	7.2	5510	F 512_7.2 S4 M4LC2	F 512_7.2 P160 BN160MR2
11	434	230	2.3	6.7	4130	F 412_6.7 S4 M4LC2	F 412_6.7 P160 BN160MR2

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
15	8.1	16362	0.9	179.2	55000	F 903_179.2 S5 M5SB4	F 903_179.2 P160 BN160L4
15	9.0	14866	0.9	162.8	55000	F 903_162.8 S5 M5SB4	F 903_162.8 P160 BN160L4
15	9.7	13722	1.0	150.3	55000	F 903_150.3 S5 M5SB4	F 903_150.3 P160 BN160L4
15	10.6	12539	1.1	137.3	55000	F 903_137.3 S5 M5SB4	F 903_137.3 P160 BN160L4
15	11.5	11574	1.2	126.8	55000	F 903_126.8 S5 M5SB4	F 903_126.8 P160 BN160L4
15	13.0	10220	1.4	111.9	55000	F 903_111.9 S5 M5SB4	F 903_111.9 P160 BN160L4
15	14.1	9434	1.5	103.3	55000	F 903_103.3 S5 M5SB4	F 903_103.3 P160 BN160L4
15	15.2	8743	1.6	95.8	55000	F 903_95.8 S5 M5SB4	F 903_95.8 P160 BN160L4
15	15.8	8427	0.9	92.3	41300	F 803_92.3 S5 M5SB4	F 803_92.3 P160 BN160L4
15	16.5	8070	1.7	88.4	55000	F 903_88.4 S5 M5SB4	F 903_88.4 P160 BN160L4
15	17.1	7779	1.0	85.2	40800	F 803_85.2 S5 M5SB4	F 803_85.2 P160 BN160L4
15	19.0	6998	2.0	76.7	55000	F 903_76.7 S5 M5SB4	F 903_76.7 P160 BN160L4
15	19.1	6961	1.1	76.3	40500	F 803_76.3 S5 M5SB4	F 803_76.3 P160 BN160L4
15	20.6	6460	2.2	70.8	55000	F 903_70.8 S5 M5SB4	F 903_70.8 P160 BN160L4
15	20.7	6426	1.2	70.4	39900	F 803_70.4 S5 M5SB4	F 803_70.4 P160 BN160L4
15	23.5	5669	2.5	62.1	55000	F 903_62.1 S5 M5SB4	F 903_62.1 P160 BN160L4
15	23.8	5611	1.4	61.5	38700	F 803_61.5 S5 M5SB4	F 803_61.5 P160 BN160L4
15	25.3	5267	0.9	57.7	29700	F 703_57.7 S5 M5SB4	F 703_57.7 P160 BN160L4
15	25.5	5233	2.7	57.3	55000	F 903_57.3 S5 M5SB4	F 903_57.3 P160 BN160L4
15	25.7	5179	1.5	56.7	38600	F 803_56.7 S5 M5SB4	F 803_56.7 P160 BN160L4
15	29.7	4483	1.8	49.1	37800	F 803_49.1 S5 M5SB4	F 803_49.1 P160 BN160L4
15	29.8	4470	1.1	49.0	29400	F 703_49.0 S5 M5SB4	F 703_49.0 P160 BN160L4
15	32	4126	1.2	45.2	29100	F 703_45.2 S5 M5SB4	F 703_45.2 P160 BN160L4
15	32	4138	1.9	45.3	37200	F 803_45.3 S5 M5SB4	F 803_45.3 P160 BN160L4
15	38	3505	1.4	38.4	28600	F 703_38.4 S5 M5SB4	F703_38.4 P160 BN160L4
15	41	3235	1.5	35.4	28200	F 703_35.4 S5 M5SB4	F 703_35.4 P160 BN160L4
15	46	2929	1.0	32.1	20000	F 603_32.1 S5 M5SB4	F 603_32.1 P160 BN160L4
15	49	2704	1.1	29 6	20000	F 603_29.6 S5 M5SB4	F 603_29.6 P160 BN160L4
15	53	2528	1.8	27.7	27100	F 703_27.7 S5 M5SB4	F 703_27.7 P160 BN160L4
15	58	2303	2.7	25.2	32900	F 803_25.2 S5 M5SB4	F 803_25.2 P160 BN160L4
15	59	2242	1.8	24.6	26500	F 703_24.6 S5 M5SB4	F 703_24.6 P160 BN160L4
15	65	2064	2.1	22.6	26200	F 703_22.6 S5 M5SB4	F 703_22.6 P160 BN160L4
15	66	2011	3.4	22.0	31900	F 803_22.0 S5 M5SB4	F 803_22.0 P160 BN160L4
15	70	1905	2.1	20.9	25700	F 703_20.9 S5 M5SB4	F 703_20.9 P160 BN160L4
15	71	1886	1.0	20.7	20000	F 603_20.7 S5 M5SB4	F 603_20.7 P160 BN160L4
15	72	1856	3.4	20.3	31300	F 803_20.3 S5 M5SB4	F 803_20.3 P160 BN160L4
15	77	1741	1.1	19.1	20000	F 603_19.1 S5 M5SB4	F 603_19.1 P160 BN160L4
15	82	1617	2.7	17.7	24900	F 703_17.7 S5 M5SB4	F 703_17.7 P160 BN160L4
15	89	1492	2.7	16.3	24400	F 703_16.3 S5 M5SB4	F 703_16.3 P160 BN160L4
15	93	1432	1.3	15.7	19600	F 603_15.7 S5 M5SB4	F 603_15.7 P160 BN160L4
15	101	1321	1.4	14.5	19200	F 603_14.5 S5 M5SB4	F 603_14.5 P160 BN160L4
15	105	1268	3.1	13.9	23600	F 703_13.9 S5 M5SB4	F 703_13.9 P160 BN160L4
15	114	1170	3.1	12.8	23100	F 703_12.8 S5 M5SB4	F 703_12.8 P160 BN160L4
15	115	1162	1.6	12.7	18800	F 603_12.7 S5 M5SB4	F 603_12.7 P160 BN160L4
15	124	1073	1.8	11.8	18400	F 603_11.8 S5 M5SB4	F 603_11.8 P160 BN160L4
15	135	991	3.5	10.9	22300	F 703_10.9 S5 M5SB4	F 703_10.9 P160 BN160L4
15	146	914	3.5	10.0	21800	F 703_10.0 S5 M5SB4	F 703_10.0 P160 BN160L4
15	150	886	2.1	9.7	17700	F 603_9.7 S5 M5SB4	F 603_9.7 P160 BN160L4
15	163	818	2.3	9.0	17300	F 603_9.0 S5 M5SB4	F 603_9.0 P160 BN160L4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
18,5	10.6	15456	0.9	137.3	55000	F 903_137.3 S5 M5LA4	F 903_137.3 P180 BN180M4
18,5	11.5	14267	1.0	126.8	55000	F 903_126.8 S5 M5LA4	F 903_126.8 P180 BN180M4
18,5	13.0	12598	1.1	111.9	55000	F 903_111.9 S5 M5LA4	F 903_111.9 P180 BN180M4
18,5	14.1	11629	1.2	103.3	55000	F 903_103.3 S5 M5LA4	F 903_103.3 P180 BN180M4
18,5	15.2	10777	1.3	95.8	55000	F 903_95.8 S5 M5LA4	F 903_95.8 P180 BN180M4
18,5	16.5	9948	1.4	88.4	55000	F 903_88.4 S5 M5LA4	F 903_88.4 P180 BN180M4
18,5	19.0	8626	1.6	76.7	55000	F 903_76.7 S5 M5LA4	F 903_76.7 P180 BN180M4
18,5	19.1	8581	0.9	76.3	38100	F 803_76.3 S5 M5LA4	F 803_76.3 P180 BN180M4
18,5	20.6	7963	1.8	70.8	55000	F 903_70.8 S5 M5LA4	F 903_70.8 P180 BN180M4
18,5	20.7	7921	1.0	70.4	37600	F 803_70.4 S5 M5LA4	F 803_70.4 P180 BN180M4
18,5	23.5	6989	2.0	62.1	55000	F 903_62.1 S5 M5LA4	F 903_62.1 P180 BN180M4
18,5	23.8	6916	1.1	61.5	37400	F 803_61.5 S5 M5LA4	F 803_61.5 P180 BN180M4
18,5	25.5	6451	2.2	57.3	55000	F 903_57.3 S5 M5LA4	F 903_57.3 P180 BN180M4
18,5	25.7	6384	1.3	56.7	36800	F 803_56.7 S5 M5LA4	F 803_56.7 P180 BN180M4
18,5	29.3	5615	2.5	49.9	55000	F 903_49.9 S5 M5LA4	F 903_49.9 P180 BN180M4
18,5	29.7	5526	1.4	49.1	35800	F 803_49.1 S5 M5LA4	F 803_49.1 P180 BN180M4
18,5	29.8	5510	0.9	49.0	27400	F 703_49.0 S5 M5LA4	F 703_49.0 P180 BN180M4
18,5	32	5183	2.7	46.1	55000	F 903_46.1 S5 M5LA4	F 903_46.1 P180 BN180M4
18,5	32	5101	1.6	45.3	35700	F 803_45.3 S5 M5LA4	F 803_45.3 P180 BN180M4
18,5	32	5086	1.0	45.2	27200	F 703_45.2 S5 M5LA4	F 703_45.2 P180 BN180M4
18,5	36	4558	3.1	40.5	53700		F 903_40.5 P180 BN180M4
18,5	37	4389	1.8	39.0	35000	F 803_39.0 S5 M5LA4	F 803_39.0 P180 BN180M4
18,5	38	4321	1.2	38.4	27000	F 703_38.4 S5 M5LA4	F 703_38.4 P180 BN180M4
18,5	39	4207	3.2	37.4	52700		F 903_37.4 P180 BN180M4
18,5	41	4051	2.0	36.0	34400	F 803_36.0 S5 M5LA4	F 803_36.0 P180 BN180M4
18,5	41	3988	1.3	35.4	26700	F 703_35.4 S5 M5LA4	F 703_35.4 P180 BN180M4
18,5	47	3517	2.3	31.3	33600		F 803_31.3 P180 BN180M4
18,5	49	3376	1.5	30.0	26300	F 703_30.0 S5 M5LA4	F 703_30.0 P180 BN180M4
18,5	51	3246	2.5	28.8	33000		F 803_28.8 P180 BN180M4
18,5	53	3116	1.5	27.7	26000	F 703_27.7 S5 M5LA4	F 703_27.7 P180 BN180M4
18,5	58	2839	2.2	25.2	32100	F 803_25.2 S5 M5LA4	F 803_25.2 P180 BN180M4
18,5	59	2764	1.4	24 6	25500	F 703_24.6 S5 M5LA4	F 703_24.6 P180 BN180M4
18,5	65	2544	1.7	22.6	25200	F 703_22.6 S5 M5LA4	F 703_22.6 P180 BN180M4
18,5	66	2479	2.7	22.0	31300	F 803_22.0 S5 M5LA4	F 803_22.0 P180 BN180M4
18,5	70	2348	1.7	20.9	24900	F 703_20.9 S5 M5LA4	F 703_20.9 P180 BN180M4
18,5	72	2288	2.7	20.3	30600	F 803_20.3 S5 M5LA4	F 803_20.3 P180 BN180M4
18,5	82	1993	2.2	17.7	24200	F 703_17.7 S5 M5LA4	F 703_17.7 P180 BN180M4
18,5	83	1981	3.4	17.6	29700	F 803_17.6 S5 M5LA4	F 803_17.6 P180 BN180M4
18,5	89	1839	2.2	16.3	23800	F 703_16.3 S5 M5LA4	F 703_16.3 P180 BN180M4
18,5	90	1828	3.4	16.2	29100	F 803_16.2 S5 M5LA4	F 803_16.2 P180 BN180M4
18,5	93	1765	1.1	15.7	18700	F 603_15.7 S5 M5LA4	F 603_15.7 P180 BN180M4
18,5	101	1629	1.2	14.5	18600	F 603_14.5 S5 M5LA4	F 603_14.5 P180 BN180M4
18,5	105	1563	2.5	13 9	23000	F 703_13.9 S5 M5LA4	F 703_13.9 P180 BN180M4
18,5	114	1442	2.5	12.8	22600	F 703_12.8 S5 M5LA4	F 703_12.8 P180 BN180M4
18,5	115	1433	1.3	12.7	18300	F 603_12.7 S5 M5LA4	F 603_12.7 P180 BN180M4
18,5	124	1323	1.4	11.8	17900	F 603_11.8 S5 M5LA4	F 603_11.8 P180 BN180M4
18,5	135	1221	2.8	10.9	21800	F 703_10.9 S5 M5LA4	F 703_10.9 P180 BN180M4
18,5	146	1127	2.8	10.0	21400	F 703_10.0 S5 M5LA4	F 703_10.0 P180 BN180M4
18,5	150	1092	1.7	9.7	17300	F 603_9.7 S5 M5LA4	F 603_9.7 P180 BN180M4
18,5	163	1008	1.9	9.0	16900	F 603_9.0 S5 M5LA4	F 603_9.0 P180 BN180M4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
22	13.1	14880	0.9	111.9	55000	F 903_111.9 P180 BN180L4
22	14.2	13735	1.0	103.3	55000	F 903_103.3 P180 BN180L4
22	15.4	12728	1.1	95.8	55000	F 903_95.8 P180 BN180L4
22	16.6	11749	1.2	88.4	55000	F 903_88.4 P180 BN180L4
22	19.2	10188	1.4	76.7	55000	F 903_76.7 P180 BN180L4
22	20.8	9405	1.5	70.8	55000	F 903_70.8 P180 BN180L4
22	23.7	8254	1.7	62.1	55000	F 903_62.1 P180 BN180L4
22	23.9	8169	1.0	61.5	35400	F 803_61.5 P180 BN180L4
22	25.6	7619	1.8	57.3	55000	F 903_57.3 P180 BN180L4
22	25.9	7541	1.1	56.7	35000	F 803_56.7 P180 BN180L4
22	29.5	6632	2.1	49.9	54400	F 903_49.9 P180 BN180L4
22	29.9	6527	1.2	49.1	34100	F 803_49.1 P180 BN180L4
22	32	6122	2.3	46.1	53500	F 903_46.1 P180 BN180L4
22	32	6025	1.3	45.3	34300	F 803_45.3 P180 BN180L4
22	36	5383	2.6	40.5	52300	F 903_40.5 P180 BN180L4
22	38	5184	1.5	39.0	33300	F 803_39.0 P180 BN180L4
22	38	5103	1.0	38.4	25400	F 703_38.4 P180 BN180L4
22	39	4969	2.7	37.4	51400	F 903_37.4 P180 BN180L4
22	41	4785	1.7	36.0	33200	F 803_36.0 P180 BN180L4
22	41	4711	1.1	35.4	25300	F 703_35.4 P180 BN180L4
22	47	4154	1.9	31.3	32600	F 803_31.3 P180 BN180L4
22	47	4120	3.2	31.0	49500	F 903_31.0 P180 BN180L4
22	49	3988	1.3	30.0	25100	F 703_30.0 P180 BN180L4
22	51	3834	2.1	28.8	32000	F 803_28.8 P180 BN180L4
22	51	3803	3.2	28.6	48600	F 903_28,6 P180 BN180L4
22	53	3681	1.3	27.7	24800	F 703_27.7 P180 BN180L4
22	58	3353	1.9	25.2	31300	F 803_25.2 P180 BN180L4
22	60	3264	1.2	24.6	24500	F 703_24.6 P180 BN180L4
22	65	3005	1.4	22.6	24300	F 703_22.6 P180 BN180L4
22	67	2928	2.3	22.0	30200	F 803_22.0 P180 BN180L4
22	70	2773	1.4	20.9	24000	F 703_20.9 P180 BN180L4
22	72	2703	2.3	20.3	29900	F 803_20.3 P180 BN180L4
22	83	2354	1.8	17.7	23400	F 703_17.7 P180 BN180L4
22	84	2339	2.9	17.6	29100	F 803_17.6 P180 BN180L4
22	90	2173	1.8	16.3	23100	F 703_16.3 P180 BN180L4
22	90	2159	2.9	16.2	28500	F 803_16.2 P180 BN180L4
22	106	1846	2.1	13.9	22400	F 703_13.9 P180 BN180L4
22	115	1704	2.1	12.8	22100	F 703_12.8 P180 BN180L4
22	115	1692	1.1	12.7	17700	F 603_12.7 P180 BN180L4
22	125	1562	1.2	11.8	17400	F 603_11.8 P180 BN180L4
22	135	1442	2.4	10.9	21400	F 703_10.9 P180 BN180L4
22	147	1331	2.4	10.0	21000	F 703_10.0 P180 BN180L4
22	151	1290	1.5	9.7	16900	F 603_9.7 P180 BN180L4
22	164	1191	1.6	9.0	16500	F 603_9.0 P180 BN180L4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
30	16.6	16022	0.9	88.4	52200	F 903_88.4 P200 BN200L4
30	19.2	13893	1.0	76.7	52400	F 903_76.7 P200 BN200L4
30	20.8	12825	1.1	70.8	52100	F 903_70.8 P200 BN200L4
30	23.7	11256	1.2	62.1	51800	F 903_62.1 P200 BN200L4
30	25.6	10390	1.3	57.3	51400	F 903_57.3 P200 BN200L4
30	29.5	9044	1.5	49.9	50800	F 903_49.9 P200 BN200L4
30	32	8348	1.7	46.1	50200	F 903_46.1 P200 BN200L4
30	32	8216	1.0	45.3	30900	F 803_45.3 P200 BN200L4
30	36	7341	1.9	40.5	49400	F 903_40.5 P200 BN200L4
30	38	7069	1.1	39.0	31000	F 803_39.0 P200 BN200L4
30	39	6776	2.0	37.4	48700	F 903_37.4 P200 BN200L4
30	41	6525	1.2	36.0	30600	F 803_36.0 P200 BN200L4
30	47	5664	1.4	31.3	29900	F 803_31.3 P200 BN200L4
30	47	5618	2.3	31.0	47300	F 903_31.0 P200 BN200L4
30	49	5438	0.9	30.0	22300	F 703_30.0 P200 BN200L4
30	51	5229	1.5	28.8	29500	F 803_28.8 P200 BN200L4
30	51	5186	2.3	28.6	46600	F 903_28.6 P200 BN200L4
30	53	5019	0.9	27.7	22200	F 703_27.7 P200 BN200L4
30	58	4601	2.6	25.4	45500	F 903_25.4 P200 BN200L4
30	58	4572	1.2	25.2	29500	F 803_25.2 P200 BN200L4
30	66	4039	3.0	22.3	44400	F 903_22.3 P200 BN200L4
30	67	3992	1.7	22.0	29000	F 803_22.0 P200 BN200L4
30	71	3728	3.0	20.6	43600	F 903_20.6 P200 BN200L4
30	72	3685	1.7	20.3	28500	F 803_20.3 P200 BN200L4
30	83	3209	1.4	17.7	21800	F 703_17.7 P200 BN200L4
30	84	3190	2.1	17.6	27900	F 803_17.6 P200 BN200L4
30	90	2963	1.4	16.3	21500	F 703_16.3 P200 BN200L4
30	90	2945	2.1	16.2	27400	F 803_16.2 P200 BN200L4
30	105	2534	2.7	14.0	26700	F 803_14.0 P200 BN200L4
30	106	2517	1.5	13.9	21100	F 703_13.9 P200 BN200L4
30	114	2339	2.7	12.9	26200	F 803_12.9 P200 BN200L4
30	115	2323	1.5	12.8	20900	F 703_12.8 P200 BN200L4
30	135	1967	1.8	10.9	20300	F 703_10.9 P200 BN200L4
30	142	1874	3.0	10.3	24900	F 803_10.3 P200 BN200L4
30	147	1815	1.8	10.0	20000	F 703_10.0 P200 BN200L4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
37	20.9	15710	0.9	70.8	47600	F 903_70.8 P225 BN225S4
37	25.8	12728	1.1	57.3	47700	F 903_57.3 P225 BN225S4
37	29.7	11079	1.3	49.9	47600	F 903_49.9 P225 BN225S4
37	32	10227	1.4	46.1	47200	F 903_46.1 P225 BN225S4
37	37	8993	1.6	40.5	46800	F 903_40.5 P225 BN225S4
37	38	8659	0.9	39.0	28500	F 803_39.0 P225 BN225S4
37	40	8301	1.6	37.4	46300	F 903_37.4 P225 BN225S4
37	41	7993	1.0	36.0	28300	F 803_36.0 P225 BN225S4
37	47	6939	1.2	31.3	28400	F 803_31.3 P225 BN225S4
37	48	6882	1.9	31.0	45300	F 903_31.0 P225 BN225S4
37	51	6405	1.2	28.8	28100	F 803_28.8 P225 BN225S4
37	52	6353	1.9	28 6	44700	F 903_28.6 P225 BN225S4
37	58	5637	2.1	25.4	43900	F 903_25.4 P225 BN225S4
37	59	5601	1.1	25.2	27800	F 803_25.2 P225 BN225S4
37	66	4947	2.4	22.3	43000	F 903_22.3 P225 BN225S4
37	67	4891	1.1	22.0	27600	F 803_22.0 P225 BN225S4
37	72	4567	2.5	20.6	42300	F 903_20.6 P225 BN225S4
37	73	4515	1.1	20.3	27200	F 803_20.3 P225 BN225S4
37	83	3975	2.8	17.9	41200	F 903_17.9 P225 BN225S4
37	84	3908	1.7	17.6	26800	F 803_17.6 P225 BN225S4
37	90	3669	2.8	16.5	40500	F 903_16.5 P225 BN225S4
37	91	3607	1.7	16.2	26300	F 803_16.2 P225 BN225S4
37	102	3226	3.1	14.5	39500	F 903_14.5 P225 BN225S4
37	106	3104	2.2	14.0	25800	F 803_14.0 P225 BN225S4
37	110	2978	3.1	13.4	38700	F 903_13.4 P225 BN225S4
37	115	2865	2.2	12.9	25300	F 803_12.9 P225 BN225S4
37	132	2487	2.4	11.2	24500	F 803_11.2 P225 BN225S4
37	143	2296	2.4	10.3	24300	F 803_10.3 P225 BN225S4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
45	32	12438	1.1	46.1	43900	F 903_46.1 P225 BN225M4
45	37	10937	1.3	40.5	43900	F 903_40.5 P225 BN225M4
45	40	10096	1.3	37.4	43600	F 903_37.4 P225 BN225M4
45	47	8439	0.9	31.3	26100	F 803_31.3 P225 BN225M4
45	48	8370	1.6	31.0	43100	F 903_31.0 P225 BN225M4
45	51	7790	1.0	28.8	26000	F 803_28.8 P225 BN225M4
45	52	7726	1.6	28.6	42600	F 903_28.6 P225 BN225M4
45	58	6855	1.8	25.4	42000	F 903_25.4 P225 BN225M4
45	66	6017	2.0	22.3	41400	F 903_22.3 P225 BN225M4
45	67	5948	1.1	22.0	26000	F 803_22.0 P225 BN225M4
45	72	5554	2.0	20.6	40800	F 903_20.6 P225 BN225M4
45	73	5491	1.1	20.3	25700	F 803_20.3 P225 BN225M4
45	83	4834	2.3	17.9	39900	F 903_17.9 P225 BN225M4
45	84	4753	1.4	17.6	25500	F 803_17.6 P225 BN225M4
45	90	4463	2.3	16.5	39300	F 903_16.5 P225 BN225M4
45	91	4387	1.4	16.2	25200	F 803_16.2 P225 BN225M4
45	102	3924	2.5	14.5	38400	F 903_14.5 P225 BN225M4
45	106	3775	1.8	14.0	24800	F 803_14.0 P225 BN225M4
45	110	3622	2.6	13.4	37800	F 903_13.4 P225 BN225M4
45	115	3484	1.8	12.9	24100	F 803_12.9 P225 BN225M4
45	132	3025	1.5	11.2	24000	F 803_11.2 P225 BN225M4
45	133	3003	2.9	11.1	36400	F 903_11.1 P225 BN225M4
45	143	2792	2.0	10.3	23500	F 803_10.3 P225 BN225M4

0,09	0,12	0,18	0,25	0,37	0,55	0,75	1,1
1,5	2,2	3,0	4,0	5,5	7,5	9,2	11
15	18,5	22	30	37	45	55

Мощность двигателя, кВт	Обороты на выходе, об/мин	Крутящий момент, Нм	Сервис фактор, Sf	Передаточное отношение редуктора, i	Радиальная нагрузка, Н
55	32	15202	0.9	46.1	39700	F 903_46.1 P250 BN250M4
55	37	13367	1.0	40.5	40300	F 903_40.5 P250 BN250M4
55	40	12339	1.1	37.4	40200	F 903_37.4 P250 BN250M4
55	48	10230	1.3	31.0	40300	F 903_31.0 P250 BN250M4
55	52	9443	1.3	28.6	40100	F 903_28.6 P250 BN250M4
55	58	8379	1.4	25.4	39700	F 903_25.4 P250 BN250M4
55	66	7354	1.6	22.3	39400	F 903_22.3 P250 BN250M4
55	72	6788	1.7	20.6	38900	F 903_20.6 P250 BN250M4
55	83	5909	1.9	17.9	38300	F 903_17,9 P250 BN250M4
55	90	5454	1.9	16.5	37800	F 903_16.5 P250 BN250M4
55	102	4796	2.1	14.5	37100	F 903_14.5 P250 BN250M4
55	110	4427	2.1	13.4	36600	F 903_13.4 P250 BN250M4
55	133	3671	2.4	11.1	35400	F 903_11.1 P250 BN250M4
55	144	3388	2.4	10.3	34800	F 903_10.3 P250 BN250M4

Масла и смазка

Редукторы Bonfiglioli имеют комбинированную систему смазки с использованием методов погружения и разбрызгивания.
Редукторы F 10 … F 41 поставляются изготовителем и авторизованными дилерами заправленными маслом. В комплект
поставки редукторов этих типоразмеров в исполнении с фланцем для двигателя IEC входит пробка-сапун, которая перед
началом эксплуатации редуктора устанавливается пользователем на место транспортной заглушки.
Редукторы типоразмеров F 51 и выше в стандартном исполнении поставляются без масла. Масло в такие редукторы
заливается пользователями перед началом эксплуатации редуктора.
В приведенных ниже таблицах указано расположение маслозаливных и сливных пробок (при их наличии) в картере редуктора,
а также необходимое количество масла в зависимости от рабочего положения редуктора.
Приведенные в таблице данные о заправочных емкостях носят справочный характер; окончательный контроль
уровня масла производится пользователем через смотровое окно в корпусе редуктора или при помощи
маслоизмерительного щупа (при его наличии).
В некоторых случаях может наблюдаться значительное отличие реально требуемого количества масла от указанного
в таблице.
При отсутствии посторонних примесей долговечное масло на полигликолевой основе, заливаемое в редуктор на заводе, не
требует замены в течение всего периода эксплуатации изделия.
Функционирование редукторов допустимо при температурах между -20°C и +40°C.
Однако, при температурах между -20°C и -10°C запуск возможен, только если оборудование было постепенно и равномерно
прогрето, либо вначале функционировало со снятой нагрузкой.
Возможно подключение нагрузки к выходному валу, при достижении редуктором температуры -10°C, или выше.

Вязкость масла

Вязкость масла по ISO VG
	Та < -20°	-20° < Та < 10°	0° < Та < 30°	20° < Та < 40°	Та > 40°
Mineral ЕР	(*)	150	320	460	460 (*)
РАО ЕР	(*)	150	220	320	460 (*)
PAG	(*)	150	220	320	460 (*)

PAO Полиальфаолефиновое синтетическое масло
PAG Синтетическое масло на полигликольевой основе
(*) обратитесь в службу технической поддержки Bonfiglioli

Количество масла, литров

Габарит редуктора	Монтажные позиции
	H1	H2	H3	H4	H5	H6

F 10 2	1.1	1.2	0.65	0.65	0.80	0.90
F 20 2	1.9	1.6	0.85	1.1	1.2	1.5
F 20 3	2.0	1.9	1.3	1.3	1.7	1.8
F 25 2	2.1	2.0	2.0	1.5	2.4	2.0
F 25 3	2.0	1.9	1.9	1.5	2.3	2.0
F 25 4	2.2	2.2	2.3	1.6	2.9	2.3
F 31 2	2.7	2.7	1.6	1.6	2.6	2.6
F 31 3	2.6	2.6	1.5	1.6	2.5	2.6
F 31 4	2.8	2.9	1.9	1.7	3.1	2.9
F 41 2	5.1	5.8	3.0	3.3	4.9	4.7
F 41 3	5.0	5.6	4.6	3.1	4.8	4.6
F 41 4	5.6	6.3	4.8	3.8	5.7	5.1
F 51 2	10	7.4	8.4	5.5	9.2	8.2
F 51 3	9.7	7.1	10	5.2	8.9	8.2
F 51 4	9.7	7.4	8.1	5.1	9.9	7.4
F 60 3	15	11	7.8	11	15	11
F 60 4	15	12	8.0	11	15	11
F 70 3	21	20	10	16	20	16
F 70 4	22	18	10	16	25	16
F 80 3	38	32	15	27	41	31
F 80 4	38	34	16	29	48	31
F 90 3	65	55	28	50	75	55
F 90 4	66	55	29	50	85	55

Смазка на весть срок эксплуатации

Рекомендуемые/допущенные к применению марки масел

• Shell: Tivela S220
• Shell: Tivela S320
• AGIP: Telium VSF 220
• AGIP: Telium VSF 320
• Klüber Lubrication: Klübersinth GH6 220
• Klüber Lubrication: Klübersinth GH6 320
• Mobil: Glygoyle HE 320
• Mobil: DTE FM 460
• Castrol: Alphasyn PG 220
• Castrol: Alphasyn PG 320
• Total: Carter SY 220
• Total: Carter SY 320
• Klüber Lubrication: Klübersinth UN1 6-460 (для пищевой отрасли)
• Shell: Cassida Fluid WG 460 (для пищевой отрасли)

Консистентные смазки

• Klüber Lubrication: Asonic GHY 72 (для подшипников)
• Shell: TVX Compound B (для зубчатых передач)
• Shell: Tivela GL 00 (заменитель для зубчатых передач)
• Klüber Lubrication: Klüberpaste 46 MR 401 (для облегчения сочленения деталей цилиндрической формы)
• ITP: Fluorocarbon gel 880 (для смазки рабочих кромок сальников)

Поиск по сайту

Пользователи сайта

Плоский цилиндрический мотор-редуктор серии F (BONFIGLIOLI)

Общая информация

Габаритные размеры и масса

Тех. Характеристики

Масла и смазка

Скачать
